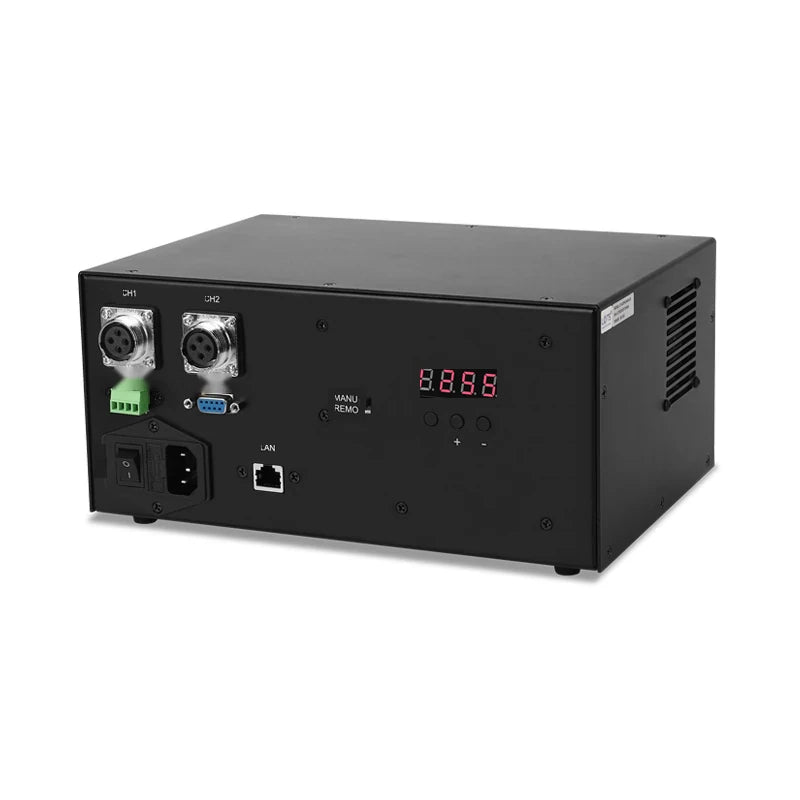

Representative photo of this series
Light controllers
High power constant current controller, 4 ch, max. output power 40 W per channel (LS-CTL-0048)
Model LS-CTL-0048
- Channels4
- InputAC 100-240V
- ControlRS232/LAN
- OutputConstant current
$439.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The best matched controller for line scan light. Constant current dimming, no flicker, automatically adapt the best adjustment curve. 7.5KHz highest trigger frequency.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0048 |
|---|---|
| Constant on / off switch | Constant on / off switch by TS switch |
| Product | High power constant current controller |
| Control | Manual encoder knob adjustment, PC remote adjustment |
Interfaces and I/O
| Communication mode | RS232/LAN |
|---|
Light
| Luminance adjustment level | 256 level |
|---|---|
| Luminance adjustment method | Manual encoder knob adjustment, PC remote adjustment |
Environment and compliance
| Operating environment | Humidity 20%-85%RH (non-condensing), temperature 0°C-50°C |
|---|---|
| Storage environment | Humidity 20%-85%RH (non-condensing), temperature 0°C-60°C |
Computing
| Memory function | Data saving automatically when power off |
|---|
Electrical
| Input voltage | AC 100-240V |
|---|---|
| Baud rate | 9600bps |
| Drive mode | Constant current mode |
| External trigger voltage | High level 5-24V valid |
| External trigger frequency | Determined by the external trigger signal; with 50% duty ratio the max. effective trigger frequency is 7.5KHz |
| External trigger delay time | 10us |
| Extenal trigger voltage | 5-24V |
| Max. total power | 60W |
| One way max. output power | 40W |
| Number of channels | 4 |
Mechanical
| Mounting holes | 4-M3 (the 4 feet can be removed and used as mounting holes) |
|---|---|
| Mounting | DIN rail mount |
| Shipping weight | 0.50 kg |
