MAPC analog power supply controller, 1 ch
LS-CTL-0508
- Channels 1
- Output 0-24 V
- Input AC100-240V 50/60Hz
$139.00
Ships in 2-3 weeks
Light controllers
Light controllers
Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.
Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers
Products
MAPC analog power supply controller, 2 ch
LS-CTL-0509
- Channels 2
- Output 0-24 V
- Input AC100-240V 50/60Hz
$169.00
Ships in 2-3 weeks
HAPC analog power supply controller (high power), 1 ch
LS-CTL-0453
- Channels 1
- Output 0-24 V
- Input AC100-240V 50/60Hz
$239.00
Ships in 2-3 weeks
Analog controller, LS-CTL-S100 series, 1 ch, 20 W
LS-CTL-0510
- Channels 1
- Output 24V
- Input AC100-240V 50/60Hz
$149.00
Ships in 2-3 weeks
HAPC analog power supply controller (high power), 2 ch
LS-CTL-0454
- Channels 2
- Output 0-24 V
- Input AC100-240V 50/60Hz
$269.00
Ships in 2-3 weeks
HAPC analog power supply controller (high power), 1 ch
LS-CTL-0452
- Channels 1
- Output 0-24 V
- Input AC100-240V 50/60Hz
$239.00
Ships in 2-3 weeks
Digital controller, LS-CTL-S69 series, 8 ch, 120 W
LS-CTL-0375
- Channels 8
- Output 24V
- Input AC100-240V 50/60Hz
$479.00
Ships in 2-3 weeks
HAPC analog power supply controller (high power), 1 ch
LS-CTL-0455
- Channels 1
- Output 0-24 V
- Input AC100-240V 50/60Hz
$229.00
Ships in 2-3 weeks
Third generation four channel mini digital controller, 4 ch, 72 W
LS-CTL-0371
- Channels 4
- Output 24V
- Total output 72W
$459.00
Ships in 2-3 weeks

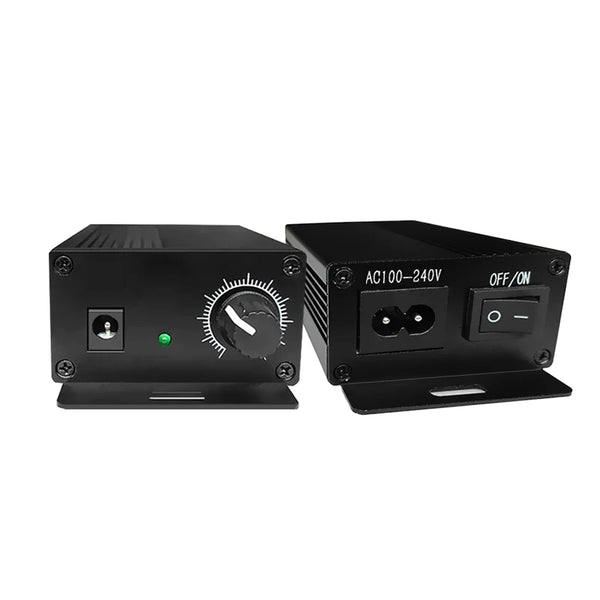

Common controller, single channel analog, 1 ch, 30 W
LS-CTL-0451
- Channels 1
- Output 16-24V
- Total output 30 W
$159.00
Ships in 2-3 weeks
Digital controller box, 4 ch, 80 W
LS-CTL-0366
- Channels 4
- Output 24V
- Input DC 24V
$469.00
Ships in 2-3 weeks
DPC digital controller, 12 ch
LS-CTL-0362
- Channels 12
- Output 16-24V
- Input AC100-240V 50/60Hz
$559.00
Ships in 2-3 weeks

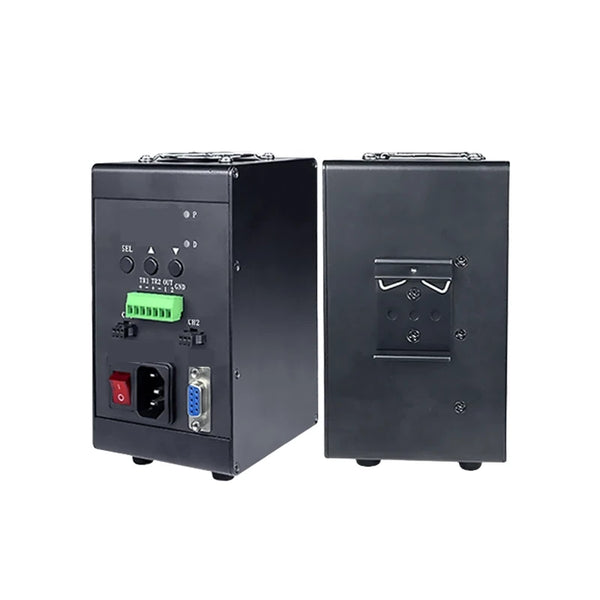

Two channel stroboscopic brightening digital controller, 2 ch, 80 W
LS-CTL-0379
- Channels 2
- Output DC 48V (moment)
- Total output 80 W
$379.00
Ships in 2-3 weeks
DPC digital controller, 8 ch
LS-CTL-0361
- Channels 8
- Output 16-24V
- Input AC100-240V 50/60Hz
$429.00
Ships in 2-3 weeks
DPC digital controller, 8 ch
LS-CTL-0353
- Channels 8
- Output 16-24V
- Input AC100-240V 50/60Hz
$429.00
Ships in 2-3 weeks
DPC digital controller, 6 ch
LS-CTL-0356
- Channels 6
- Output 16-24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
DPC digital controller, 4 ch, 165 x 136 mm, 16-24V
LS-CTL-0363
- Channels 4
- Output 16-24V
- Input AC100-240V 50/60Hz
$329.00
Ships in 2-3 weeks
DPC digital controller, 8 ch
LS-CTL-0357
- Channels 8
- Output 16-24V
- Input AC100-240V 50/60Hz
$429.00
Ships in 2-3 weeks
DPC digital controller, 6 ch
LS-CTL-0352
- Channels 6
- Output 16-24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
DPC digital controller, 4 ch, 100 x 158 mm, 16-24V
LS-CTL-0359
- Channels 4
- Output 16-24V
- Input AC100-240V 50/60Hz
$289.00
Ships in 2-3 weeks
DPC digital controller, 6 ch
LS-CTL-0360
- Channels 6
- Output 16-24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
DPC digital controller, 4 ch, 16-24V
LS-CTL-0365
- Channels 4
- Output 16-24V
- Input DC24V
$289.00
Ships in 2-3 weeks
DPC digital controller, 4 ch, 100 x 158 mm, 5-24V
LS-CTL-0348
- Channels 4
- Output 5-24V
- Input AC100-240V 50/60Hz
$289.00
Ships in 2-3 weeks
DPC digital controller, 4 ch, 100 x 158 mm, 16-24V
LS-CTL-0355
- Channels 4
- Output 16-24V
- Input AC100-240V 50/60Hz
$289.00
Ships in 2-3 weeks
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
 LS-CTL-0508MAPC analog power supply controller, 1 ch
| 1 | 0-24 V | AC100-240V 50/60Hz | 0.7A | Stepless knob | $139.00 | Ships in 2-3 weeks | |
|
LS-CTL-0509MAPC analog power supply controller, 2 ch
| 2 | 0-24 V | AC100-240V 50/60Hz | 0.7A | Stepless knob | $169.00 | Ships in 2-3 weeks | |
 LS-CTL-0453HAPC analog power supply controller (high power), 1 ch
| 1 | 0-24 V | AC100-240V 50/60Hz | 21A | Multi-turn knob | $239.00 | Ships in 2-3 weeks | |
 LS-CTL-0510Analog controller, LS-CTL-S100 series, 1 ch, 20 W
| 1 | 24V | AC100-240V 50/60Hz | 20 W | - | $149.00 | Ships in 2-3 weeks | |
|
LS-CTL-0454HAPC analog power supply controller (high power), 2 ch
| 2 | 0-24 V | AC100-240V 50/60Hz | 8.4A | Multi-turn knob | $269.00 | Ships in 2-3 weeks | |
|
LS-CTL-0452HAPC analog power supply controller (high power), 1 ch
| 1 | 0-24 V | AC100-240V 50/60Hz | 16.5A | Multi-turn knob | $239.00 | Ships in 2-3 weeks | |
 LS-CTL-0375Digital controller, LS-CTL-S69 series, 8 ch, 120 W
| 8 | 24V | AC100-240V 50/60Hz | 120 W | Panel keys / RS232 / Ethernet | $479.00 | Ships in 2-3 weeks | |
|
LS-CTL-0455HAPC analog power supply controller (high power), 1 ch
| 1 | 0-24 V | AC100-240V 50/60Hz | 11.5A | Multi-turn knob | $229.00 | Ships in 2-3 weeks | |
 LS-CTL-0371Third generation four channel mini digital controller, 4 ch, 72 W
| 4 | 24V | - | 72W | 9600 | $459.00 | Ships in 2-3 weeks | |
 LS-CTL-0451Common controller, single channel analog, 1 ch, 30 W
| 1 | 16-24V | - | 30 W | analog | $159.00 | Ships in 2-3 weeks | |
 LS-CTL-0366Digital controller box, 4 ch, 80 W
| 4 | 24V | DC 24V | 80W | RS232 | $469.00 | Ships in 2-3 weeks | |
 LS-CTL-0362DPC digital controller, 12 ch
| 12 | 16-24V | AC100-240V 50/60Hz | 16A | - | $559.00 | Ships in 2-3 weeks | |
 LS-CTL-0379Two channel stroboscopic brightening digital controller, 2 ch, 80 W
| 2 | DC 48V (moment) | - | 80 W | 9600 | $379.00 | Ships in 2-3 weeks | |
|
LS-CTL-0361DPC digital controller, 8 ch
| 8 | 16-24V | AC100-240V 50/60Hz | 8A | - | $429.00 | Ships in 2-3 weeks | |
|
LS-CTL-0353DPC digital controller, 8 ch
| 8 | 16-24V | AC100-240V 50/60Hz | 2.5A | - | $429.00 | Ships in 2-3 weeks | |
|
LS-CTL-0356DPC digital controller, 6 ch
| 6 | 16-24V | AC100-240V 50/60Hz | 5.2A | - | $359.00 | Ships in 2-3 weeks | |
|
LS-CTL-0363DPC digital controller, 4 ch, 165 x 136 mm, 16-24V
| 4 | 16-24V | AC100-240V 50/60Hz | 21A | - | $329.00 | Ships in 2-3 weeks | |
|
LS-CTL-0357DPC digital controller, 8 ch
| 8 | 16-24V | AC100-240V 50/60Hz | 5.2A | - | $429.00 | Ships in 2-3 weeks | |
|
LS-CTL-0352DPC digital controller, 6 ch
| 6 | 16-24V | AC100-240V 50/60Hz | 2.5A | - | $359.00 | Ships in 2-3 weeks | |
|
LS-CTL-0359DPC digital controller, 4 ch, 100 x 158 mm, 16-24V
| 4 | 16-24V | AC100-240V 50/60Hz | 8A | - | $289.00 | Ships in 2-3 weeks | |
|
LS-CTL-0360DPC digital controller, 6 ch
| 6 | 16-24V | AC100-240V 50/60Hz | 8A | - | $359.00 | Ships in 2-3 weeks | |
|
LS-CTL-0365DPC digital controller, 4 ch, 16-24V
| 4 | 16-24V | DC24V | 3.3A | - | $289.00 | Ships in 2-3 weeks | |
|
LS-CTL-0348DPC digital controller, 4 ch, 100 x 158 mm, 5-24V
| 4 | 5-24V | AC100-240V 50/60Hz | 3.5A | - | $289.00 | Ships in 2-3 weeks | |
|
LS-CTL-0355DPC digital controller, 4 ch, 100 x 158 mm, 16-24V
| 4 | 16-24V | AC100-240V 50/60Hz | 5.2A | - | $289.00 | Ships in 2-3 weeks |
How to choose a machine vision light controller
1. Channels
One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.
2. Power per channel
Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.
3. Constant, strobe or overdrive
Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.
4. How it is set
Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.
5. Voltage and connectors
Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
