DPC digital controller, 4 ch, 100 x 158 mm, 16-24V
LS-CTL-0351
- Channels 4
- Output 16-24V
- Input AC100-240V 50/60Hz
$289.00
In stock · 5 available
Light controllers
Light controllers
Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.
Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers
Products
DPC digital controller, 2 ch, output CH 2 CH
LS-CTL-0364
- Channels 2
- Output 16-24V
- Input DC24V
$219.00
In stock · 5 available
DPC digital controller, 2 ch, 100 x 158 x 95 mm
LS-CTL-0358
- Channels 2
- Output 16-24V
- Input AC100-240V 50/60Hz
$229.00
In stock · 5 available
DPC digital controller, 2 ch, 100 x 158 x 95 mm
LS-CTL-0350
- Channels 2
- Output 16-24V
- Input AC100-240V 50/60Hz
$219.00
In stock · 2 available
DPC digital controller, 2 ch, 100 x 158 x 95 mm
LS-CTL-0354
- Channels 2
- Output 16-24V
- Input AC100-240V 50/60Hz
$229.00
In stock · 5 available
DPC digital controller, 2 ch, 75 x 116 x 89.7 mm
LS-CTL-0349
- Channels 2
- Output 10-24V
- Input AC100-240V 50/60Hz
$219.00
In stock · 5 available
DPC digital power supply controller, 6 ch
LS-CTL-0342
- Channels 6
- Output 16~24V
- Input AC100-240V 50/60Hz
$519.00
In stock · 2 available

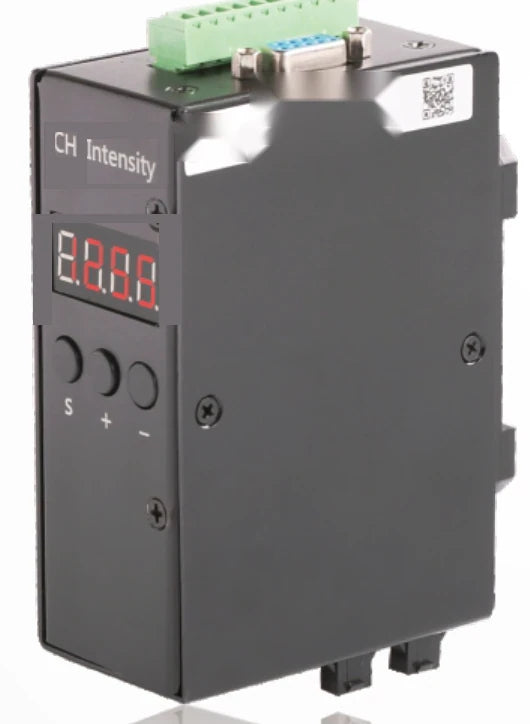

Digital control box, 4 ch, 60 W, output voltage range 0-24 V
LS-CTL-0347
- Channels 4
- Output 0-24V
- Input DC 24V
$459.00
In stock · 4 available
DPC digital power supply controller, 8 ch
LS-CTL-0340
- Channels 8
- Output 16~24V
- Input AC100-240V 50/60Hz
$609.00
In stock · 4 available
DPC digital power supply controller, 8 ch
LS-CTL-0343
- Channels 8
- Output 16~24V
- Input AC100-240V 50/60Hz
$609.00
In stock · 3 available
DPC digital power supply controller, 4 ch
LS-CTL-0338
- Channels 4
- Output 16~24V
- Input AC100-240V 50/60Hz
$429.00
In stock · 4 available
DPC digital power supply controller, 8 ch
LS-CTL-0336
- Channels 8
- Output 16~24V
- Input AC100-240V 50/60Hz
$609.00
In stock · 5 available
DPC digital power supply controller, 4 ch
LS-CTL-0341
- Channels 4
- Output 16~24V
- Input AC100-240V 50/60Hz
$429.00
In stock · 2 available
DPC digital power supply controller, 6 ch
LS-CTL-0339
- Channels 6
- Output 16~24V
- Input AC100-240V 50/60Hz
$519.00
In stock · 4 available
DPC digital power supply controller, 2 ch, 0~24V
LS-CTL-0345
- Channels 2
- Output 0~24V
- Input AC100-240V 50/60Hz
$359.00
In stock · 2 available
DPC digital power supply controller, 4 ch
LS-CTL-0334
- Channels 4
- Output 16~24V
- Input AC100-240V 50/60Hz
$429.00
In stock · 2 available
DPC digital power supply controller, 6 ch
LS-CTL-0335
- Channels 6
- Output 16~24V
- Input AC100-240V 50/60Hz
$519.00
In stock · 5 available
High power constant current controller, 1 ch, 1200 W
LS-CTL-0310
- Channels 1
- Input AC 180-264V
- Total output 1200W
$1,059.00
In stock · 5 available
High power constant current controller, 1 ch, 800 W
LS-CTL-0309
- Channels 1
- Input AC 100-240V
- Total output 800W
$809.00
In stock · 3 available
High power constant current controller, 2 ch, 400 W
LS-CTL-0307
- Channels 2
- Input AC 100-240V
- Total output 400W
$599.00
In stock · 3 available
DPC digital power supply controller, 2 ch, 0~24V
LS-CTL-0344
- Channels 2
- Output 0~24V
- Input AC100-240V 50/60Hz
$359.00
In stock · 2 available
High power constant current controller, 1 ch, 400 W
LS-CTL-0306
- Channels 1
- Input AC 100-240V
- Total output 400W
$559.00
In stock · 2 available
DPC digital power supply controller, 2 ch, 22~48V
LS-CTL-0346
- Channels 2
- Output 22~48V
- Input AC100-240V 50/60Hz
$329.00
In stock · 4 available
DPC digital power supply controller, 2 ch, 16~24V
LS-CTL-0337
- Channels 2
- Output 16~24V
- Input AC100-240V 50/60Hz
$329.00
In stock · 2 available
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
 LS-CTL-0351DPC digital controller, 4 ch, 100 x 158 mm, 16-24V
| 4 | 16-24V | AC100-240V 50/60Hz | 2.5A | - | $289.00 | 5 in stock | |
|
LS-CTL-0364DPC digital controller, 2 ch, output CH 2 CH
| 2 | 16-24V | DC24V | 3.3A | - | $219.00 | 5 in stock | |
|
LS-CTL-0358DPC digital controller, 2 ch, 100 x 158 x 95 mm
| 2 | 16-24V | AC100-240V 50/60Hz | 8A | - | $229.00 | 5 in stock | |
|
LS-CTL-0350DPC digital controller, 2 ch, 100 x 158 x 95 mm
| 2 | 16-24V | AC100-240V 50/60Hz | 2.5A | - | $219.00 | 2 in stock | |
|
LS-CTL-0354DPC digital controller, 2 ch, 100 x 158 x 95 mm
| 2 | 16-24V | AC100-240V 50/60Hz | 5.2A | - | $229.00 | 5 in stock | |
|
LS-CTL-0349DPC digital controller, 2 ch, 75 x 116 x 89.7 mm
| 2 | 10-24V | AC100-240V 50/60Hz | 1.25A | - | $219.00 | 5 in stock | |
 LS-CTL-0342DPC digital power supply controller, 6 ch
| 6 | 16~24V | AC100-240V 50/60Hz | 8.3A | Front-panel keys + RS232 serial port | $519.00 | 2 in stock | |
 LS-CTL-0347Digital control box, 4 ch, 60 W, output voltage range 0-24 V
| 4 | 0-24V | DC 24V | 60W | RS232 | $459.00 | 4 in stock | |
|
LS-CTL-0340DPC digital power supply controller, 8 ch
| 8 | 16~24V | AC100-240V 50/60Hz | 5.2A | Front-panel keys + RS232 serial port | $609.00 | 4 in stock | |
|
LS-CTL-0343DPC digital power supply controller, 8 ch
| 8 | 16~24V | AC100-240V 50/60Hz | 8.3A | Front-panel keys + RS232 serial port | $609.00 | 3 in stock | |
|
LS-CTL-0338DPC digital power supply controller, 4 ch
| 4 | 16~24V | AC100-240V 50/60Hz | 5.2A | Front-panel keys + RS232 serial port | $429.00 | 4 in stock | |
|
LS-CTL-0336DPC digital power supply controller, 8 ch
| 8 | 16~24V | AC100-240V 50/60Hz | 2.7A | Front-panel keys + RS232 serial port | $609.00 | 5 in stock | |
|
LS-CTL-0341DPC digital power supply controller, 4 ch
| 4 | 16~24V | AC100-240V 50/60Hz | 8.3A | Front-panel keys + RS232 serial port | $429.00 | 2 in stock | |
|
LS-CTL-0339DPC digital power supply controller, 6 ch
| 6 | 16~24V | AC100-240V 50/60Hz | 5.2A | Front-panel keys + RS232 serial port | $519.00 | 4 in stock | |
|
LS-CTL-0345DPC digital power supply controller, 2 ch, 0~24V
| 2 | 0~24V | AC100-240V 50/60Hz | 21A | Front-panel keys + RS232 serial port | $359.00 | 2 in stock | |
|
LS-CTL-0334DPC digital power supply controller, 4 ch
| 4 | 16~24V | AC100-240V 50/60Hz | 2.7A | Front-panel keys + RS232 serial port | $429.00 | 2 in stock | |
|
LS-CTL-0335DPC digital power supply controller, 6 ch
| 6 | 16~24V | AC100-240V 50/60Hz | 2.7A | Front-panel keys + RS232 serial port | $519.00 | 5 in stock | |
 LS-CTL-0310High power constant current controller, 1 ch, 1200 W
| 1 | - | AC 180-264V | 1200W | RS232, LAN | $1,059.00 | 5 in stock | |
|
LS-CTL-0309High power constant current controller, 1 ch, 800 W
| 1 | - | AC 100-240V | 800W | RS232, LAN | $809.00 | 3 in stock | |
|
LS-CTL-0307High power constant current controller, 2 ch, 400 W
| 2 | - | AC 100-240V | 400W | RS232, LAN | $599.00 | 3 in stock | |
|
LS-CTL-0344DPC digital power supply controller, 2 ch, 0~24V
| 2 | 0~24V | AC100-240V 50/60Hz | 16.5A | Front-panel keys + RS232 serial port | $359.00 | 2 in stock | |
|
LS-CTL-0306High power constant current controller, 1 ch, 400 W
| 1 | - | AC 100-240V | 400W | RS232, LAN | $559.00 | 2 in stock | |
|
LS-CTL-0346DPC digital power supply controller, 2 ch, 22~48V
| 2 | 22~48V | AC100-240V 50/60Hz | 3.3A | Front-panel keys + RS232 serial port | $329.00 | 4 in stock | |
|
LS-CTL-0337DPC digital power supply controller, 2 ch, 16~24V
| 2 | 16~24V | AC100-240V 50/60Hz | 5.2A | Front-panel keys + RS232 serial port | $329.00 | 2 in stock |
How to choose a machine vision light controller
1. Channels
One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.
2. Power per channel
Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.
3. Constant, strobe or overdrive
Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.
4. How it is set
Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.
5. Voltage and connectors
Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
