DPC digital power supply controller
  • DPC digital power supply controller

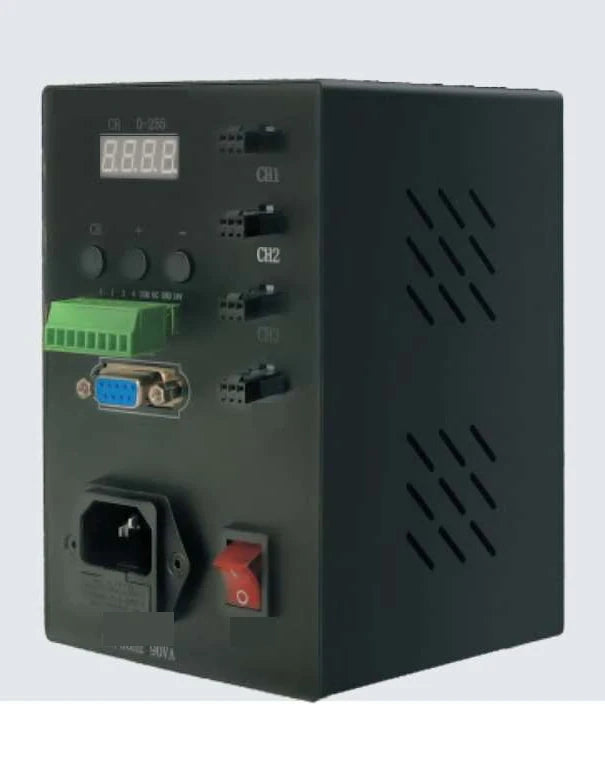

Representative photo of this series

Light controllers

DPC digital power supply controller, 6 ch (LS-CTL-0342)

Model LS-CTL-0342

  • Channels6
  • Output16~24V
  • InputAC100-240V 50/60Hz
  • Total output8.3A
  • ControlFront-panel keys + RS232 serial port
$519.00

Ships in 2-3 weeks

0.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

DPC digital power supply controller, 6 ch (LS-CTL-0342)LS-CTL-0342

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-CTL-S61 series digital controllers provide brightness-control power for 24 V LED lights, controlled from the front panel or by serial communication (remote control) with 256 brightness steps (0-255); they can stay lit for long periods and have a built-in external trigger for easy on/off switching.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0342
ControlFront-panel keys + RS232 serial port
Dimming0-255 (256 steps)
Front panelChannel display, brightness display (0-255), CH select key, brightness + / - keys, trigger terminal, RS232 port, power input, power switch
Control (perform)KEY buttons, RS232 serial port

Electrical

Input voltageAC100-240V 50/60Hz
Trigger wiringTrigger terminals can be wired common-positive or common-negative; COM is the common input; the numbers are the channel inputs (1 = channel 1, 2 = channel 2, ...); NC is unused; +24V and GND are a DC 24 V output.
Channel / outputC6 O6 (6 channels, 6 outputs)
Output voltage16~24V
Single channel current3A
Total output current8.3A
Trigger inputYes
Channels6

Mechanical

Shipping weight0.70 kg

Other models in the DPC digital power supply controller (LS-CTL-S61) series

See all 14 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0333 2 ch $329.00 Ships in 2-3 weeks View
LS-CTL-0337 2 ch $329.00 Ships in 2-3 weeks View
LS-CTL-0346 2 ch $329.00 Ships in 2-3 weeks View
LS-CTL-0344 2 ch $359.00 Ships in 2-3 weeks View
LS-CTL-0345 2 ch $359.00 Ships in 2-3 weeks View
LS-CTL-0334 4 ch $429.00 Ships in 2-3 weeks View
LS-CTL-0338 4 ch $429.00 Ships in 2-3 weeks View
LS-CTL-0341 4 ch $429.00 Ships in 2-3 weeks View
LS-CTL-0335 6 ch $519.00 Ships in 2-3 weeks View
LS-CTL-0339 6 ch $519.00 Ships in 2-3 weeks View
LS-CTL-0336 8 ch $609.00 Ships in 2-3 weeks View
LS-CTL-0340 8 ch $609.00 Ships in 2-3 weeks View
LS-CTL-0343 8 ch $609.00 Ships in 2-3 weeks View
