4-Channel Digital LED Light Controller, 24 V 120 W, with Strobe Trigger
LS-HDPS24120C-4T
- Channels 4
- Control Analog
- Input AC 100-240 V, 50/60 Hz
$269.00
Ships in 2-3 weeks
Light controllers
Light controllers
Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.
Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers
Products
4-channel 48 V strobe LED light controller
LS-CTL-0495
- Channels 4
- Output 48 V
- Control Analog
$506.00
Ships in 3-4 weeks
2-channel 48 V strobe LED light controller
LS-CTL-0494
- Channels 2
- Output 48 V
- Control Analog
$506.00
Ships in 3-4 weeks
1-channel 48 V digital LED light controller, 300 W, RS-232
LS-CTL-0492
- Channels 1
- Output 48 V
- Control Typically up to 15 m Up to 100 m
$660.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 500 W
LS-CTL-0491
- Channels 2
- Output 24 V
- Control Digital
$530.00
Ships in 3-4 weeks

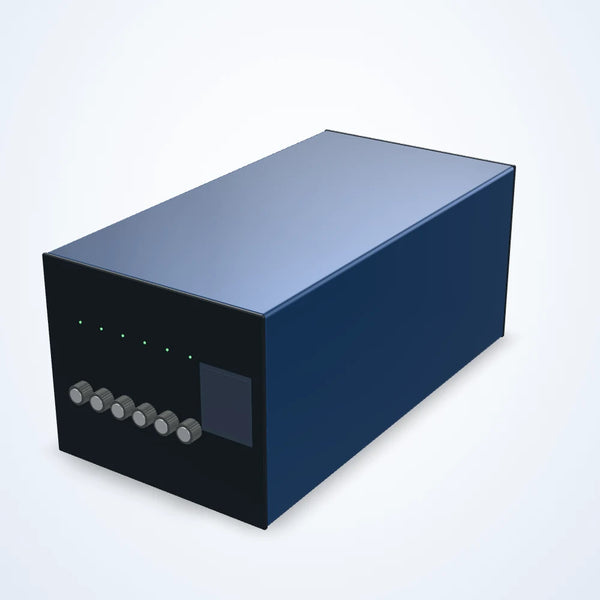

6-channel 48 V strobe line light controller
LS-CTL-0496
- Channels 6
- Output 48 V
- Control Analog
$1,760.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 480 W, Ethernet
LS-CTL-0490
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$550.00
Ships in 3-4 weeks
1-channel 48 V digital LED light controller, 300 W, Ethernet
LS-CTL-0493
- Channels 1
- Output 48 V
- Control Typically up to 15 m Up to 100 m
$715.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 200 W, Ethernet
LS-CTL-0485
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$440.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 240 W, RS-232
LS-CTL-0487
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$385.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 240 W, Ethernet
LS-CTL-0488
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$440.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 480 W, RS-232
LS-CTL-0489
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$495.00
Ships in 3-4 weeks
4-channel 24 V digital LED light controller, 150 W, Ethernet
LS-CTL-0481
- Channels 4
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$290.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 200 W, RS-232
LS-CTL-0484
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$385.00
Ships in 3-4 weeks
2-channel 5 V digital LED light controller, 10 W
LS-CTL-0474
- Channels 2
- Output 5 V
- Control Digital
$250.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 20 W, Ethernet
LS-CTL-0477
- Channels 2
- Output 24 V
- Control Typically up to 15 m Up to 100 m
$195.00
Ships in 3-4 weeks
4-channel 24 V digital LED light controller, 150 W, RS-232
LS-CTL-0480
- Channels 4
- Output 24 V
- Total output ≤150 W
$250.00
Ships in 3-4 weeks
2-channel 5 V digital LED light controller, 6 W, Ethernet
LS-CTL-0472
- Channels 2
- Output 5 V
- Control Typically up to 15 m Up to 100 m
$250.00
Ships in 3-4 weeks
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
- Total output ≤20 W
$165.00
Ships in 3-4 weeks
2-channel 48 V analog line light controller, 800 W
LS-CTL-0468
- Channels 2
- Output 48 V
- Control RS232(DB9)
$1,020.00
Ships in 3-4 weeks
2-channel 5 V digital LED light controller, 6 W, RS-232
LS-CTL-0471
- Channels 2
- Output 5 V
- Total output ≤6 W, 12 W also available if requested
$120.00
Ships in 3-4 weeks
1-channel 48 V analog line light controller, 1200 W
LS-CTL-0469
- Channels 1
- Output 48 V
- Control Analog
$1,070.00
Ships in 3-4 weeks
2-channel 48 V analog line light controller, 300 W
LS-CTL-0463
- Channels 2
- Output 48 V
- Control Analog
$640.00
Ships in 3-4 weeks
2-channel 48 V analog line light controller, 600 W
LS-CTL-0465
- Channels 2
- Output 48 V
- Control RS232(DB9)
$695.00
Ships in 3-4 weeks
How to choose a machine vision light controller
1. Channels
One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.
2. Power per channel
Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.
3. Constant, strobe or overdrive
Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.
4. How it is set
Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.
5. Voltage and connectors
Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
