6-channel 48 V strobe line light controller

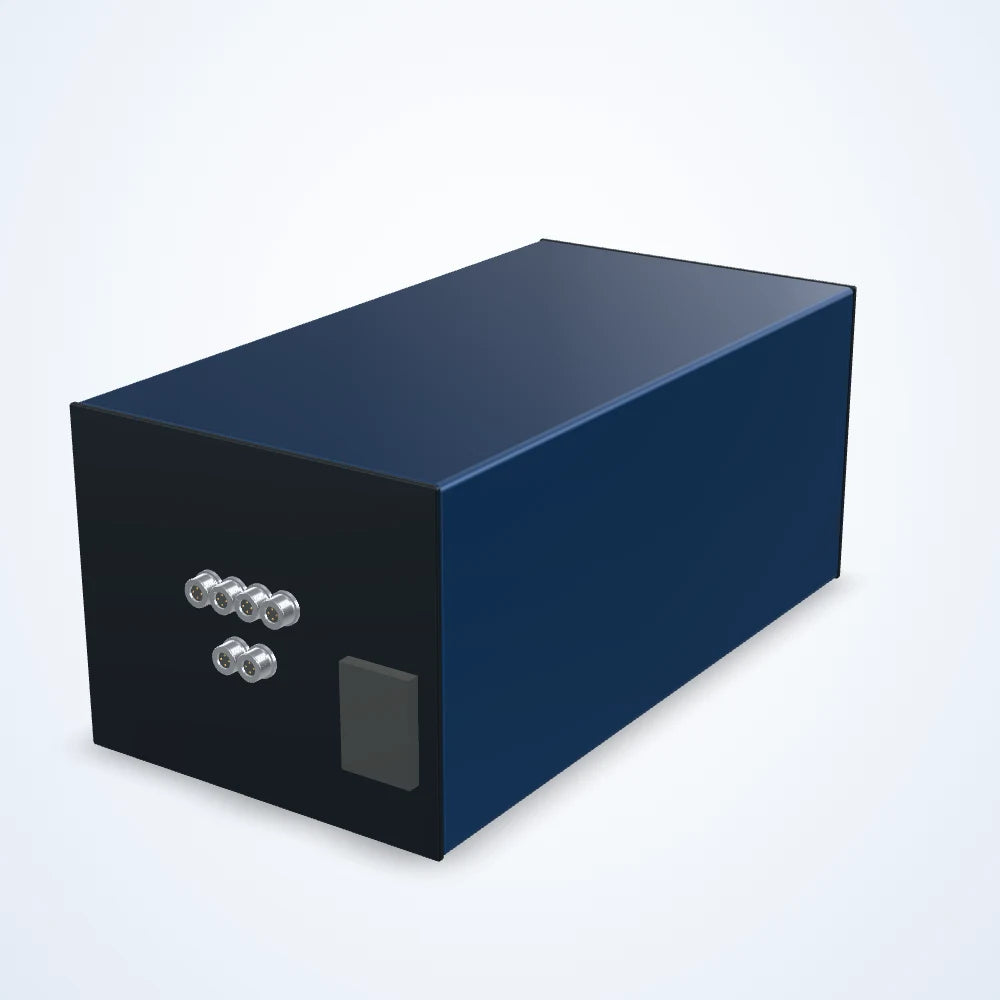

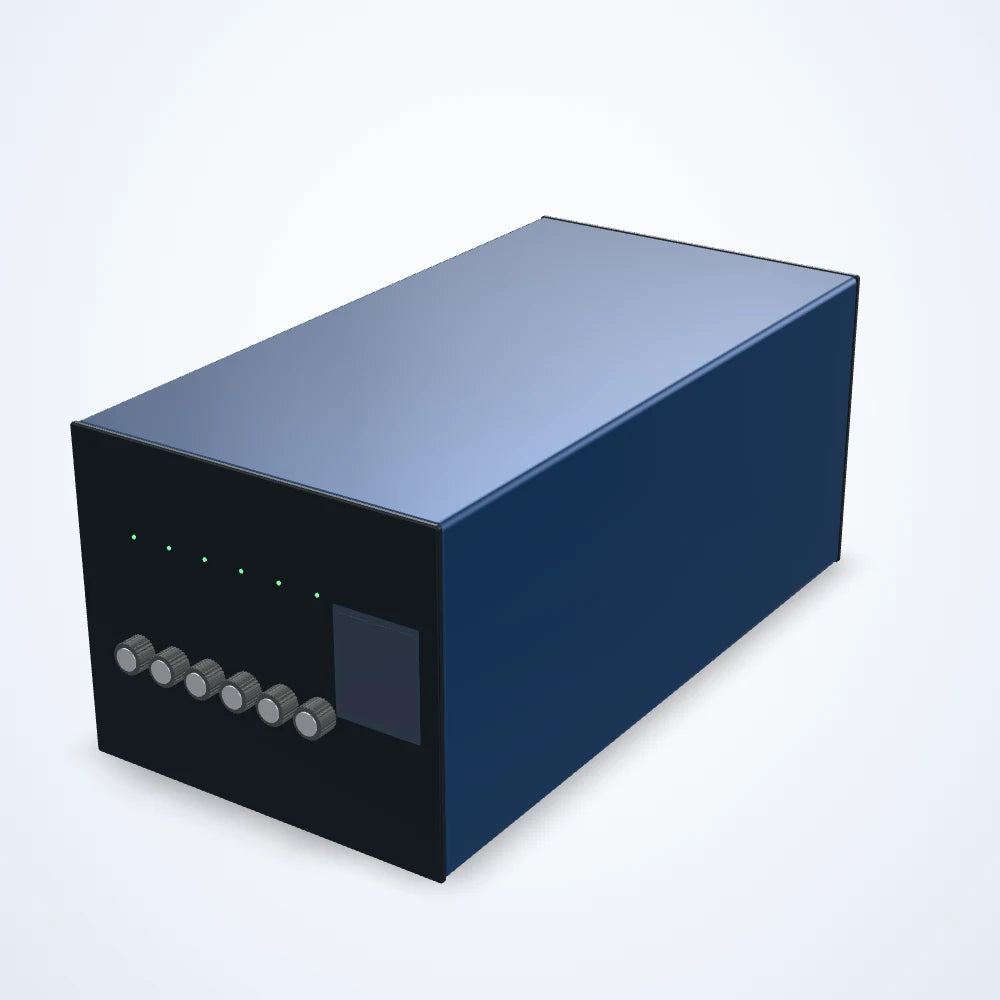

Rendered illustration: the actual product may differ in appearance.

Light controllers

6-channel 48 V strobe line light controller (LS-CTL-0496)

Model LS-CTL-0496

Channels6
Output48 V
ControlAnalog
Drive modeConstant Voltage

$1,760.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Strobe line light controller for powering, dimming and strobing LED lights. 100 V-240 V supply; 6 output channel(s).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0496

Interfaces and I/O

Connector	16M-2

Electrical

Drive mode	Constant Voltage
Supply voltage	100 V-240 V
Output voltage	48 V
Power	1000 W
Output current	Total:25A Single:25A
Channels	6

Mechanical

Shipping weight	3.00 kg

LS-CTL-0496

See this component from every angle.

Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.

Explore the visual library

Concept illustration

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

Output voltage: 48 V
Channels: 6
Connector: 16M-2

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Strobe line light controllers (LS-CTL-S96) series

See all 3 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0494	2 ch	$506.00	Ships in 3-4 weeks	View
LS-CTL-0495	4 ch	$506.00	Ships in 3-4 weeks	View
