Light controllers

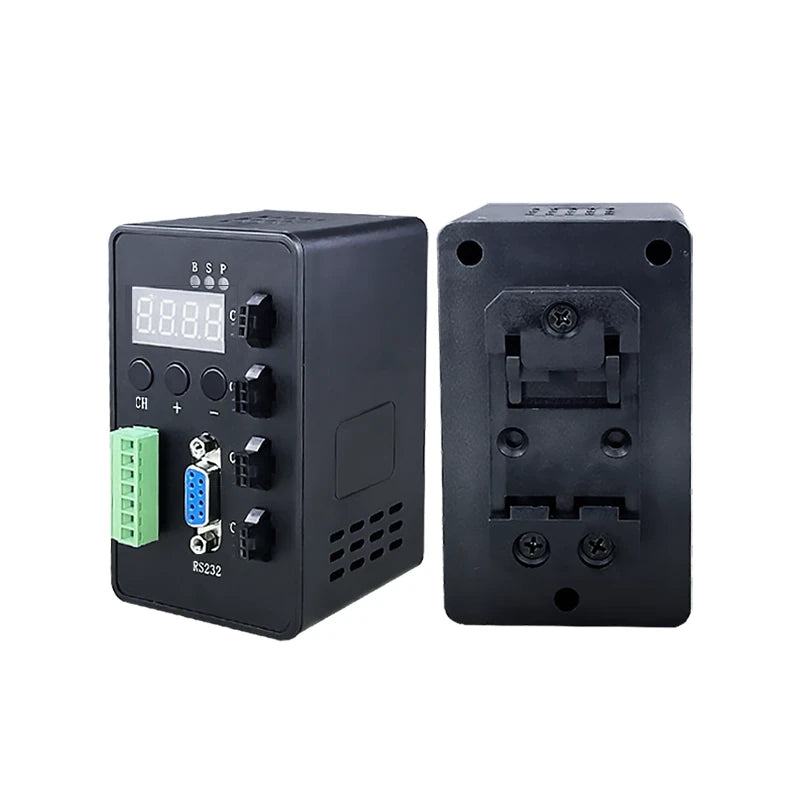

Third generation four channel mini digital controller, 4 ch, 72 W (LS-CTL-0371)
Model LS-CTL-0371
- Channels4
- Output24V
- Total output72W
- Control9600
$459.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Third generation 4-channel mini digital PWM controller: small volume, automatic power adaptation, two trigger modes, adjustable stroboscopic pulse width, short circuit and overcurrent protection, brightness levels 0-999.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0371 |
|---|---|
| Control mode | PWM driven type (choosable) |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (through the upper computer software) |
| Type | Digital Mini Stroboscopic |
Interfaces and I/O
| RS232 communication baud rate | 9600 |
|---|
Light
| Luminance level memory | yes (memory automatically remembered 3 seconds after adjustment) |
|---|---|
| Adjustable brightness level | 0-999 level |
Environment and compliance
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
|---|---|
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Operating temperature | -10~50 ℃ |
| Operating humidity | 20~80% |
| Storage temperature | -20~70℃ |
| Storage humidity | 10~90% |
Electrical
| Max. power output/channel | 72W |
|---|---|
| Total output power of the controller | 72W |
| External trigger mode | High level trigger (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <10us |
| External trigger frequency | <1/T (e.g. T=1ms gives at most 1KHz) |
| Short-circuit protection | yes: when the circuit is short, the corresponding channel output is automatically closed |
| Overcurrent protection | yes: beyond 72W all channels are automatically closed and Errl is displayed; restart and restore after the exception condition is removed |
| Standby power consumption | <3W |
| Current | DC |
| Input Volt | DC24V |
| Output Volt | 24V |
| Output Power Per Channel | 72W |
| Output Power Total Power | 72W |
| Trigger | Yes |
| Input Volt | AC 110-220V |
| Total output power | 72W |
| Power/CH | 72W |
| Output voltage | 24V |
| External trigger | yes |
| Total power | 72W |
| Channels | 4 |
Mechanical

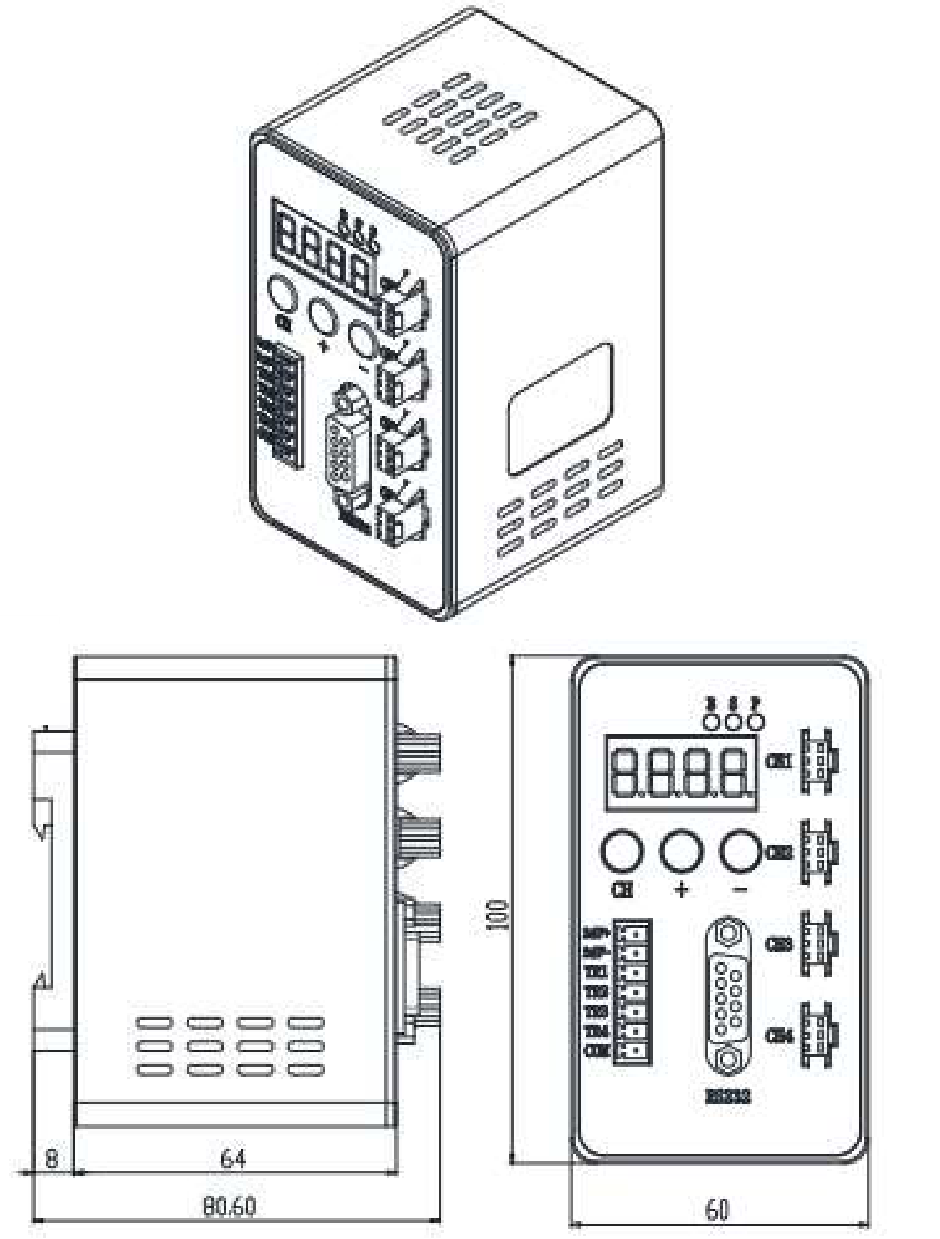

| Boundary dimension (mm) | 81*60*100mm (LxWxH) |
|---|---|
| Shipping weight | 0.35 kg |
