HAPC analog power supply controller (high power), 2 ch (LS-CTL-0454)

Model LS-CTL-0454

Channels2
Output0-24 V
InputAC100-240V 50/60Hz
Total output8.4A
ControlMulti-turn knob

$269.00

Ships in 2-3 weeks

2.35 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-CTL-S92 series high-power controllers provide brightness-control power for high-power 24 V LED lights, with a built-in high-power switching power supply, high-speed isolated trigger with trigger-on / trigger-off, and stepless knob adjustment on the front panel; stable, convenient, fast high-power controllers for industrial lighting.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0454
Control	Multi-turn knob

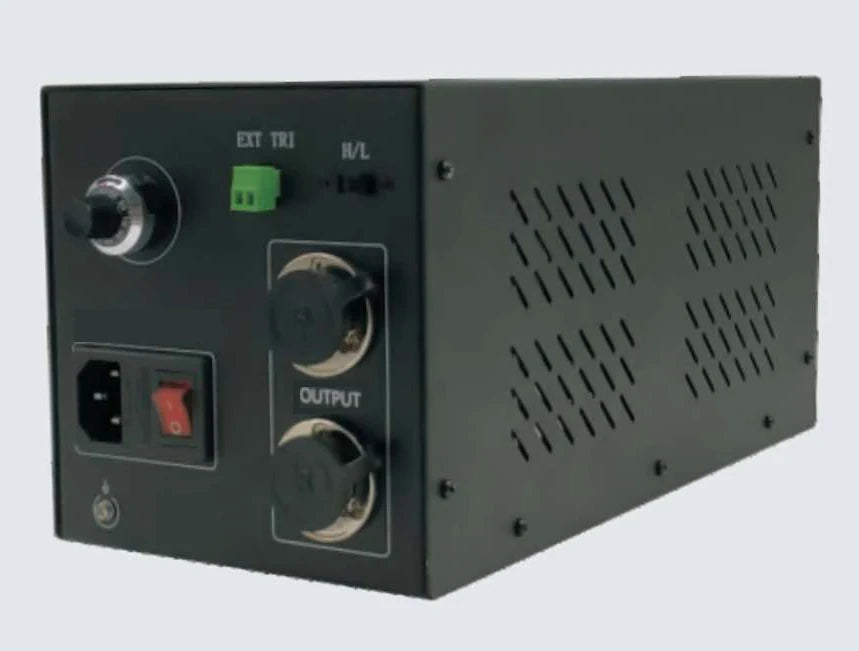

Front panel (LS-CTL-0452 / LS-CTL-0453)	Multi-turn knob, trigger port (EXT TRI), on/off switch, power switch, ground terminal, two aviation light outputs
Control (perform)	Knob

Electrical

Input voltage	AC100-240V 50/60Hz
Output voltage	0-24 V
Channel / output	C2 O4 (2 channels, 4 outputs)
Single channel current	4.2A
Total output current	8.4A
Trigger input	No
Channels	2

Mechanical

Shipping weight	2.35 kg

Other models in the HAPC analog power supply controller (high power) (LS-CTL-S92) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0455	1 ch	$229.00	Ships in 2-3 weeks	View
LS-CTL-0452	1 ch	$239.00	Ships in 2-3 weeks	View
LS-CTL-0453	1 ch	$239.00	Ships in 2-3 weeks	View
