Light controllers

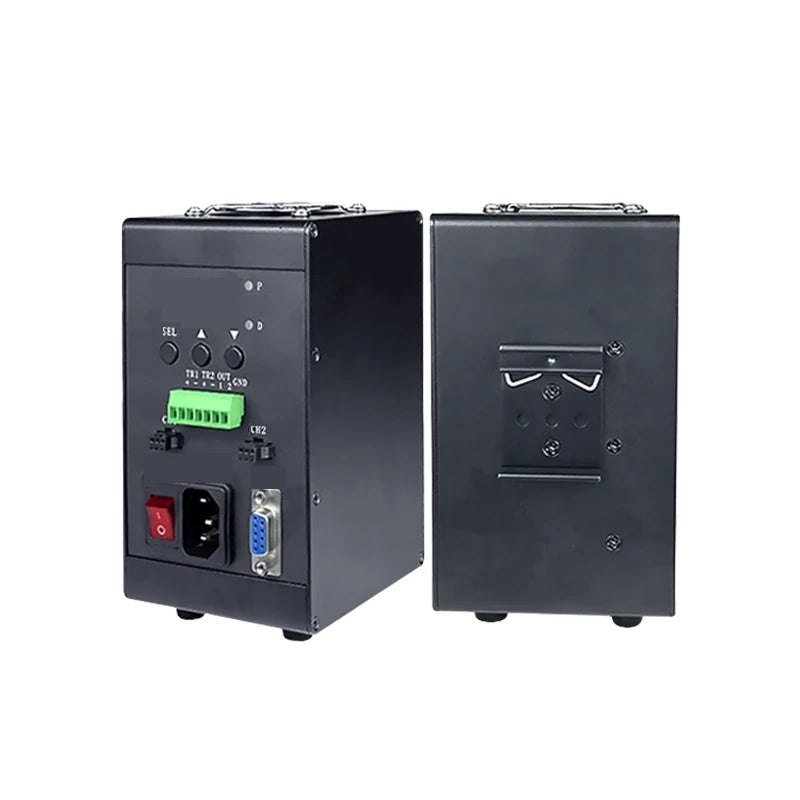

Two channel stroboscopic brightening digital controller, 2 ch, 80 W (LS-CTL-0379)
Model LS-CTL-0379
- Channels2
- OutputDC 48V (moment)
- Total output80 W
- Control9600
$379.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Two channel stroboscopic brightening digital controller: with a conventional 24V light source it can instantly raise the brightness more than 3 times; high speed optocoupler, internal and external trigger, strobe time 0-999us, and automatic trigger output to the camera.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0379 |
|---|---|
| Control mode | PWM (pulse driven type) |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (through the upper computer software) |
| Type | Digital Standard Stroboscopic |
Interfaces and I/O
| RS232 communication baud rate | 9600 |
|---|
Light
| Luminance level memory | yes (remembered 3 seconds after adjustment) |
|---|---|
| Adjustable brightness level | 0-999 level |
Environment and compliance
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
|---|---|
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Operating temperature | -10~50 ℃ |
| Operating humidity | 20~80% |
| Storage temperature | -20~70℃ |
| Storage humidity | 10~90% |
Electrical
| Output voltage | DC 48V (moment) |
|---|---|
| Max. power output/channel | 40W (the power of the single-pass connected light source is <=40W) |
| External trigger mode | High level trigger (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <10us |
| External trigger frequency | <1/5T (determined by the external trigger signal, but affected by the stroboscopic pulse width) |
| Standby power consumption | <1W |
| Current | PWM |
| Input Volt | AC220V |
| Output Volt | 48V |
| Output Power Per Channel | 40W |
| Trigger | Yes |
| Input Volt | 100-200VAC |
| Power/CH | 40W |
| External trigger | yes |
| Channels | 2 |
| Total output (W) | 80 |
Mechanical

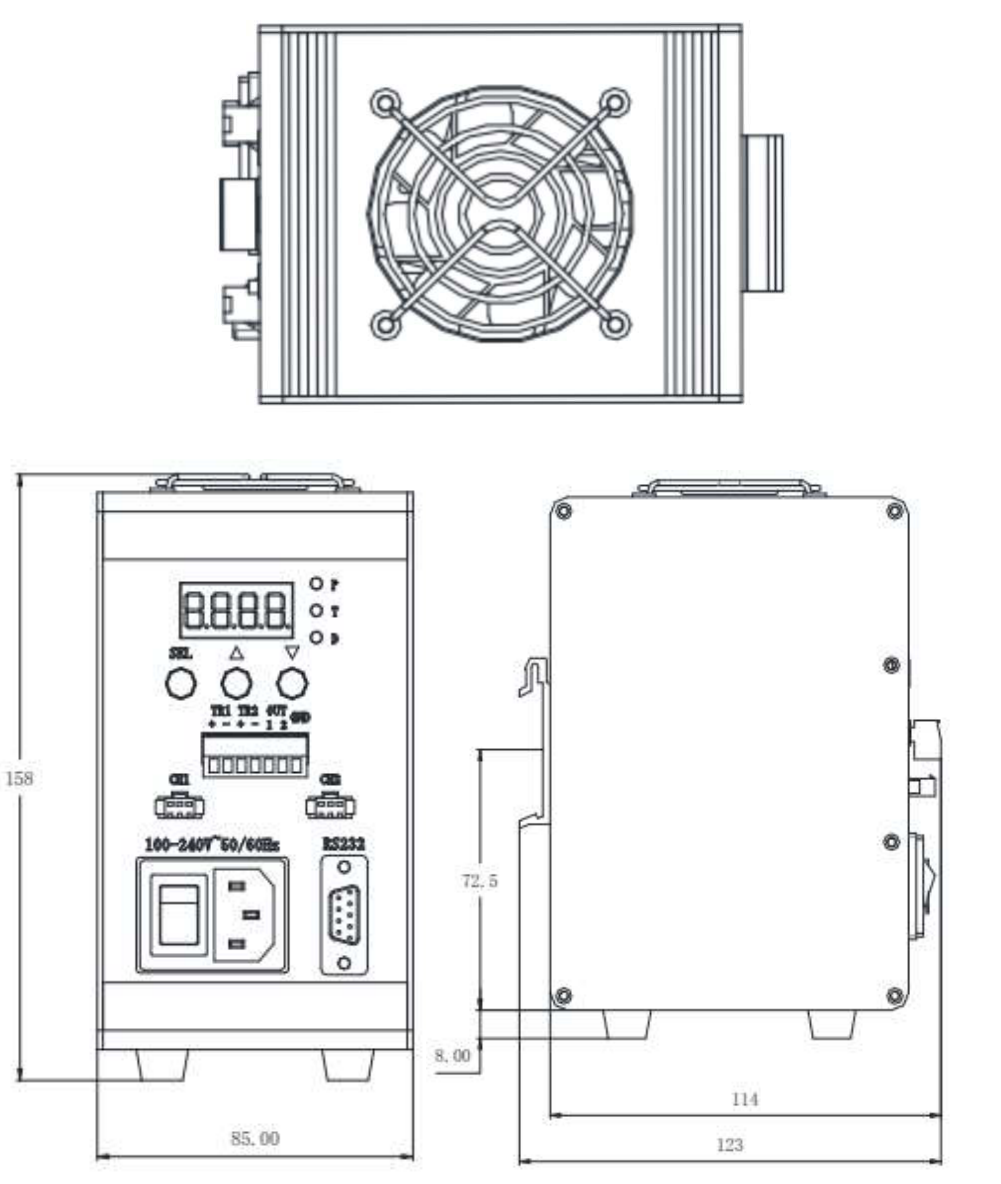

| Boundary dimension (mm) | 123x85x158mm (LxWxH) |
|---|---|
| Shipping weight | 0.80 kg |
