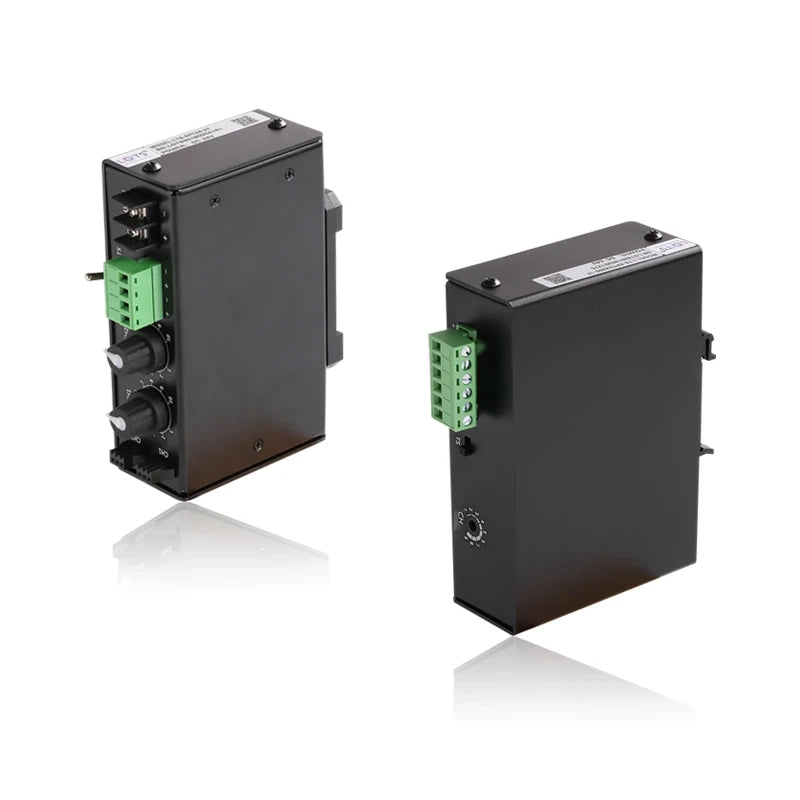

Analog controller box, 2 ch, 60 W (LS-CTL-0046)
  • Analog controller box, 2 ch, 60 W (LS-CTL-0046)

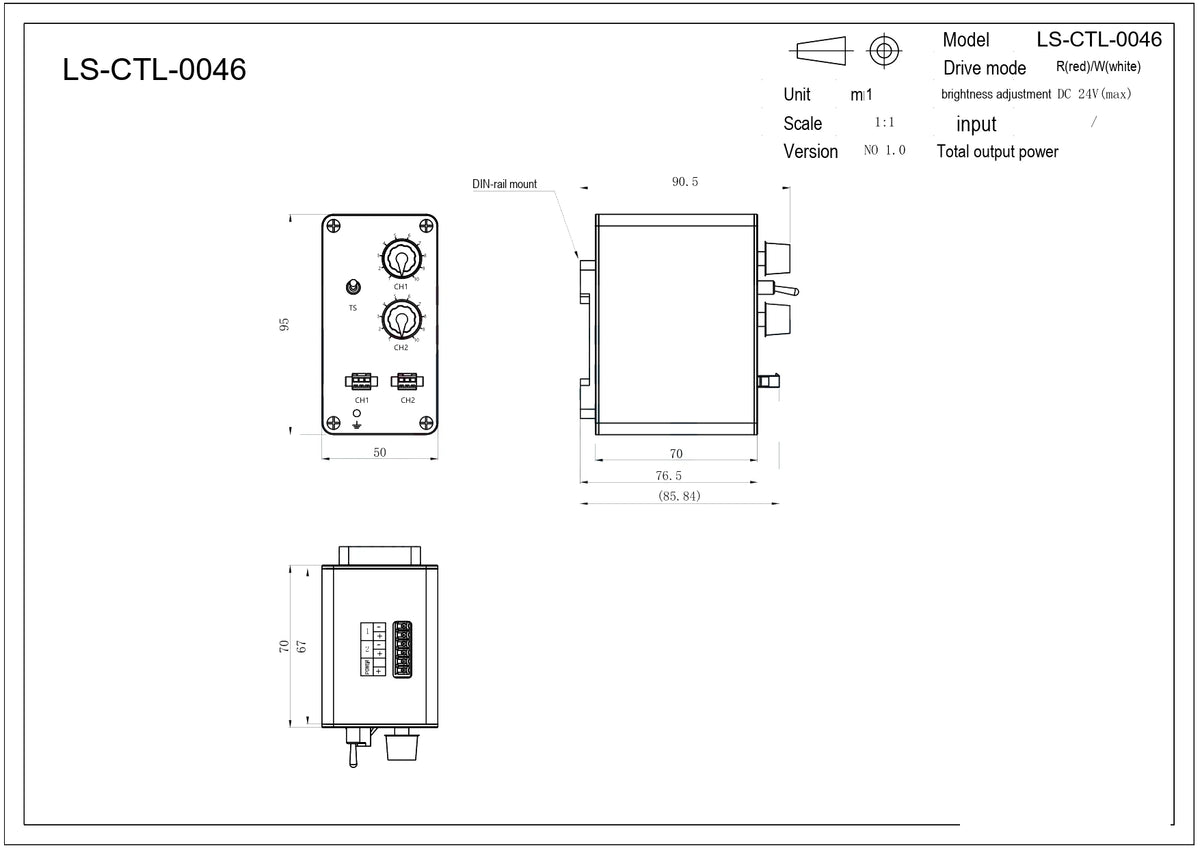

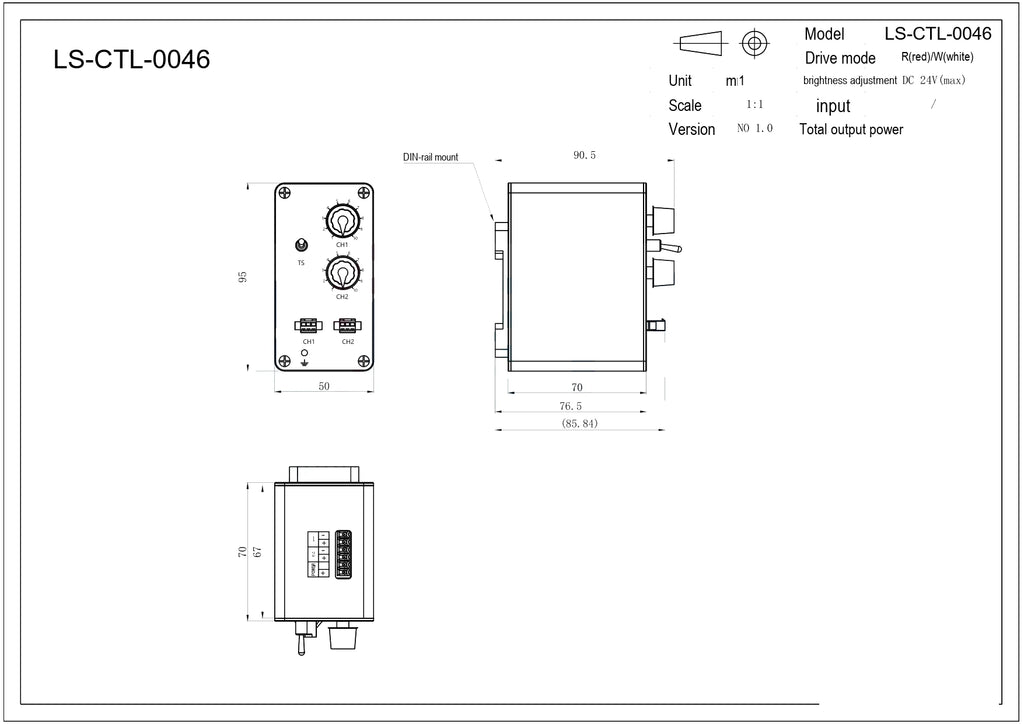

  • LS-CTL-0046 dimensions (mm)

Light controllers

Analog controller box, 2 ch, 60 W (LS-CTL-0046)

Model LS-CTL-0046

  • Channels2 Way
  • Output24V
  • InputDC 24V
  • Total output60W
  • ControlManual adjustment
$199.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Analog controller box, 2 ch, 60 W (LS-CTL-0046)LS-CTL-0046

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

DC24V input. Stepless adjustable output voltage. Compact size.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0046
Constant on / off switchSupport
ProductAnalog controller box
ControlManual adjustment

Light

Luminance adjustment levelStepless (knob adjustment)
Luminance adjustment methodManual adjustment
Luminance adjustment modeConstant current mode

Electrical

External trigger voltage0-1.5V
Number of channels2 Way
Input voltageDC 24V
Output voltage24V
Total output power60W
One way max. output power30W

Mechanical

MountingDIN rail mount
Shipping weight0.50 kg
