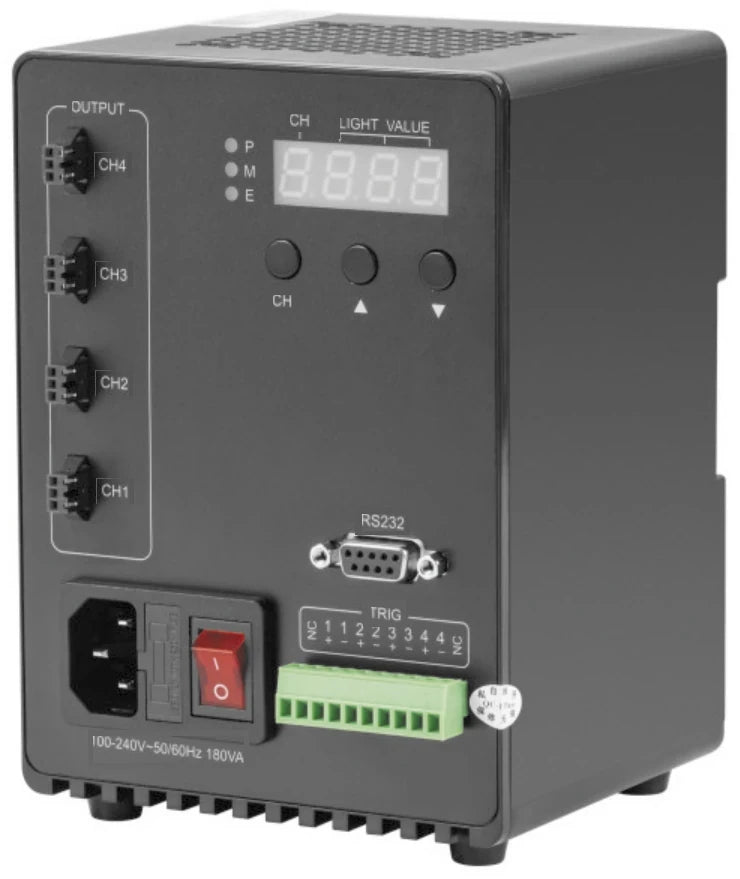

Standard constant-current controller, 4 ch, 96 W (LS-CTL-0162)

Model LS-CTL-0162

  • Channels4
  • OutputDC 24V
  • InputAC100-240V 50/60Hz
  • Total output96 W
  • ControlModbus over RS232
$339.00

Ships in 2-3 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Standard constant-current controller, 4 ch, 96 W (LS-CTL-0162)LS-CTL-0162

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Standard constant-current controller with automatic load-current detection, constant-on and strobe lighting in one unit, digital display with 256 brightness levels, RS232 communication using the Modbus protocol for remote control, screw or DIN rail mounting and high-speed optocoupler trigger input.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0162
Drive methodConstant current
Light control mode0-255 level brightness; panel buttons / RS232
Cooling methodForced cooling
ButtonsCH = channel / function switch (H1 = constant-on mode, H0 = constant-off mode); ▲ increase; ▼ decrease
IndicatorsP lit at normal power-on; M lit in advanced mode; E lit on controller fault

Interfaces and I/O

Communication protocolModbus over RS232

Environment and compliance

Operating temp/humidity0~40 °C, 20~85 %RH (non-condensing)
Storage temp/humidity-20~60 °C, 20~85 %RH (non-condensing)

Electrical

Strobe pulse width0-999ms
Input voltageAC100-240V 50/60Hz
Channels4
Output voltageDC 24V
Max output current4A (single channel max current 1A)
Total power96W
Output portSMP-03V-BC (1: output+ 2: NC 3: output-)
External trigger voltageDC5V~24V (current about 5.6mA)
Trigger delay<10μs
Trigger portNC, 1+/1- ... 4+/4-, NC; DC5-24V, optocoupler isolated, NPN or PNP
Total output (W)96

Mechanical

Weight720g or less
Dimensions116 x 114.4 x 164.8 mm
MountingScrew or DIN rail

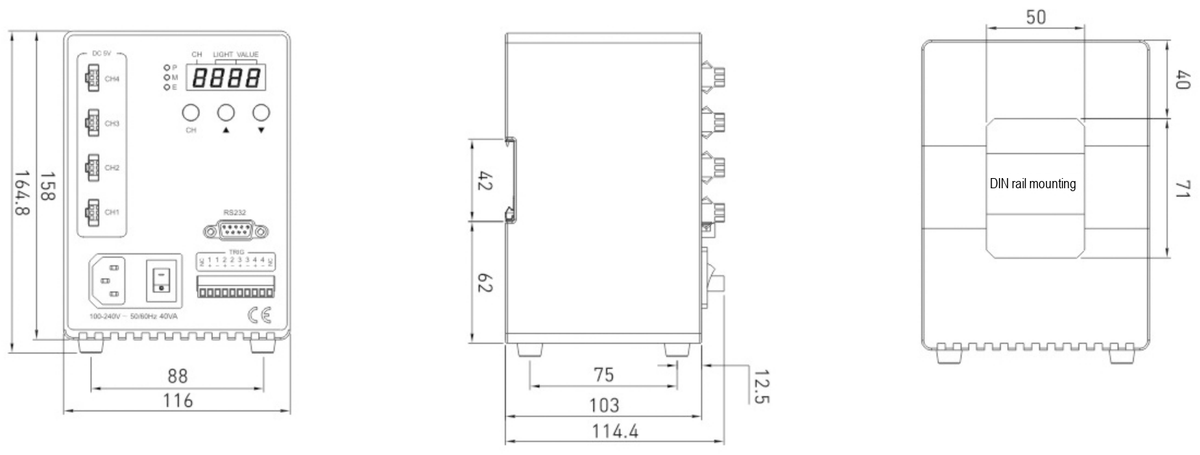

Dimensions (mm)116 W x 164.8 H (158 body) x 114.4 D (103 / 75; DIN clasp 50 x 71)
