Analog controller, 2 ch, 60 W, 36 W (LS-CTL-0132)

Model LS-CTL-0132

Channels2CH
OutputDC12-24V
Total output60W
Controlanalog knob (stepless)

$249.00

Ships in 2-3 weeks

1.05 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

A constant voltage system to achieve stepless adjustment, used with 24V light sources. Adopts a high-speed isolated optocoupler voltage trigger design, effectively enhancing the trigger response time.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0132
Dimming method	Stepless adjustment
Optional accessories	AC power cord
Lighting mode	Continuous / strobe
Control	analog knob (stepless)

Electrical

Drive mode	Constant voltage
Output voltage	DC12-24V
Trigger delay time	<80us
Voltage input	AC100-240V
Number of channels	2CH
Max output current/CH	1.5A
Max output power/CH	36W
Total output power	60W
Trigger function	Yes
Trigger input	DC5-24V

Mechanical

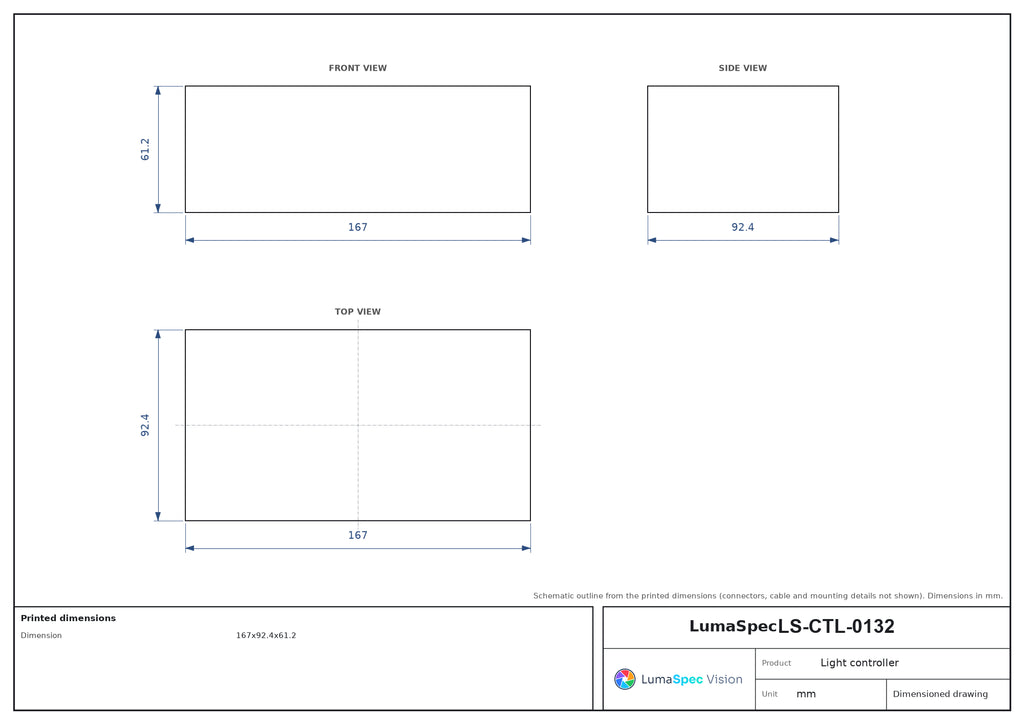

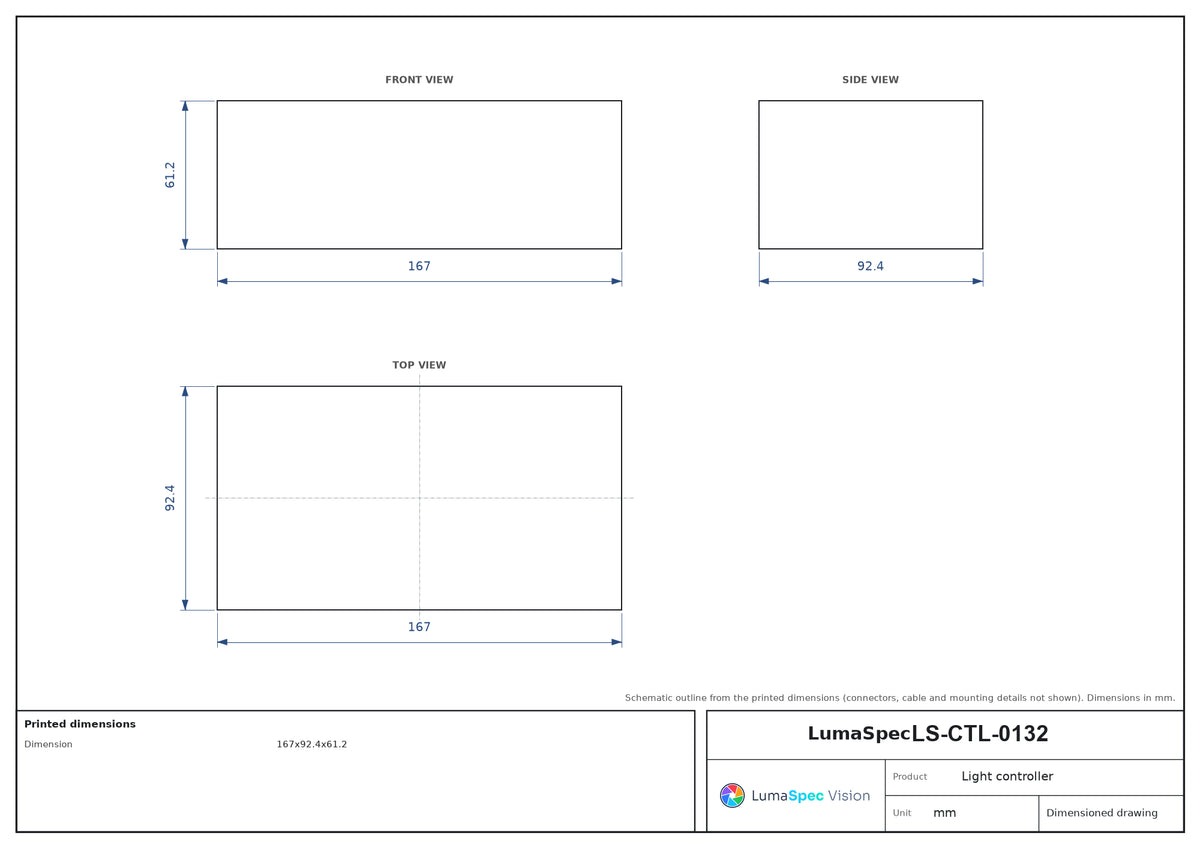

Dimension (mm)	167x92.4x61.2
Weight (g)	750

Other models in the Analog controller (LS-CTL-S23) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0128	2 ch, 36 W	$239.00	Ships in 2-3 weeks	View
LS-CTL-0129	2 ch, 36 W	$239.00	Ships in 2-3 weeks	View
LS-CTL-0130	4 ch, 36 W	$309.00	Ships in 2-3 weeks	View
LS-CTL-0131	4 ch, 36 W	$309.00	Ships in 2-3 weeks	View
LS-CTL-0133	4 ch, 60 W	$319.00	Ships in 2-3 weeks	View
