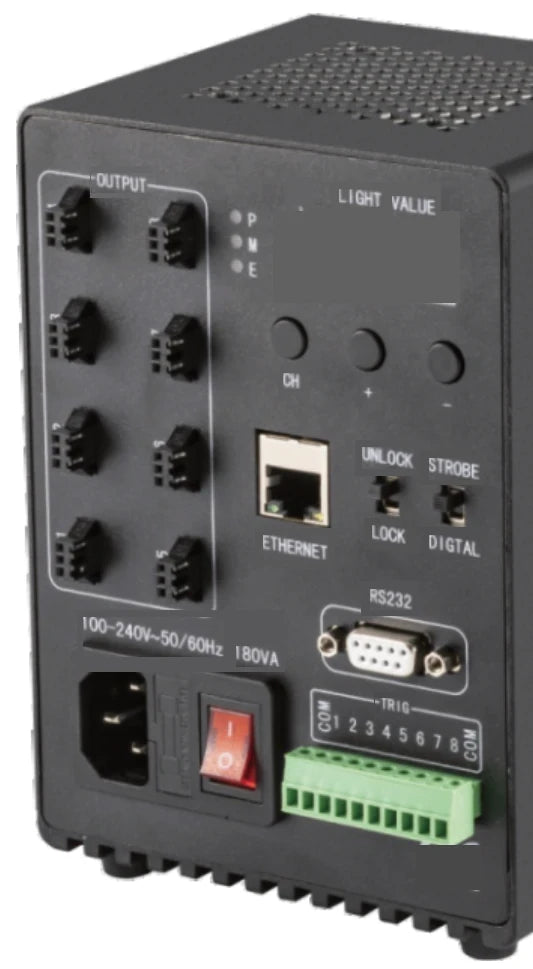

Dust proof controller, 8 ch, 120 W
LS-CTL-0456
- Channels 8
- Output 24V
- Input AC 100-240V
$669.00
Ships in 2-3 weeks
Light controllers
Light controllers
Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.
Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers
Products

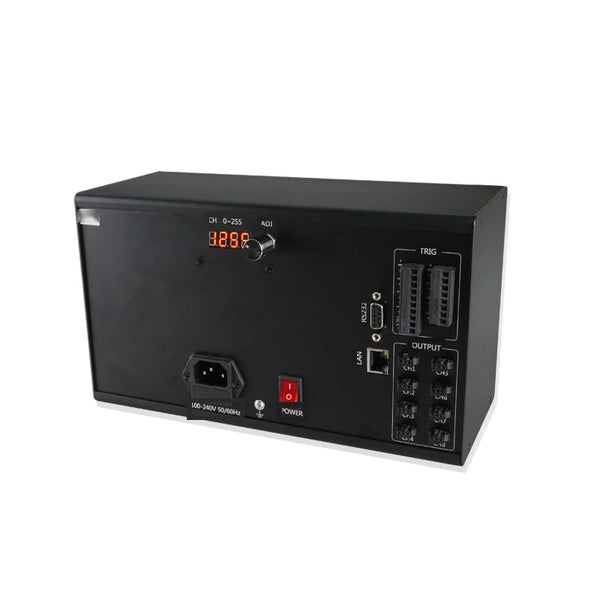

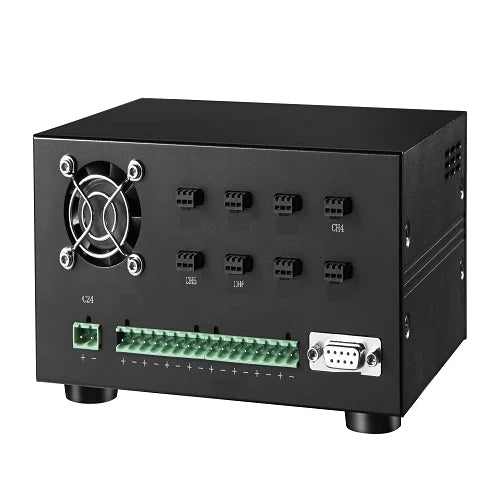

8 channel digital LED light controller, 8 ch
LS-CTL-0553
- Channels 8
- Output 24v
- Control RS-232
$519.00
Ships in 2-3 weeks

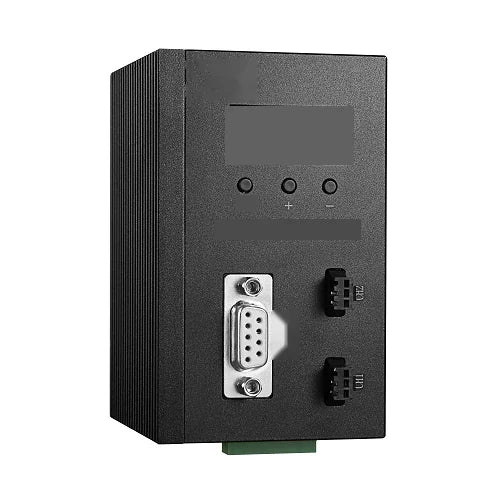

2 channel low-current light controller, 2 ch
LS-CTL-0549
- Channels 2
- Output 5v
- Control RS-232
$349.00
Ships in 2-3 weeks

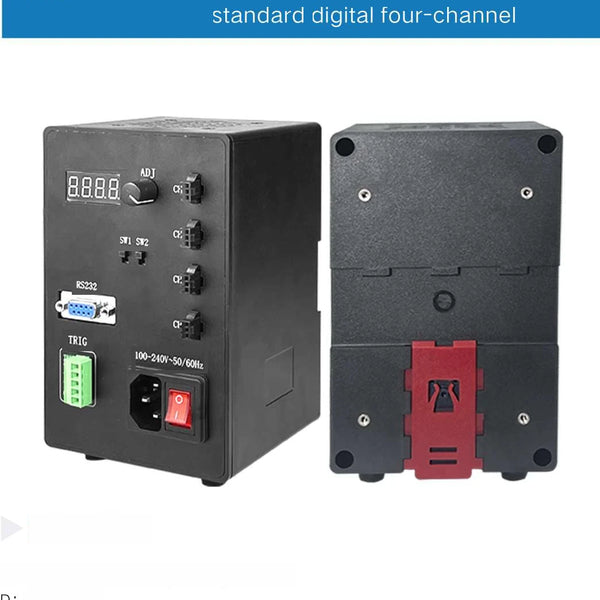

Standard digital controller, box type, 4 ch, 60 W
LS-CTL-0378
- Channels 4
- Output DC 24V
- Input AC100-240V 50/60Hz
$469.00
Ships in 2-3 weeks
Standard digital controller, box type, 2 ch, 60 W
LS-CTL-0377
- Channels 2
- Output DC 24V
- Input AC100-240V 50/60Hz
$369.00
Ships in 2-3 weeks
Dust proof controller, 1 ch, 240 W
LS-CTL-0458
- Channels 1
- Output 24V
- Input AC 100-240V
$269.00
Ships in 2-3 weeks
Dust proof controller, 1 ch, 480 W
LS-CTL-0459
- Channels 1
- Output 24V
- Input AC 100-240V
$519.00
Ships in 2-3 weeks

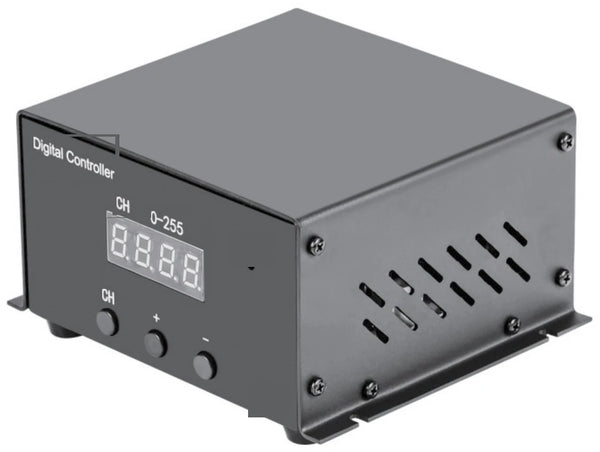

Digital controller, LS-CTL-S69 series, 4 ch
LS-CTL-0376
- Channels 4
- Output DC 24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
Digital controller, LS-CTL-S69 series, 4 ch, 120 W
LS-CTL-0374
- Channels 4
- Output DC 24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
DPCM combined digital controller, 4 ch, 60 W
LS-CTL-0369
- Total output 60 W
- Control digital display / RS232 / EIA485
- Output Constant current
$319.00
Ships in 2-3 weeks
Digital controller, LS-CTL-S69 series, 4 ch, 120 W
LS-CTL-0373
- Channels 4
- Output DC 24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
DPCL multi-function digital controller, 4 ch, 80 W
LS-CTL-0367
- Channels 4 channel
- Output 24V
- Input AC 100-240V
$469.00
Ships in 2-3 weeks

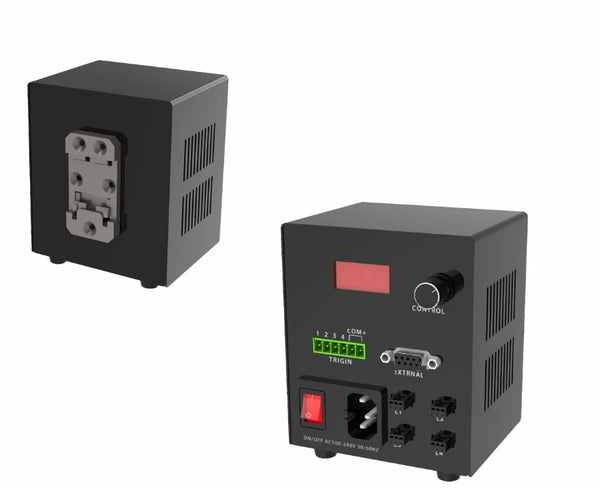

DPCS digital controller, 4 ch, 60 W
LS-CTL-0370
- Channels 4CH
- Total output 60 W
- Control digital display / RS232
$319.00
Ships in 2-3 weeks
Digital controller, LS-CTL-S69 series, 4 ch
LS-CTL-0372
- Channels 4
- Output DC 24V
- Input AC100-240V 50/60Hz
$359.00
Ships in 2-3 weeks
DPCL multi-function digital controller, 4 ch, 60 W
LS-CTL-0368
- Channels 4 channel
- Output 24V
- Input AC 100-240V
$459.00
Ships in 2-3 weeks

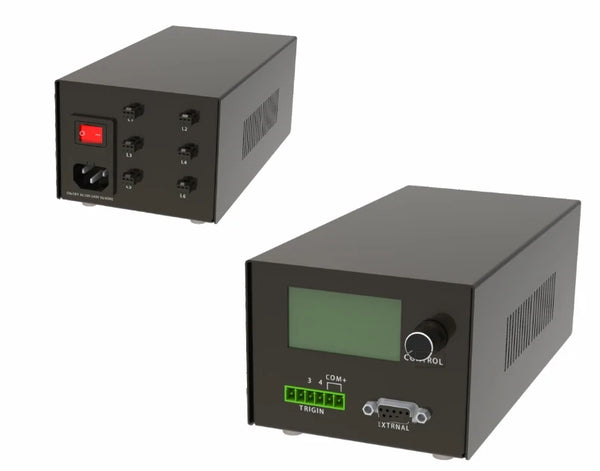

DPC digital controller, 6 ch, 100 W
LS-CTL-0330
- Channels 6 ch
- Output 24V
- Input AC 100-240V
$569.00
Ships in 2-3 weeks
DPC digital controller, 4 ch, 60 W
LS-CTL-0329
- Channels 4 ch
- Output 24V
- Total output 60W
$459.00
Ships in 2-3 weeks
Third generation four channel standard digital controller, 4 ch, 60 W, max. power output/channel 2.5 A
LS-CTL-0285
- Channels 4
- Total output 60 W
- Control 9600
$319.00
Ships in 2-3 weeks

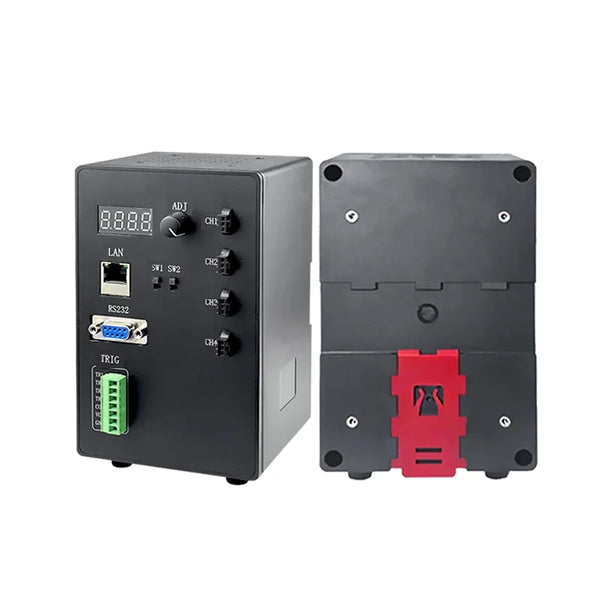

Third generation four channel standard digital controller, 4 ch, 120 W, 115.8 x 100 x 163 mm
LS-CTL-0287
- Channels 4
- Total output 120W
- Control 9600
$349.00
Ships in 2-3 weeks
High power digital controller (DCS2, network option), 2 ch, 800 W
LS-CTL-0266
- Channels 2
- Total output 800 W
- Control digital
$1,089.00
Ships in 2-3 weeks
High power digital controller (DCS2, network option), 1 ch, 1000 W
LS-CTL-0257
- Channels 1
- Total output 1000 W
- Control digital
$1,189.00
Ships in 2-3 weeks
Third generation four channel standard digital controller, 4 ch, 12 W
LS-CTL-0282
- Channels 4
- Total output 12 W
- Control 9600
$299.00
Ships in 2-3 weeks
High power digital controller (DCS2, network option), 2 ch, 1000 W
LS-CTL-0267
- Channels 2
- Total output 1000 W
- Control digital
$1,249.00
Ships in 2-3 weeks
Third generation four channel standard digital controller, 4 ch, 12 W
LS-CTL-0283
- Channels 4
- Total output 12 W
- Control 9600
$299.00
Ships in 2-3 weeks
How to choose a machine vision light controller
1. Channels
One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.
2. Power per channel
Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.
3. Constant, strobe or overdrive
Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.
4. How it is set
Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.
5. Voltage and connectors
Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
