Light controllers

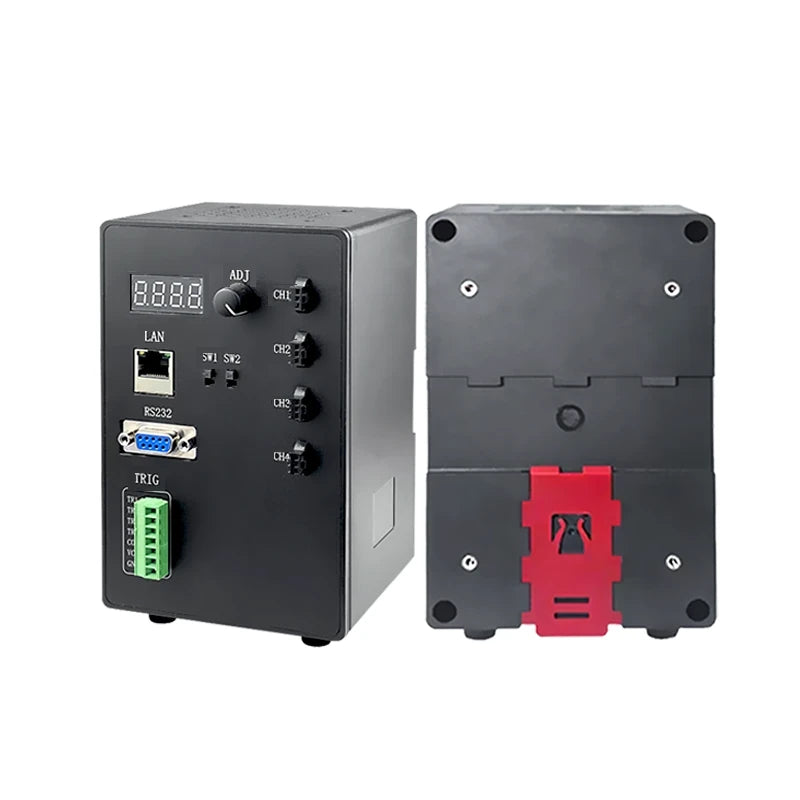

Third generation four channel standard digital controller, 4 ch, 120 W, 115.8 x 100 x 163 mm (LS-CTL-0287)
Model LS-CTL-0287
- Channels4
- Total output120W
- Control9600
- OutputConstant current
$349.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Third generation 4-channel standard digital constant-current controller: multiple trigger modes, abnormal light source protection, automatic adaptation of light source power, per-channel power setting and strobe time 1-999.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0287 |
|---|---|
| Control mode | Constant current driven type |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (communication through RS232 serial port) |
| Type | Digital Standard |
| Remarks | With power supply |
Interfaces and I/O
| RS232 communication baud rate | 9600 |
|---|
Light
| Luminance level memory | yes (automatic memory in 3 seconds after adjustment) |
|---|---|
| Adjustable brightness level | 0-255 level (adjust manually by encoder or by PC software) |
| Automatic detection of light source power | yes (select manually or by command) |
Environment and compliance
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
|---|---|
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
| Operating temperature | -10~50 ℃ |
| Operating humidity | 20~80% |
| Storage temperature | -20~70℃ |
| Storage humidity | 10~90% |
Electrical
| Max. power output/channel | 2.5A |
|---|---|
| External trigger mode | Passive triggering (effective trigger voltage range 5-24V DC) |
| Four trigger modes | High level trigger, low level trigger, upper open (rising) edge trigger, falling edge trigger; on edge triggering the luminescence duration can be set in the upper computer software from 1-999ms |
| External trigger delay time | H, ON→OFF <80us |
| External trigger frequency | <1/T (e.g. T=1ms gives at most 1KHz) |
| Short-circuit protection | yes: the corresponding channel output is automatically closed |
| Overcurrent protection | yes: beyond 2.8A all channels are automatically closed and X.Errl (X = channel) is displayed; restart and restore after the exception condition is removed |
| Output power of each channel can be adjusted | yes (by power level, ranging from 1 to 25) |
| Standby power consumption | <5W |
| Current | DC |
| Input Volt | AC240V |
| Output Volt | 24V |
| Output Power Per Channel | 80W |
| Output Power Total Power | 120W |
| Trigger | Yes |
| Input Volt | 100-200VAC |
| Total output power | 120W |
| Channels | 4 |
Mechanical
| Boundary dimension (mm) | 115.8*100*163mm (LxWxH) |
|---|---|
| Shipping weight | 0.90 kg |
