Third generation four channel standard digital controller (LS-CTL-S55)

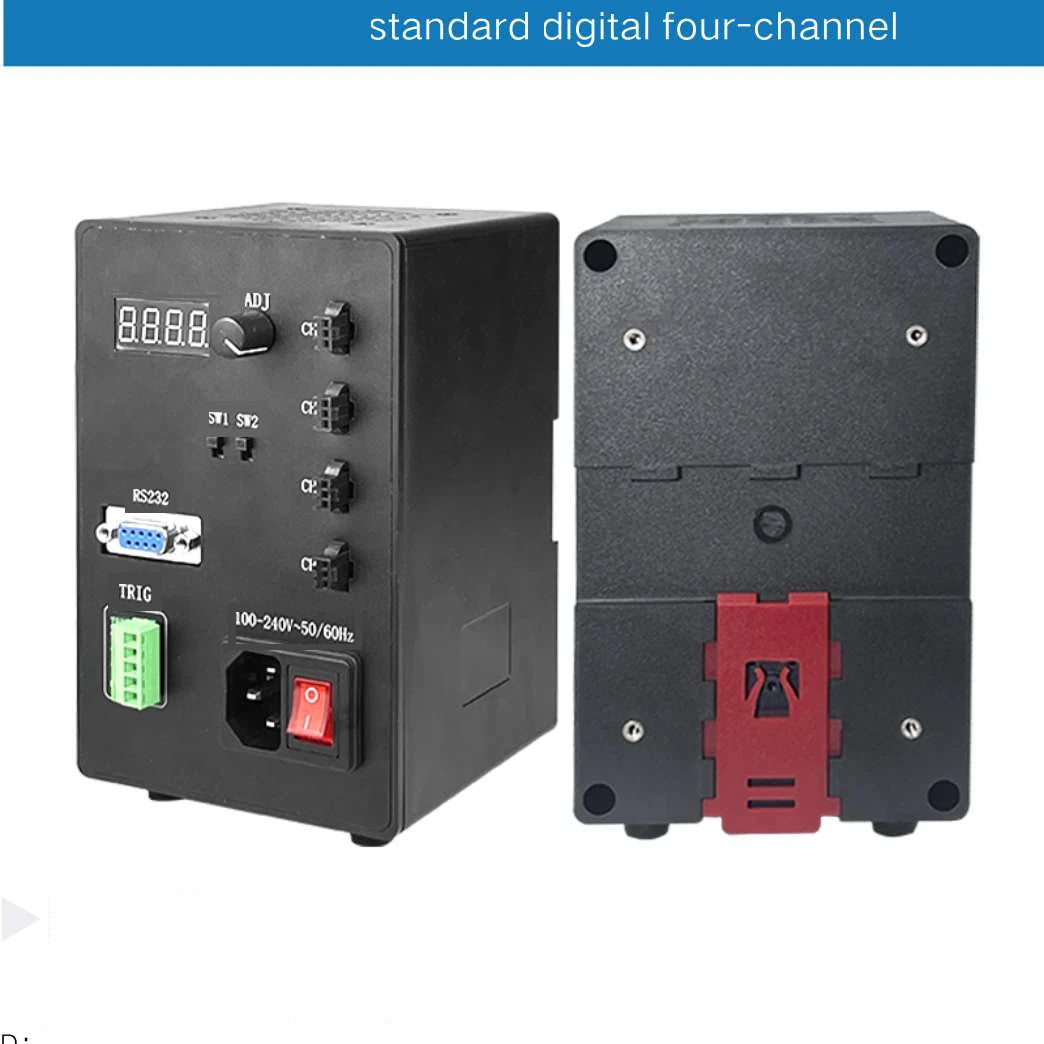

Representative photo of this series

Light controllers

Third generation four channel standard digital controller, 4 ch, 60 W, max. power output/channel 2.5 A (LS-CTL-0285)

Model LS-CTL-0285

Channels4
Total output60 W
Control9600
OutputConstant current

$319.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Third generation 4-channel standard digital constant-current controller: multiple trigger modes, abnormal light source protection, automatic adaptation of light source power, per-channel power setting and strobe time 1-999.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0285
Control mode	Constant current driven type
Manual adjustment	yes (adjust by key)
Remote adjustment	yes (communication through RS232 serial port)
Type	Digital Standard
Remarks	With power supply

Interfaces and I/O

RS232 communication baud rate	9600

Light

Luminance level memory	yes (automatic memory in 3 seconds after adjustment)
Adjustable brightness level	0-255 level (adjust manually by encoder or by PC software)
Automatic detection of light source power	yes (select manually or by command)

Environment and compliance

Work environment	Temperature: -10~50 °C, Humidity: 20~80%
Storage environment	Temperature: -20~70 °C, Humidity: 10~90%

Electrical

Max. power output/channel	2.5A
External trigger mode	Passive triggering (effective trigger voltage range 5-24V DC)
Four trigger modes	High level trigger, low level trigger, upper open (rising) edge trigger, falling edge trigger; on edge triggering the luminescence duration can be set in the upper computer software from 1-999ms
External trigger delay time	H, ON→OFF <80us
External trigger frequency	<1/T (e.g. T=1ms gives at most 1KHz)
Short-circuit protection	yes: the corresponding channel output is automatically closed
Overcurrent protection	yes: beyond 2.8A all channels are automatically closed and X.Errl (X = channel) is displayed; restart and restore after the exception condition is removed
Output power of each channel can be adjusted	yes (by power level, ranging from 1 to 25)
Standby power consumption	<5W
Current	DC
Input Volt	AC240V
Output Volt	24V
Output Power Per Channel	60W
Trigger	Yes
Channels	4
Total output (W)	60

Mechanical

Boundary dimension (mm)	115.8100163mm (LxWxH)
Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-CTL-0285 · 1.4 MB

Features

Small volume
Exquisite appearance
Multiple trigger modes (high level, low level, rising edge, falling edge)
Abnormal light source protection
Automatic adaptation of light source power
The channel power can be set
Strobe time 1-999 can be set
Multiple trigger modes.
Abnormal light source protection.
Automatic adaptation of light source power.
Automatic memory function, no data loss during power outage.
Very stable output and no flicker.

Applications

Powering machine vision LED light sources, brightness control and strobe (trigger) control

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
