Light controllers

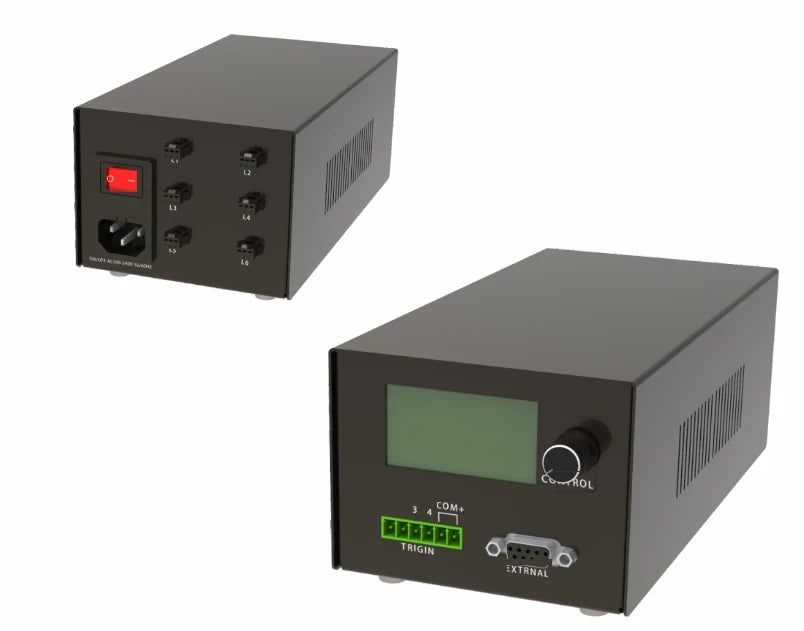

DPCM combined digital controller, 4 ch, 60 W (LS-CTL-0369)
Model LS-CTL-0369
- Total output60 W
- Controldigital display / RS232 / EIA485
- OutputConstant current
- Channels4 channels
$319.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The DPCM controller combines constant current output (5V) and PWM output (24V), offering the functions of both a digital controller and a constant current controller. Can be used in various environments.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0369 |
|---|---|
| Lighting mode | Continuous mode/ strobe mode |
| Dimming method | PWM Control and Lighting Duration Control |
| PWM frequency | 62.5KHz, 125KHz optional |
| Status | OK(work), OCP(Overload/Short-circuit protection) |
| Standard accessories | AC Cable |
| Optional accessories | RS-232 Communication Cable (3 meters) |
| Control | digital display / RS232 / EIA485 |
Electrical
| Drive mode | Constant Voltage/Constant Current |
|---|---|
| Number of channels | 4 Channels (L1 &L2 is Constant Voltage, L3&L4 is Constant Current) |
| Overcurrent protection | total output power exceeds 60W, turning the power back on will restore it. |
| Rated input voltage | AC 100V~240V |
| Trigger input voltage | 3~24V |
| Rated output power | Total 60W for 4 Channels, 48W for L1/L2, 3W for L3/L4 |
| Total output (W) | 60 |
Mechanical
| Shipping weight | 0.50 kg |
|---|
