2 channel low-current light controller, 2 ch (LS-CTL-0549)
  • 2 channel low-current light controller, 2 ch (LS-CTL-0549)

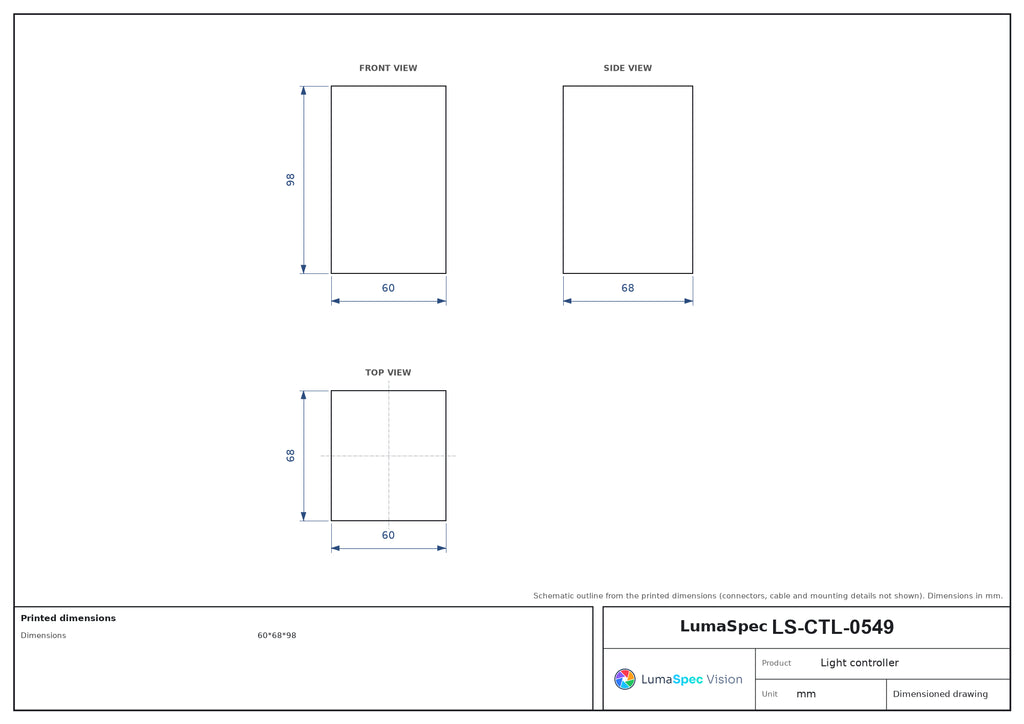

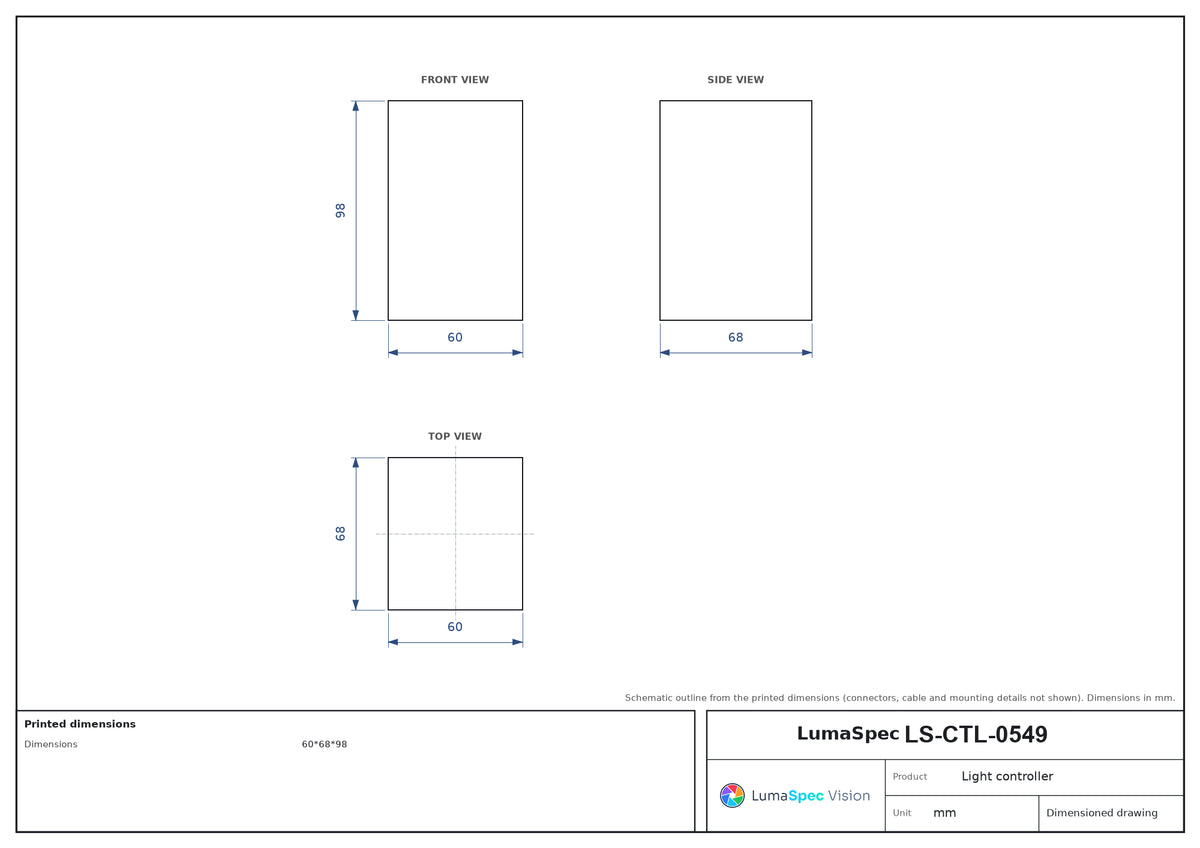

  • LS-CTL-0549 dimensions (mm)

Light controllers

2 channel low-current light controller, 2 ch (LS-CTL-0549)

Model LS-CTL-0549

  • Channels2
  • Output5v
  • ControlRS-232
  • TriggerContinuous,Switched,Strobe
$349.00

Ships in 2-3 weeks

0.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2 channel low-current light controller, 2 ch (LS-CTL-0549)LS-CTL-0549

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2 channel low-current light controller with power supply DC24V, max.output current of each channel 0~5mA, max.output voltage of each channel 5v, channels 2, intensity levels 0~255.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0549
Intensity levels0~255
ControlDigital, 256 levels (0~255), RS-232

Interfaces and I/O

Communication portRS-232

Environment and compliance

Operating environmentTemperature 0~40°C / Humidity 25%~85%

Electrical

Power supplyDC24V
Max. output current of each channel0~5mA
Max. output voltage of each channel5v
Channels2
External trigger modeContinuous,Switched,Strobe
External trigger voltage5~24V
Internal output pulse-width1ms-999ms,in steps of 1ms
Baud rate and data format9600/data bit, 8/stop bit, 1/no parity

Mechanical

Installation modeDIN
Dimensions (mm)60*68*98
Weight0.45Kg
