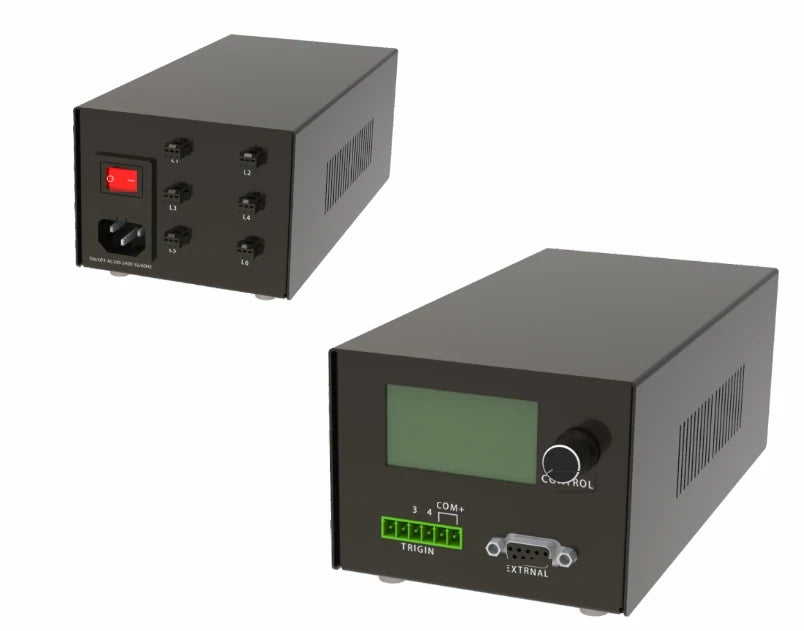

Representative photo of this series

Light controllers

DPCL multi-function digital controller, 4 ch, 80 W (LS-CTL-0367)

Model LS-CTL-0367

Channels4 channel
Output24V
InputAC 100-240V
Total output80W
ControlRS232/EIA485

$469.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

DPCL digital multi-function controller for standard 24V light. High-frequency PWM output, 1024-level brightness adjustment, storage for 16 sets of brightness data, multiple trigger modes (CM, SM, FM), external high-speed strobe triggering, with serial port.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0367
Adjustment method	PWM control 0-1023 level
PWM frequency	Selectable high and low operating frequencies
ID setting	TD: 0-99 (When using EIA-485, one PC can control multiple controllers, up to 100.
Light on/ light off	Configurable by trigger timing or RS232/EIA-485
Control	digital display / RS232 / EIA485, 16 stored brightness sets

Interfaces and I/O

Communication interface	RS232/EIA485

Environment and compliance

Operating environment	Temperature: 0-40°C, Humidity: 20-85%

Electrical

Input voltage	AC 100-240V
Output voltage	24V
Single channel output power	48W
Trigger output voltage	DC5-24V
Trigger delay	8us
Overload protection	110% (Restore after power-off and restart)
Number of channels	4 channel
Trigger modes	CM (Cyclic Mode), SM (Synchronous Mode), FM (Cyclic Mode 2)
Total output power	80W

Mechanical

Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-CTL-0367 · 774 KB

Features

Large Screen Display Design, easy operation.
1024 Level Brightness Adjustment.
16 sets of brightness data, manually/communication control.
Built-in Soft Trigger, light on/off through external communication.
Multiple triggering modes, including CM (Cyclic Mode), SM (Synchronous Mode), and FM (Cyclic Mode 2).
High-speed optocoupler extends light life via strobing.
With serial ports (RS232/RS485/RJ45 Optional), can be remotely operated
DIN rail or bottom mount options.

Applications

Used for 24v light.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the DPCL multi-function digital controller (LS-CTL-S65) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0368	4 ch, 60 W	$459.00	Ships in 2-3 weeks	View
