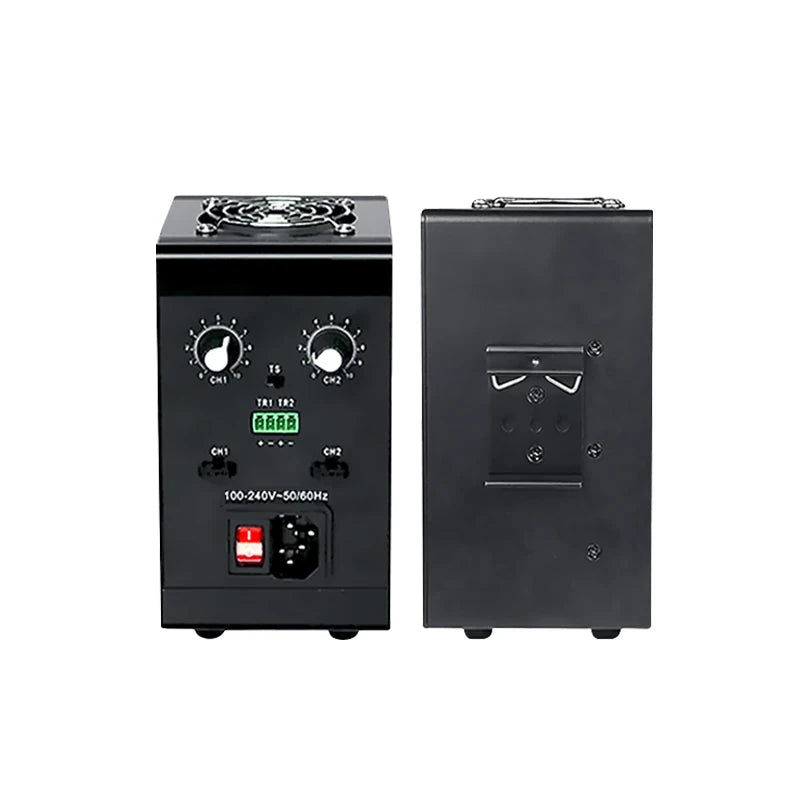

Two / four channel standard analog controller, 2 ch, 6 W (LS-CTL-0106)
  • Two / four channel standard analog controller, 2 ch, 6 W (LS-CTL-0106)
  • LS-CTL-0106 dimensions (mm)

Light controllers

Two / four channel standard analog controller, 2 ch, 6 W (LS-CTL-0106)

Model LS-CTL-0106

  • Channels2
  • OutputDC14V~24V
  • Total output6 W
  • ControlAnalog
$229.00

Ships in 2-3 weeks

0.85 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Two / four channel standard analog controller, 2 ch, 6 W (LS-CTL-0106)LS-CTL-0106

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Second generation standard analog constant-current controller with 2 or 4 channels, brightness adjusted by potentiometer (electrodeless), passive external trigger, 100-220VAC input. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0106
Control modeConstant current
TypeAnalog Standard

Light

Adjust brightness level rangeElectrodeless (adjust by potentiometer)

Environment and compliance

Work environmentTemperature: -10~50 °C, Humidity: 20~80%
Storage environmentTemperature: -20~70 °C, Humidity: 10~90%
Operating temperature-10~50 ℃
Operating humidity20~80%
Storage temperature-20~70℃
Storage humidity10~90%

Electrical

Output voltage rangeDC14V~24V
External trigger modePassive triggering (effective trigger voltage range 5-24V DC)
External trigger delay timeH, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger)
External trigger frequency<1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz)
Standby power consumption<3W
CurrentDC
Input VoltAC220V
Output Volt5V
Output Power Per Channel3W
TriggerYes
Input Volt100-200VAC
Channels2
Total output (W)6

Mechanical

Boundary dimension (mm)135x85x158mm (LxWxH)
Weight0.9Kg

Other models in the Two / four channel standard analog controller (LS-CTL-S20) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0107 2 ch, 60 W $249.00 Ships in 2-3 weeks View
LS-CTL-0108 2 ch, 120 W $289.00 Ships in 2-3 weeks View
LS-CTL-0109 4 ch, 60 W $319.00 Ships in 2-3 weeks View
LS-CTL-0110 4 ch, 120 W $349.00 Ships in 2-3 weeks View
