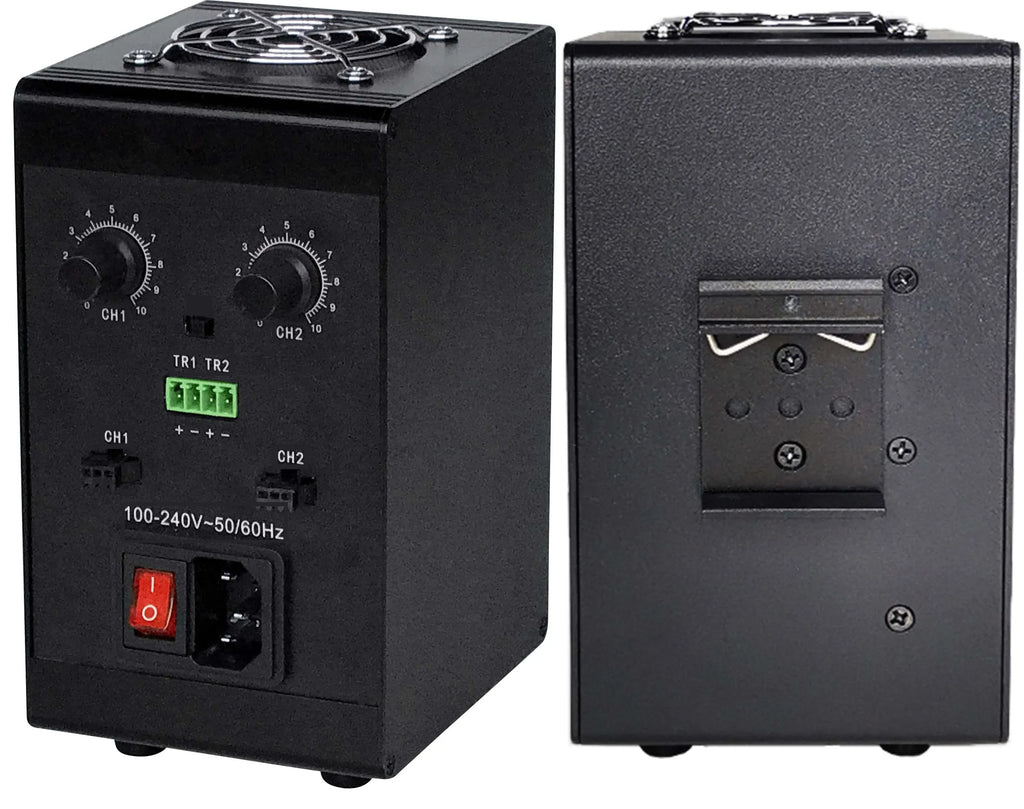

Representative photo of this series
Light controllers
Two / four channel standard analog controller, 2 ch, 120 W (LS-CTL-0108)
Model LS-CTL-0108
- Channels2
- OutputDC14V~24V
- Input100-220VAC
- Total output120 W
$289.00
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Second generation standard analog constant-current controller with 2 or 4 channels, brightness adjusted by potentiometer (electrodeless), passive external trigger, 100-220VAC input. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0108 |
|---|---|
| Control mode | Constant current |
Light
| Adjust brightness level range | Electrodeless (adjust by potentiometer) |
|---|
Environment and compliance
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
|---|---|
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
Electrical
| Input voltage | 100-220VAC |
|---|---|
| Output voltage range | DC14V~24V |
| External trigger mode | Passive triggering (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger) |
| External trigger frequency | <1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz) |
| Standby power consumption | <3W |
| Power/CH | 60W |
| Output voltage | 24V |
| External trigger | yes |
| Channels | 2 |
| Total output (W) | 120 |
Mechanical

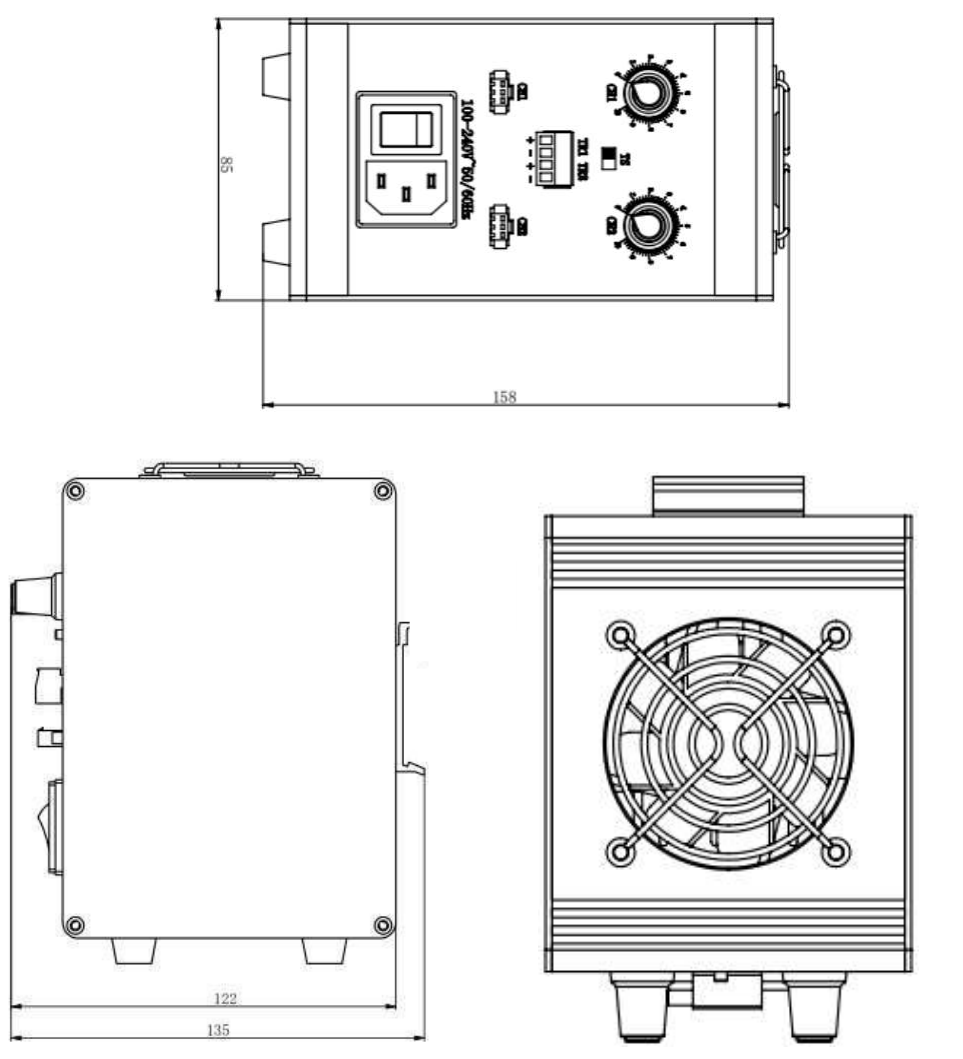

| Boundary dimension (mm) | 135x85x158mm (LxWxH) |
|---|---|
| Weight | 0.9Kg |
Other models in the Two / four channel standard analog controller (LS-CTL-S20) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0106 | 2 ch, 6 W | $229.00 | Ships in 2-3 weeks | View |
| LS-CTL-0107 | 2 ch, 60 W | $249.00 | Ships in 2-3 weeks | View |
| LS-CTL-0109 | 4 ch, 60 W | $319.00 | Ships in 2-3 weeks | View |
| LS-CTL-0110 | 4 ch, 120 W | $349.00 | Ships in 2-3 weeks | View |
