Representative photo of this series
Light controllers
High-power constant-current controller, 1 ch, 320 W (LS-CTL-0166)
Model LS-CTL-0166
- Channels1
- OutputDC 48V
- InputAC200-240V 50/60Hz
- Total output320 W
$539.00
Ships in 2-3 weeks
4.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-power constant-current controller combining constant-on and ON/OFF lighting, with digital display, RS232 and Ethernet communication, screw mounting and a high-speed optocoupler trigger input.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0166 |
|---|---|
| Drive method | Constant current |
| Light control mode | Variable current control; panel buttons / RS232 / Ethernet |
| Cooling method | Forced cooling |
| FG terminal | Controller chassis ground |
| Indicators | Power lit at normal power-on; channel indicator lit when a light is connected |
| Buttons | CH = function switch (H1 = constant-on mode, H0 = constant-off mode); + increase; - decrease |
Environment and compliance
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
|---|---|
| Storage temp/humidity | -20~60 °C, 20~85 %RH (non-condensing) |
Electrical
| Output voltage | DC 48V |
|---|---|
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <100us |
| Input voltage | AC200-240V 50/60Hz |
| Channels | 1 |
| Max output current | 6.8A |
| Total power | 320W |
| Output port | dia.16 6-pin aviation connector |
| Trigger port | 1+ / 1- (CH1 external trigger positive / negative); DC5-24V, optocoupler isolated, NPN or PNP |
| Total output (W) | 320 |
Mechanical
| Mounting | Screw: 4-M3 fixing holes under the feet (remove the feet to install) |
|---|---|
| Weight | 3850g or less |
| Dimensions | 113.5 x 285 x 129 mm |

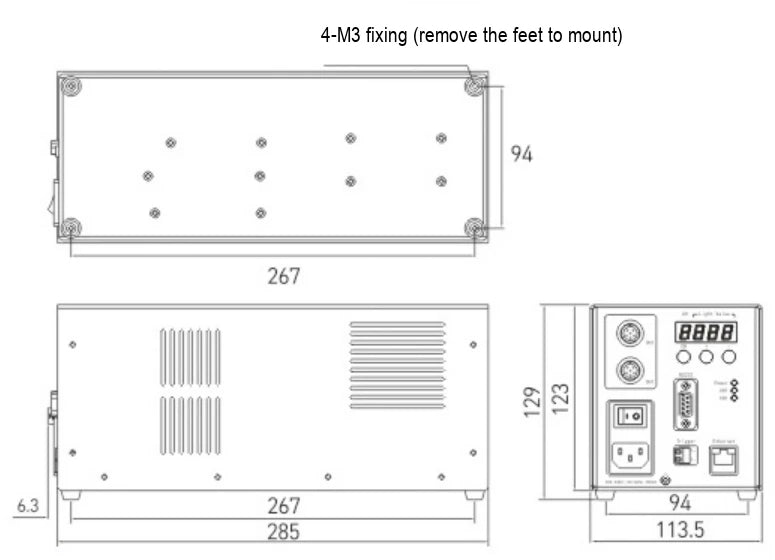

| Dimensions (mm) | 285 L (267 body; 6.3 front) x 113.5 W (94 holes) x 129 H (123 panel); 4-M3 mounting under feet |
Other models in the High-power constant-current controller (LS-CTL-S38) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0167 | 1 ch, 760 W | $829.00 | Ships in 2-3 weeks | View |
