Flat Backlight with Center Hole, 264 x 194 mm, White
LS-BKL-1520
- Colour White
- Emitting area 250 mm × 180 mm
- Size 264 mm × 194 mm × 21 mm
$589.00
Ships in 2-3 weeks
Lights

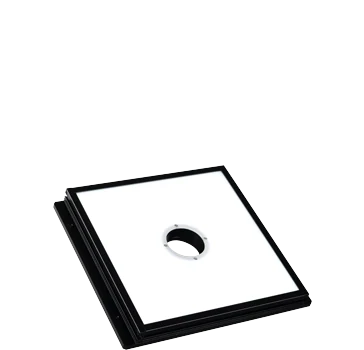

Backlights with a center hole
Separate aperture size from panel sizeCompare backlights cataloged with a center opening for inspection layouts that need access through the panel. Check the actual aperture drawing, emitting area and rear clearances for each model.
Products
Flat Backlight with Center Hole, 334 x 214 mm, White
LS-BKL-1514
- Colour White
- Emitting area 300 mm × 200 mm
- Size 334 mm × 214 mm × 20 mm
$709.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 670 x 670 mm, White
LS-BKL-1421
- Colour White
- Emitting area 620 mm × 620 mm
- Size 670 mm × 670 mm × 22 mm
$2,219.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 465 x 363 mm, White
LS-BKL-1420
- Colour White
- Emitting area 450 mm × 320 mm
- Size 465 mm × 363 mm × 40 mm
$1,009.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 315 x 315 mm, White
LS-BKL-1419
- Colour White
- Emitting area 300 mm × 300 mm
- Size 315 mm × 315 mm × 20 mm
$939.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 274 x 254 mm, White
LS-BKL-1418
- Colour White
- Emitting area 240 mm × 240 mm
- Size 274 mm × 254 mm × 20 mm
$689.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 192 x 192 mm, White
LS-BKL-1417
- Colour White
- Emitting area 180 mm × 180 mm
- Size 192 mm × 192 mm × 19 mm
$469.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 192 x 192 mm, Blue
LS-BKL-1416
- Colour Blue
- Emitting area 180 mm × 180 mm
- Size 192 mm × 192 mm × 19 mm
$469.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 82 x 63.2 mm
LS-BKL-1108
- Emitting area 50 mm × 50 mm
- Size 82 mm × 63.2 mm × 19 mm
- Voltage 24 VDC
$209.00
Ships in 2-3 weeks
Square back light with hole, 250 x 200 x 19 mm
LS-BKL-1000
- Colour Red, Blue, Green, White
- Emitting area 236 x 186 mm
- Size L250xW200xH19(mm)
$409.00
Ships in 2-3 weeks
Square back light with hole, 236 x 194 x 21 mm
LS-BKL-0999
- Colour Red, Blue, Green, White
- Emitting area 200 x 180 mm
- Size L236xW194xH21mm
$379.00
Ships in 2-3 weeks
Square back light with hole, 214 x 114 x 21 mm
LS-BKL-0998
- Colour Red, Blue, Green, White
- Emitting area 200 x 100 mm
- Size L214xW114xH21(mm)
$259.00
Ships in 2-3 weeks
Square back light with hole, 154 x 154 x 19 mm
LS-BKL-0997
- Colour Red, Blue, Green, White
- Emitting area 140 x 140 mm
- Size L154xW154xH19(mm)
$249.00
Ships in 2-3 weeks
Square back light with hole, 146 x 124 x 21 mm
LS-BKL-0996
- Colour Red, Blue, Green, White
- Emitting area 110 x 110 mm
- Size L146xW124xH21(mm)
$219.00
Ships in 2-3 weeks
Square back light with hole, 104 x 104 x 21 mm
LS-BKL-0995
- Colour Red, Blue, Green, White
- Emitting area 90 x 90 mm
- Size L104xW104xH21(mm)
$179.00
Ships in 2-3 weeks
Hole backlight
LS-BKL-0692
- Size L214mm*W164mm*H21mm
- Type With centre hole
- Voltage 24 V
$439.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 450 x 320 mm, White, 198 W
LS-BKL-1408
- Colour White
- Emitting area 450 mm × 320 mm
- Size 488 mm × 335 mm × 21 mm
$1,379.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 400 x 300 mm, White, 83 W
LS-BKL-1404
- Colour White
- Emitting area 400 mm × 300 mm
- Size 438 mm × 315 mm × 21 mm
$1,209.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm
LS-BKL-1390
- Colour Infrared
- Emitting area 250 mm × 250 mm
- Size 282 mm × 263 mm × 19 mm
$739.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 250 x 250 mm, Red, 48 W
LS-BKL-1391
- Colour Red
- Emitting area 250 mm × 250 mm
- Size 282 mm × 263 mm × 19 mm
$739.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 300 x 200 mm, Red
LS-BKL-1396
- Colour Red
- Emitting area 300 mm × 200 mm
- Size 332 mm × 213 mm × 19 mm
$719.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 300 x 200 mm, White, 54 W
LS-BKL-1397
- Colour White
- Emitting area 300 mm × 200 mm
- Size 332 mm × 213 mm × 19 mm
$719.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 250 x 200 mm, White, 53 W
LS-BKL-1387
- Colour White
- Emitting area 250 mm × 200 mm
- Size 282 mm × 213 mm × 19 mm
$639.00Quote
Ships in 2-3 weeks
Flat Backlight with Center Hole, 200 x 200 mm, White, natural cooling
LS-BKL-1379
- Colour White
- Emitting area 200 mm × 200 mm
- Size 232 mm × 213 mm × 18 mm
$549.00Quote
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-BKL-1520Flat Backlight with Center Hole, 264 x 194 mm, White
| White | 250 mm × 180 mm | 264 mm × 194 mm × 21 mm | 41.76 W | - | - | $589.00 | Ships in 2-3 weeks | |
 LS-BKL-1514Flat Backlight with Center Hole, 334 x 214 mm, White
| White | 300 mm × 200 mm | 334 mm × 214 mm × 20 mm | 45.6 W | - | - | $709.00 | Ships in 2-3 weeks | |
 LS-BKL-1421Flat Backlight with Center Hole, 670 x 670 mm, White
| White | 620 mm × 620 mm | 670 mm × 670 mm × 22 mm | 230.4 W | - | - | $2,219.00 | Ships in 2-3 weeks | |
 LS-BKL-1420Flat Backlight with Center Hole, 465 x 363 mm, White
| White | 450 mm × 320 mm | 465 mm × 363 mm × 40 mm | 165.6 W | - | - | $1,009.00 | Ships in 2-3 weeks | |
 LS-BKL-1419Flat Backlight with Center Hole, 315 x 315 mm, White
| White | 300 mm × 300 mm | 315 mm × 315 mm × 20 mm | 65.52 W | - | - | $939.00 | Ships in 2-3 weeks | |
 LS-BKL-1418Flat Backlight with Center Hole, 274 x 254 mm, White
| White | 240 mm × 240 mm | 274 mm × 254 mm × 20 mm | 46.44 W | - | - | $689.00 | Ships in 2-3 weeks | |
 LS-BKL-1417Flat Backlight with Center Hole, 192 x 192 mm, White
| White | 180 mm × 180 mm | 192 mm × 192 mm × 19 mm | 40 W | - | - | $469.00 | Ships in 2-3 weeks | |
 LS-BKL-1416Flat Backlight with Center Hole, 192 x 192 mm, Blue
| Blue | 180 mm × 180 mm | 192 mm × 192 mm × 19 mm | 40 W | 465 nm | - | $469.00 | Ships in 2-3 weeks | |
 LS-BKL-1108Flat Backlight with Center Hole, 82 x 63.2 mm
| - | 50 mm × 50 mm | 82 mm × 63.2 mm × 19 mm | 2 W | R: 625 nm | 24 VDC | $209.00 | Ships in 2-3 weeks | |
 LS-BKL-1000Square back light with hole, 250 x 200 x 19 mm
| Red, Blue, Green, White | 236 x 186 mm | L250xW200xH19(mm) | 27.5 W/35.4 W | - | 24 V | $409.00 | Ships in 2-3 weeks | |
 LS-BKL-0999Square back light with hole, 236 x 194 x 21 mm
| Red, Blue, Green, White | 200 x 180 mm | L236xW194xH21mm | 23.3 W/29.1 W | - | 24 V | $379.00 | Ships in 2-3 weeks | |
 LS-BKL-0998Square back light with hole, 214 x 114 x 21 mm
| Red, Blue, Green, White | 200 x 100 mm | L214xW114xH21(mm) | 12.2 W/15.4 W | - | 24 V | $259.00 | Ships in 2-3 weeks | |
 LS-BKL-0997Square back light with hole, 154 x 154 x 19 mm
| Red, Blue, Green, White | 140 x 140 mm | L154xW154xH19(mm) | 13.8 W/17.5 W | - | 24 V | $249.00 | Ships in 2-3 weeks | |
 LS-BKL-0996Square back light with hole, 146 x 124 x 21 mm
| Red, Blue, Green, White | 110 x 110 mm | L146xW124xH21(mm) | 6.4 W/8.0 W | - | 24 V | $219.00 | Ships in 2-3 weeks | |
 LS-BKL-0995Square back light with hole, 104 x 104 x 21 mm
| Red, Blue, Green, White | 90 x 90 mm | L104xW104xH21(mm) | 5.9 W/7.4 W | - | 24 V | $179.00 | Ships in 2-3 weeks | |
 LS-BKL-0692Hole backlight
| - | - | L214mm*W164mm*H21mm | - | - | 24 V | $439.00 | Ships in 2-3 weeks | |
 LS-BKL-1408Flat Backlight with Center Hole, 450 x 320 mm, White, 198 W
| White | 450 mm × 320 mm | 488 mm × 335 mm × 21 mm | 198 W | - | 24 VDC | $1,379.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1404Flat Backlight with Center Hole, 400 x 300 mm, White, 83 W
| White | 400 mm × 300 mm | 438 mm × 315 mm × 21 mm | 83 W | - | 24 VDC | $1,209.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1390Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm
| Infrared | 250 mm × 250 mm | 282 mm × 263 mm × 19 mm | 52 W | 940 nm | 24 VDC | $739.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1391Flat Backlight with Center Hole, 250 x 250 mm, Red, 48 W
| Red | 250 mm × 250 mm | 282 mm × 263 mm × 19 mm | 48 W | 625 nm | 24 VDC | $739.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1396Flat Backlight with Center Hole, 300 x 200 mm, Red
| Red | 300 mm × 200 mm | 332 mm × 213 mm × 19 mm | 45.9 W | 625 nm | 24 VDC | $719.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1397Flat Backlight with Center Hole, 300 x 200 mm, White, 54 W
| White | 300 mm × 200 mm | 332 mm × 213 mm × 19 mm | 54 W | - | 24 VDC | $719.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1387Flat Backlight with Center Hole, 250 x 200 mm, White, 53 W
| White | 250 mm × 200 mm | 282 mm × 213 mm × 19 mm | 53 W | - | 24 VDC | $639.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1379Flat Backlight with Center Hole, 200 x 200 mm, White, natural cooling
| White | 200 mm × 200 mm | 232 mm × 213 mm × 18 mm | 48 W | - | 24 VDC | $549.00Quote | Ships in 2-3 weeks |
Separate aperture size from panel size
A panel with a center opening has several independent dimensions: the outside body, illuminated area, opening and mounting features. Choose the light around the fixture and imaging task, not the outside width alone. Use a model drawing whenever an opening or rear component must clear a physical part.
- Verify the printed clear aperture shape and dimensions. Do not estimate an opening from a family photo or substitute the outside panel dimensions for it.
- Check the emitting area around the opening and the camera field needed for the inspection, including shadows or obstructions caused by the fixture.
- Review body depth, rear features, mounting holes, cable exit and electrical requirements together before committing to a mechanical interface.
