Backlights

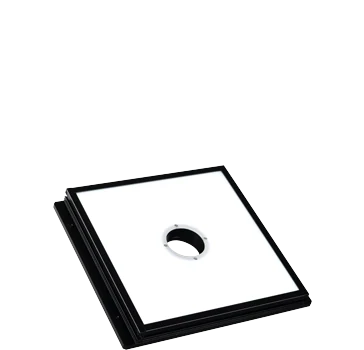

Flat Backlight with Center Hole, 465 x 363 mm, White (LS-BKL-1420)
Model LS-BKL-1420
- ColourWhite
- Emitting area450 mm × 320 mm
- Size465 mm × 363 mm × 40 mm
- Power165.6 W
$1,009.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight with Center Hole, 465 x 363 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1420 |
|---|
Interfaces and I/O
| Connector type | 12M-2A |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 450 mm × 320 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 165.6 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 21 lights of this range with the same connector type that state a voltage are rated 24 V |

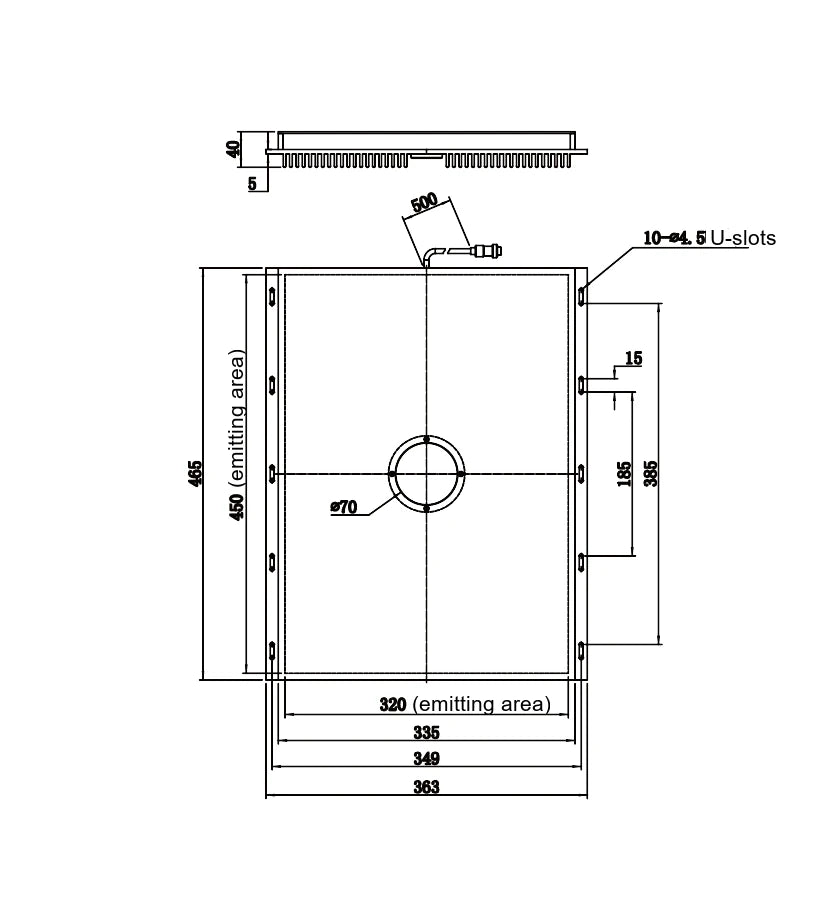

Mechanical
| Dimension | 465 mm × 363 mm × 40 mm |
|---|---|
| Bore dimension | Φ70 mm |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic flat lights with center hole (LS-BKL-S127) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1416 | 192 x 192 mm, Blue | $469.00 | Ships in 2-3 weeks | View |
| LS-BKL-1417 | 192 x 192 mm, White | $469.00 | Ships in 2-3 weeks | View |
| LS-BKL-1418 | 274 x 254 mm, White | $689.00 | Ships in 2-3 weeks | View |
| LS-BKL-1419 | 315 x 315 mm, White | $939.00 | Ships in 2-3 weeks | View |
| LS-BKL-1421 | 670 x 670 mm, White | $2,219.00 | Ships in 2-3 weeks | View |
