Hole backlight (LS-BKL-0692)

Name: Hole backlight (LS-BKL-0692)
Brand: LumaSpec Vision
SKU: LS-BKL-0692
Price: 319.0 USD
Availability: BackOrder

Model LS-BKL-0692

$319.00

Ships in 2-3 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Backlight with a centre hole so the camera or a coaxial light can look through it; luminous sizes 150 x 150 to 400 x 400 mm, SMD LEDs.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

Model	LS-BKL-0692
Working life	white: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality service	one year product warranty, technical support
Category	Hole backlight
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000 V10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support

Cable length	0.6m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

LED type	SMD
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Operating environment (indoor)	temperature 0~40 °C, humidity 20~85% (non condensing)
Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Power tolerance	actual product power within ±10% of the table is the normal range
Power	red: —; white: 20Wmax.; blue: 20Wmax.; green: 20Wmax.
Input Volt	DC24Vmax.

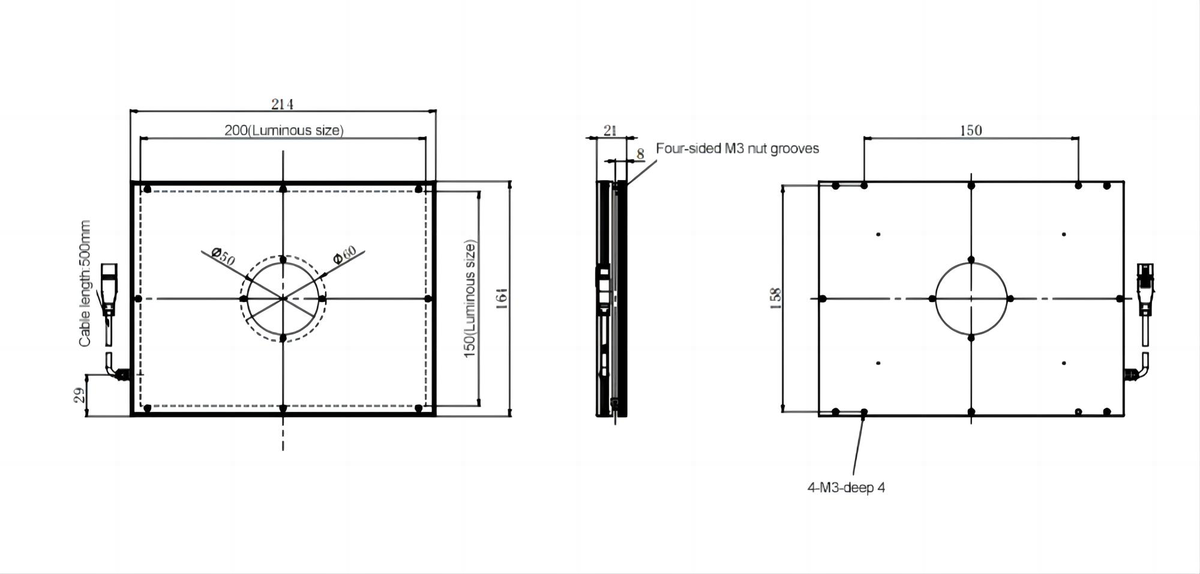

Wire length	500 mm (drawing)
Shell material	Aluminum Alloy (Oxidative blackened surface)
Dimensions	L214mmW164mmH21mm
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Shipping weight	1.00 kg

Backlight with a centre hole (K suffix in the model; drawing of LS-BKL-0691 shows a dia. 40 hole)
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Luminous size: 150mm*150mm. Hole diameter: 40mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:30000 hours for red light and 30000 hours for white light.
Suitable for large area inspection such as large volume object measurement, robotic arm grasping illumination, contour detection and transparent object impurity detection.

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Model	Size / key data	Price	Availability	Link
LS-BKL-0691	150 x 150 mm	$389.00	Ships in 2-3 weeks	View
LS-BKL-0693	200 x 200 mm	$549.00	Ships in 2-3 weeks	View
LS-BKL-0694	250 x 250 mm	$739.00	Ships in 2-3 weeks	View
LS-BKL-0695	300 x 300 mm	$999.00	Ships in 2-3 weeks	View
LS-BKL-0697	400 x 400 mm	$1,049.00	Ships in 2-3 weeks	View
LS-BKL-0696	400 x 300 mm	$1,189.00	Ships in 2-3 weeks	View
