Representative photo of this series
Backlights
300 x 300 mm Hole backlight, 460 nm (LS-BKL-0695)
Model LS-BKL-0695
- ColourBlue, White
- Voltage24 V
- TypeWith centre hole
- LED typeSMD
$999.00
Ships in 2-3 weeks
4.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Backlight with a centre hole so the camera or a coaxial light can look through it; luminous sizes 150 x 150 to 400 x 400 mm, SMD LEDs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0695 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Long (mm) | 414 |
| Wide (mm) | 414 |
| High (mm) | 21 |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 300x300 |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power blue/white (W) | 53.7 |
Mechanical

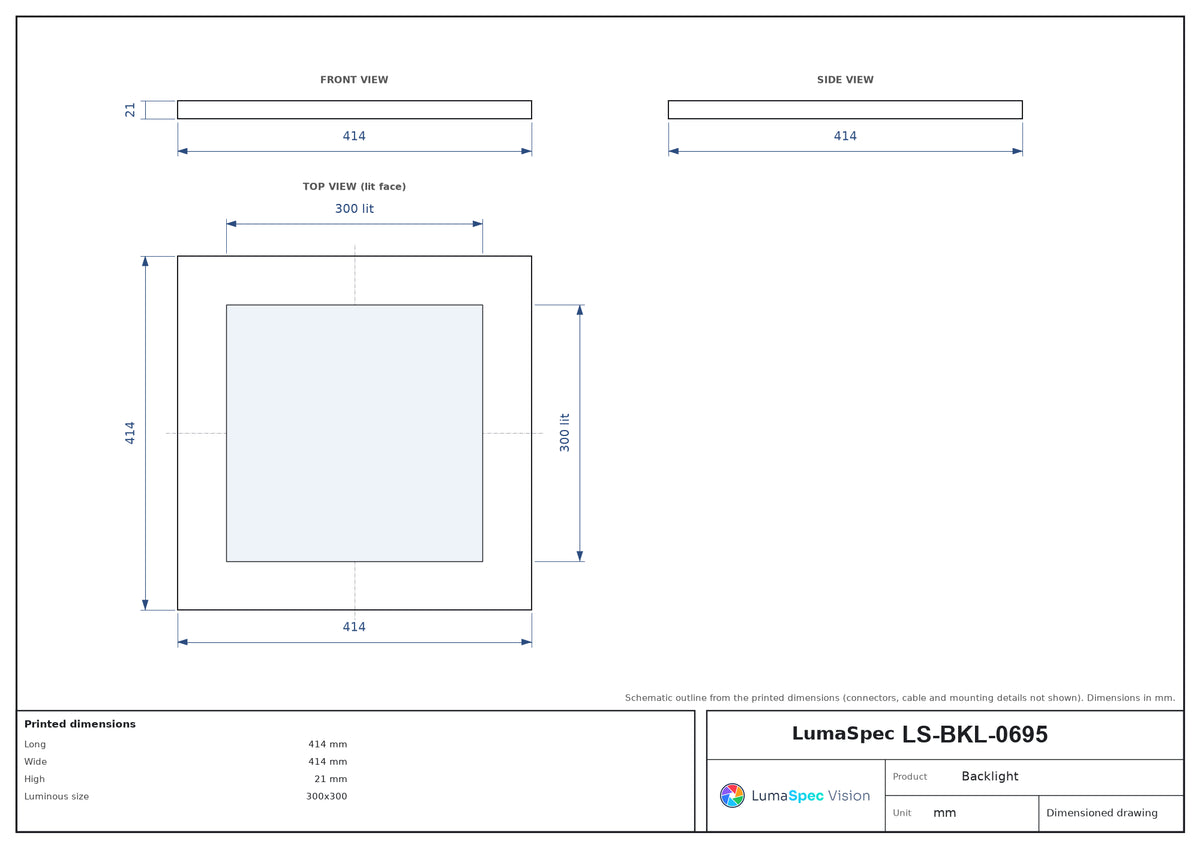

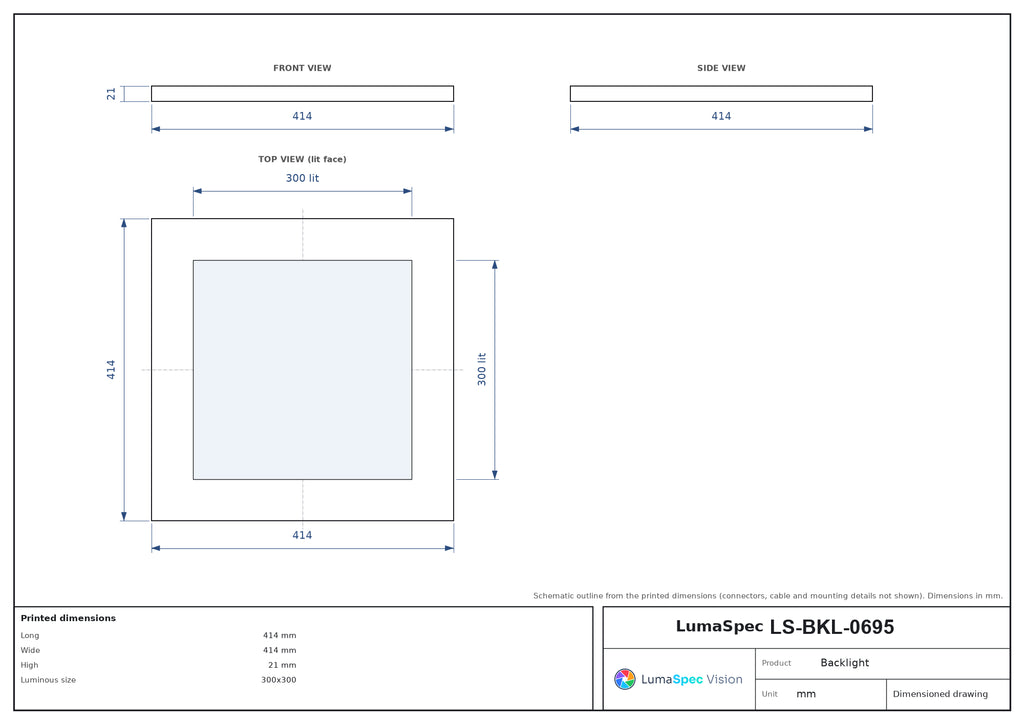

| Wire length | 500 mm (drawing) |
|---|---|
| Shipping weight | 4.00 kg |
Other models in the Hole backlight (LS-BKL-S80) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0692 | L214mm*W164mm*H21mm · With centre hole | $319.00 | Ships in 2-3 weeks | View |
| LS-BKL-0691 | 150 x 150 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-BKL-0693 | 200 x 200 mm | $549.00 | Ships in 2-3 weeks | View |
| LS-BKL-0694 | 250 x 250 mm | $739.00 | Ships in 2-3 weeks | View |
| LS-BKL-0697 | 400 x 400 mm | $1,049.00 | Ships in 2-3 weeks | View |
| LS-BKL-0696 | 400 x 300 mm | $1,189.00 | Ships in 2-3 weeks | View |
