Edge-lit machine vision backlights

Use the drawing to plan a compact backlight

Compare backlights in the catalog edge-lit / ultra-thin class. Check the actual housing depth, emitting area and mounting details when the inspection has limited space behind the part.

All Backlights

122 models Configure a systemAll lights
Edge-lit machine vision backlights

1-24 of 122 models

Products

Compare

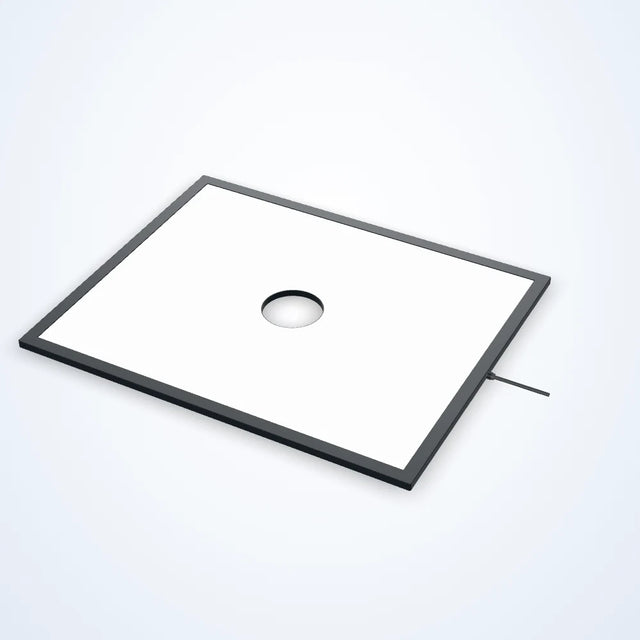

LS-BKL-1090500 x 400 mm edge-lit flat light with centre opening Red, Blue, White, Green, Infrared, UV500 x 400 mm534 × 434 × 10.5 mm24 VDC--From $700.00 Ships in 3-4 weeks

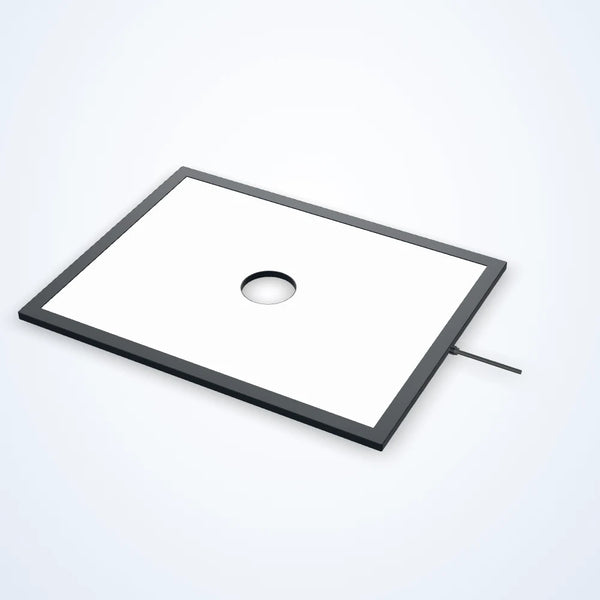

LS-BKL-1089400 x 300 mm edge-lit flat light with centre opening Red, Blue, White, Green, Infrared, UV400 x 300 mm435 × 335 × 9.5 mm24 VDC--From $640.00 Ships in 3-4 weeks

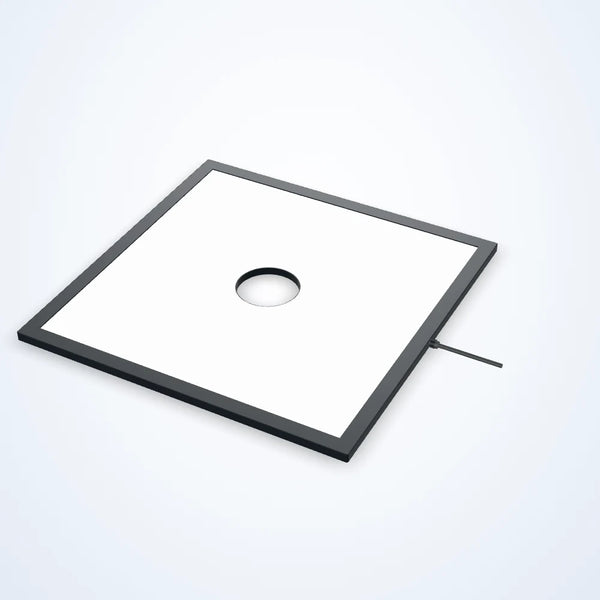

LS-BKL-1088350 x 350 mm edge-lit flat light with centre opening Red, Blue, White, Green, Infrared, UV350 x 350 mm384 × 384 × 10.5 mm24 VDC--From $520.00 Ships in 3-4 weeks

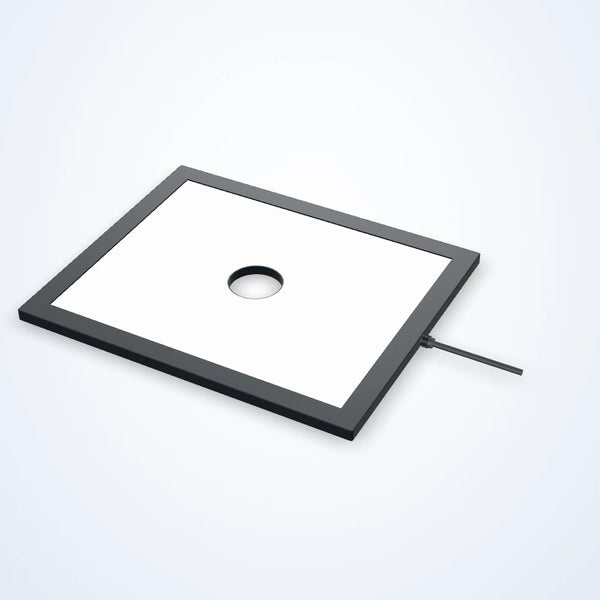

LS-BKL-1087250 x 200 mm edge-lit flat light with centre opening Red, Blue, White, Green, Infrared, UV250 x 200 mm285 × 235 × 9.5 mm24 VDC--From $489.00 Ships in 3-4 weeks

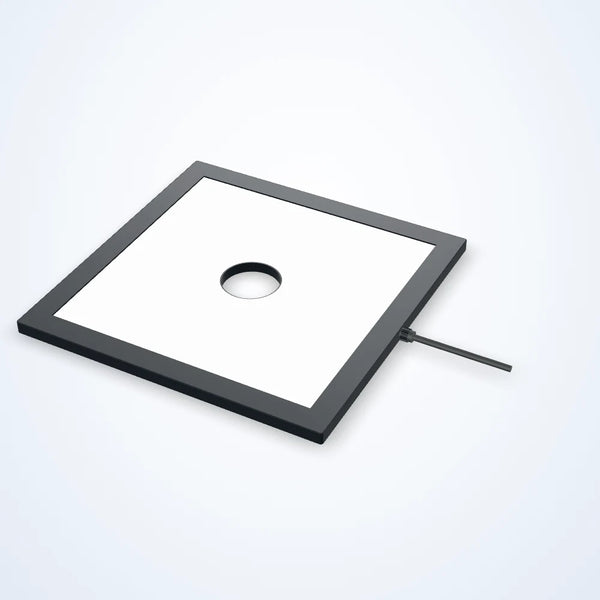

LS-BKL-1086200 x 200 mm edge-lit flat light with centre opening Red, Blue, White, Green, Infrared, UV200 x 200 mm235 × 235 × 9.5 mm24 VDC--From $460.00 Ships in 3-4 weeks

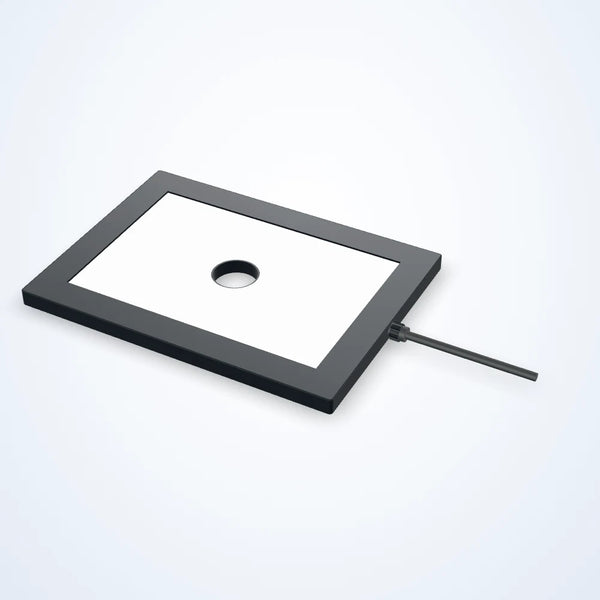

LS-BKL-1085150 x 100 mm edge-lit flat light with centre opening Red, Blue, White, Green, Infrared, UV150 x 100 mm185 × 135 × 9.5 mm24 VDC--From $320.00 Ships in 3-4 weeks

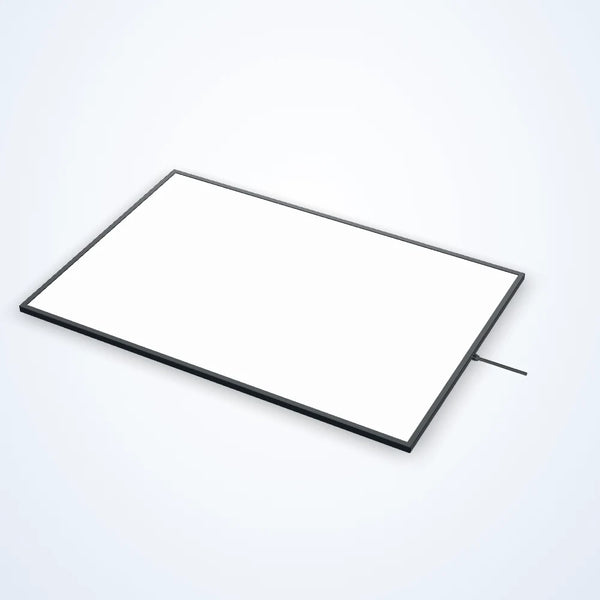

LS-BKL-1084600 x 400 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV600 x 400 mm-24 VDCEdge-lit / ultra-thin-From $627.00 Ships in 3-4 weeks

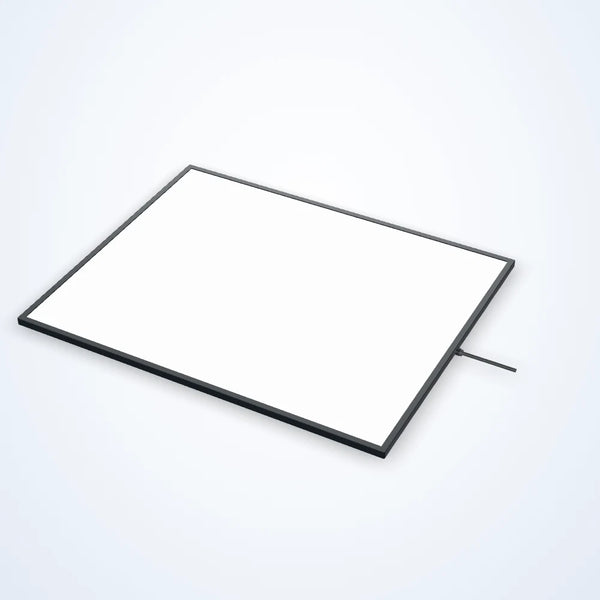

LS-BKL-1083500 x 400 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV500 x 400 mm-24 VDCEdge-lit / ultra-thin-From $570.00 Ships in 3-4 weeks

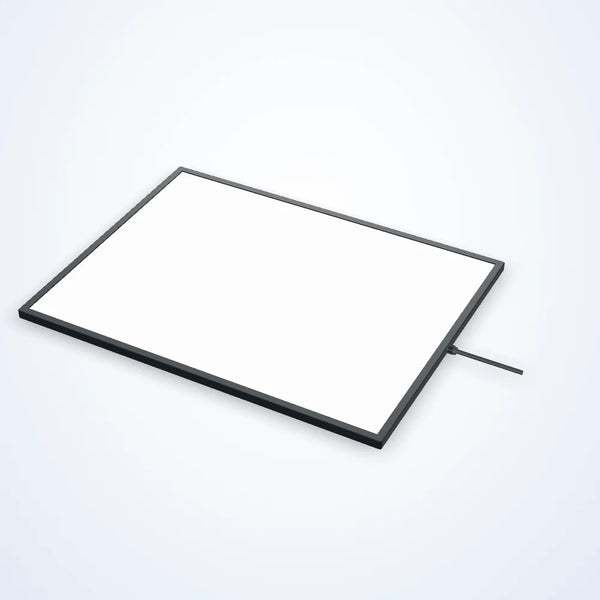

LS-BKL-1082400 x 300 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV400 x 300 mm-24 VDCEdge-lit / ultra-thin-From $528.00 Ships in 3-4 weeks

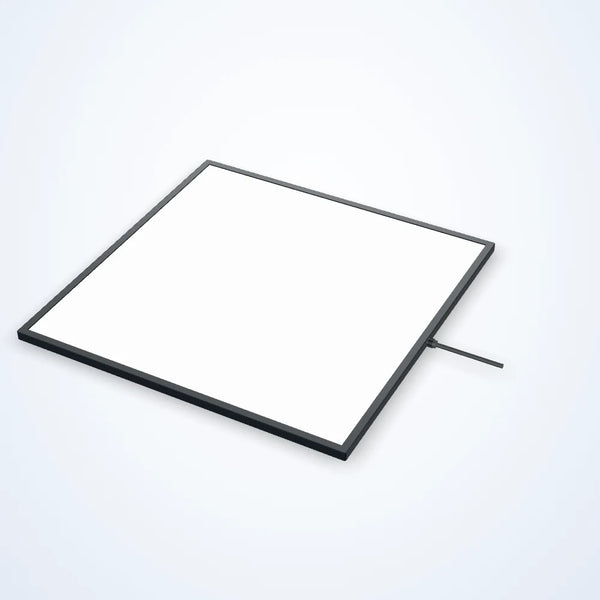

LS-BKL-1081350 x 350 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV350 x 350 mm-24 VDCEdge-lit / ultra-thin-From $517.00 Ships in 3-4 weeks

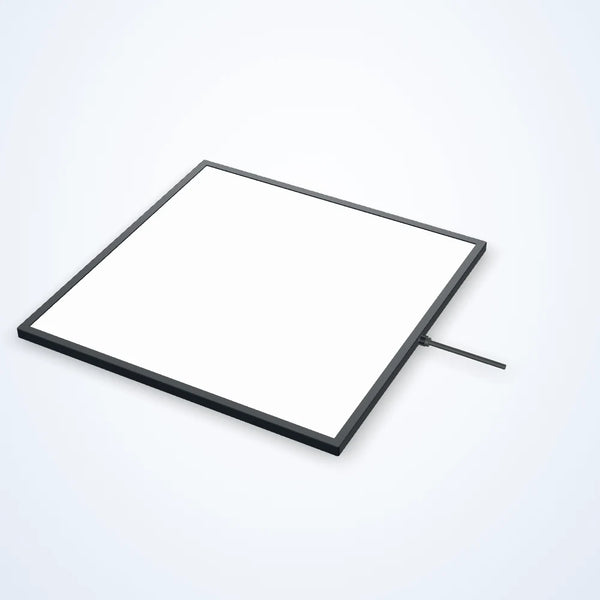

LS-BKL-1080300 x 300 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV300 x 300 mm-24 VDCEdge-lit / ultra-thin-From $495.00 Ships in 3-4 weeks

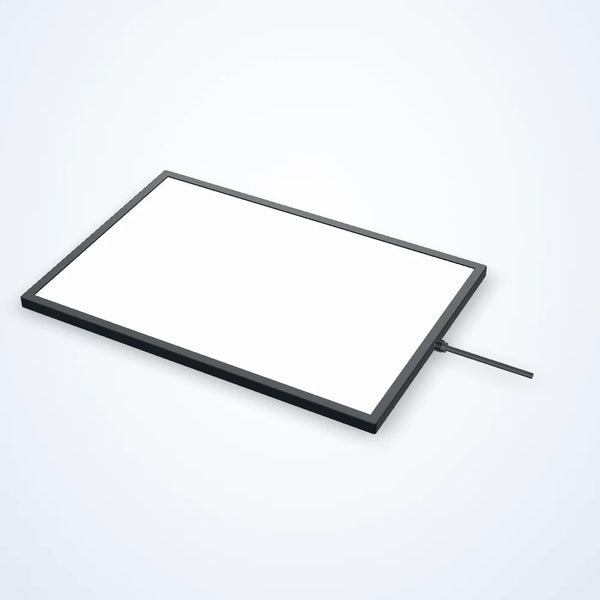

LS-BKL-1079300 x 200 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV300 x 200 mm-24 VDCEdge-lit / ultra-thin-From $418.00 Ships in 3-4 weeks

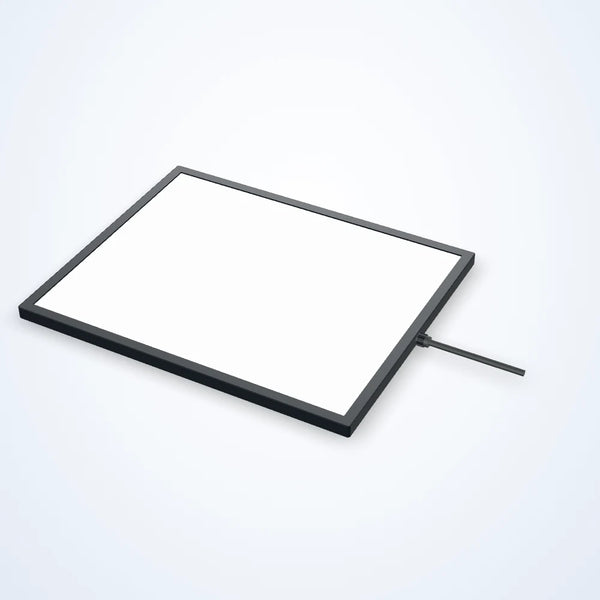

LS-BKL-1078250 x 200 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV250 x 200 mm-24 VDCEdge-lit / ultra-thin-From $370.00 Ships in 3-4 weeks

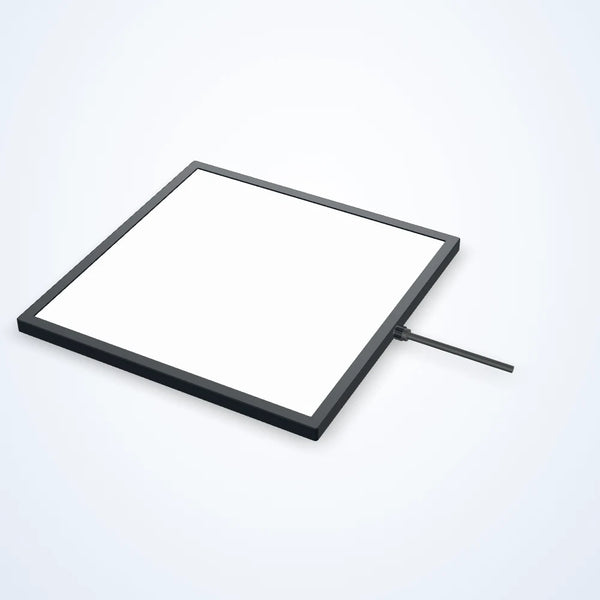

LS-BKL-1077200 x 200 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV200 x 200 mm-24 VDCEdge-lit / ultra-thin-From $340.00 Ships in 3-4 weeks

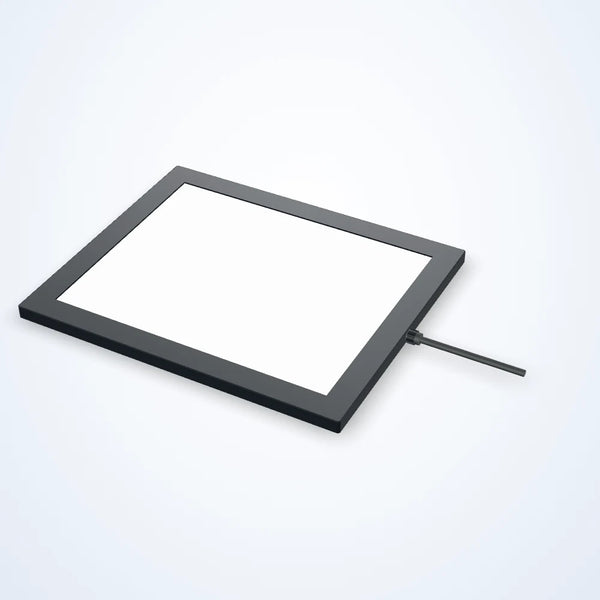

LS-BKL-1076200 x 160 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV200 x 160 mm235 × 195 × 9.5 mm24 VDC--From $320.00 Ships in 3-4 weeks

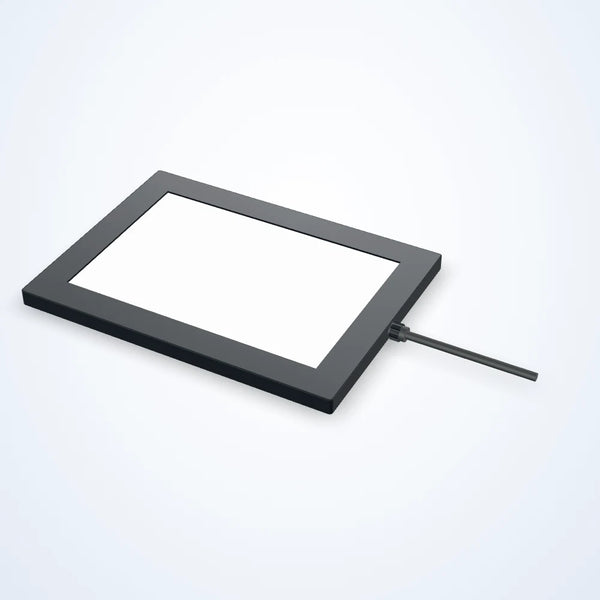

LS-BKL-1075150 x 100 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV150 x 100 mm185 × 135 × 9.5 mm24 VDC--From $260.00 Ships in 3-4 weeks

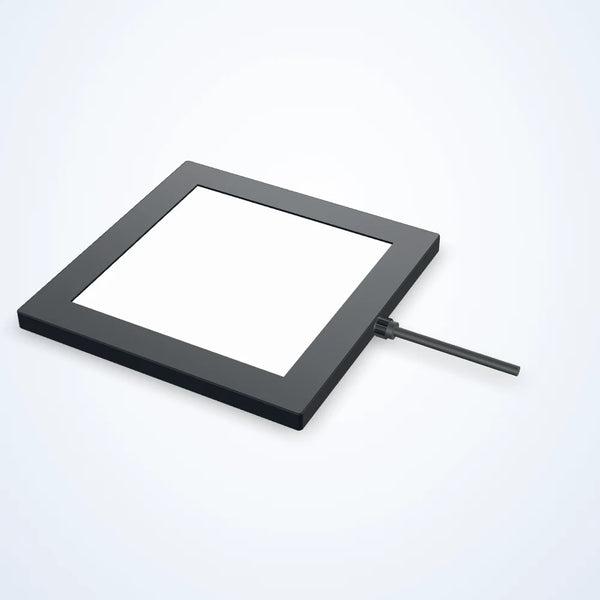

LS-BKL-1074110 x 110 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV110 x 110 mm145 × 145 × 9.5 mm24 VDC--From $230.00 Ships in 3-4 weeks

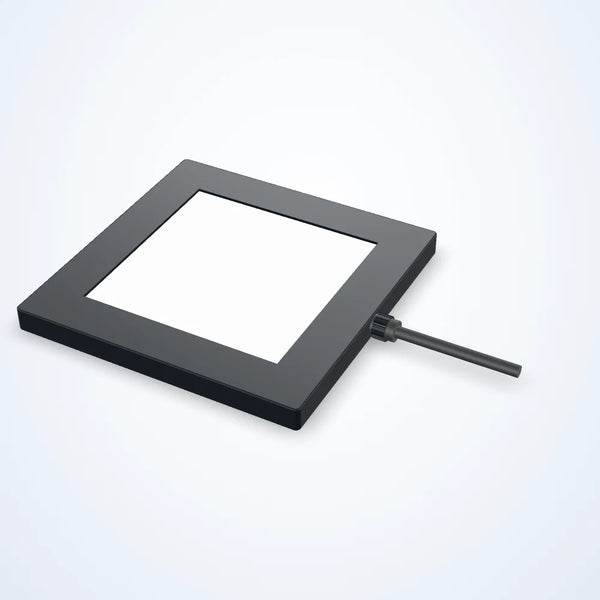

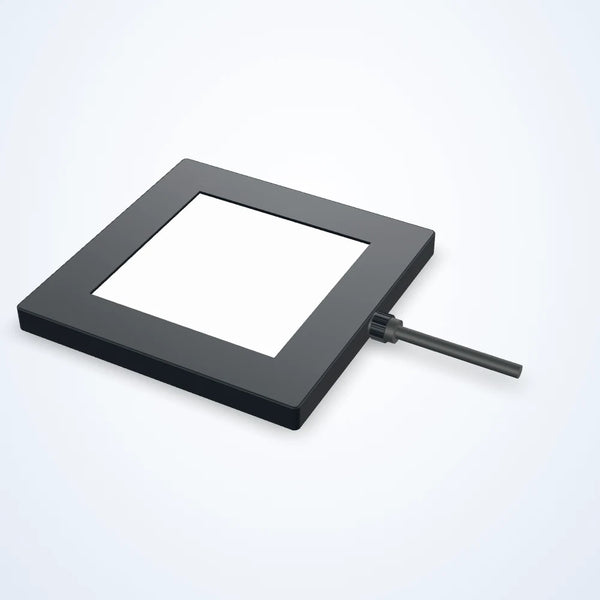

LS-BKL-107390 x 90 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV90 x 90 mm125 × 125 × 9.5 mm24 VDC--From $195.00 Ships in 3-4 weeks
LS-BKL-107170 x 70 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV70 x 70 mm105 × 105 × 9.5 mm24 VDC--From $150.00 Ships in 3-4 weeks

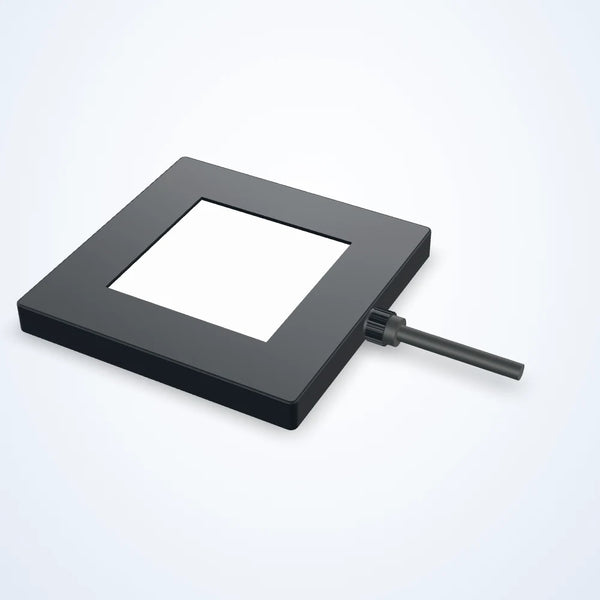

LS-BKL-107050 x 50 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV50 x 50 mm85 × 85 × 9.5 mm24 VDC--From $125.00 Ships in 3-4 weeks
LS-BKL-107280 x 80 mm edge-lit flat backlight Red, Blue, White, Green, Infrared, UV80 x 80 mm115 × 115 × 9.5 mm24 VDC--From $150.00 Ships in 3-4 weeks
LS-BKL-1202330 mm side backlight with opening Red, Green, Blue, White, Infrared, UV--24 V DC (12 V on request)Edge-lit / ultra-thin500 mm$1,009.00 Ships in 2-3 weeks
LS-BKL-1201283 x 320 mm side backlight with opening Red, Green, Blue, White, Infrared, UV283 x 320 mm-24 V DC (12 V on request)Edge-lit / ultra-thin-$959.00 Ships in 2-3 weeks
LS-BKL-120090 mm side backlight with opening Red, Green, Blue, White, Infrared, UV--24 V DC (12 V on request)Edge-lit / ultra-thin500 mm$169.00 Ships in 2-3 weeks

Use the drawing to plan a compact backlight

The catalog class helps identify a compact backlight approach, but the selected model dimensions determine whether it fits. Consider the illuminated field and the mechanical installation together. A small body depth does not by itself establish the field uniformity, brightness or working-distance performance.

  • Use the printed emitting area for optical coverage and the body outline for mechanical clearance. Check any non-illuminated border, mounting tab and cable exit.
  • Compare illumination colour and output with the part transmission and camera exposure, and evaluate the complete field rather than only the panel center.
  • Confirm the mounting surface, supply and controller arrangement, including space for connectors and strain relief behind or beside the panel.

Configure a system · Browse all Backlights
