Backlights

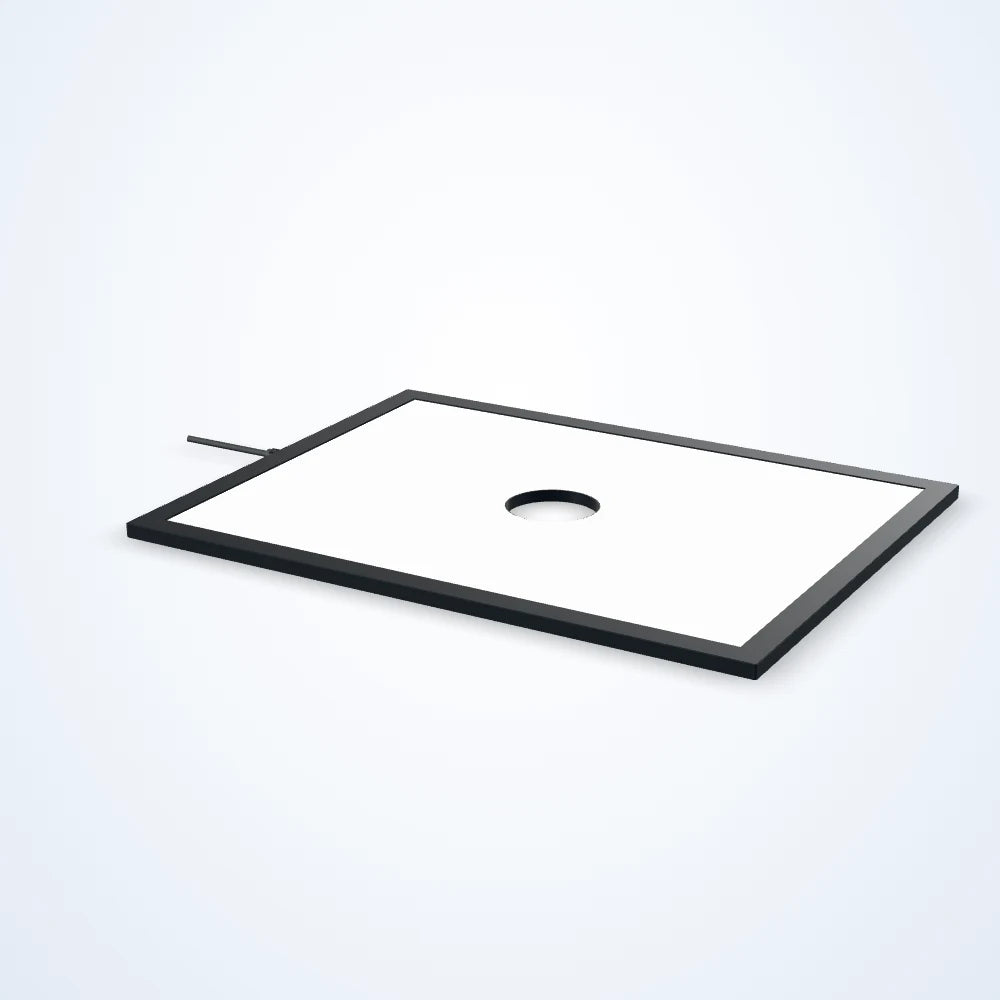

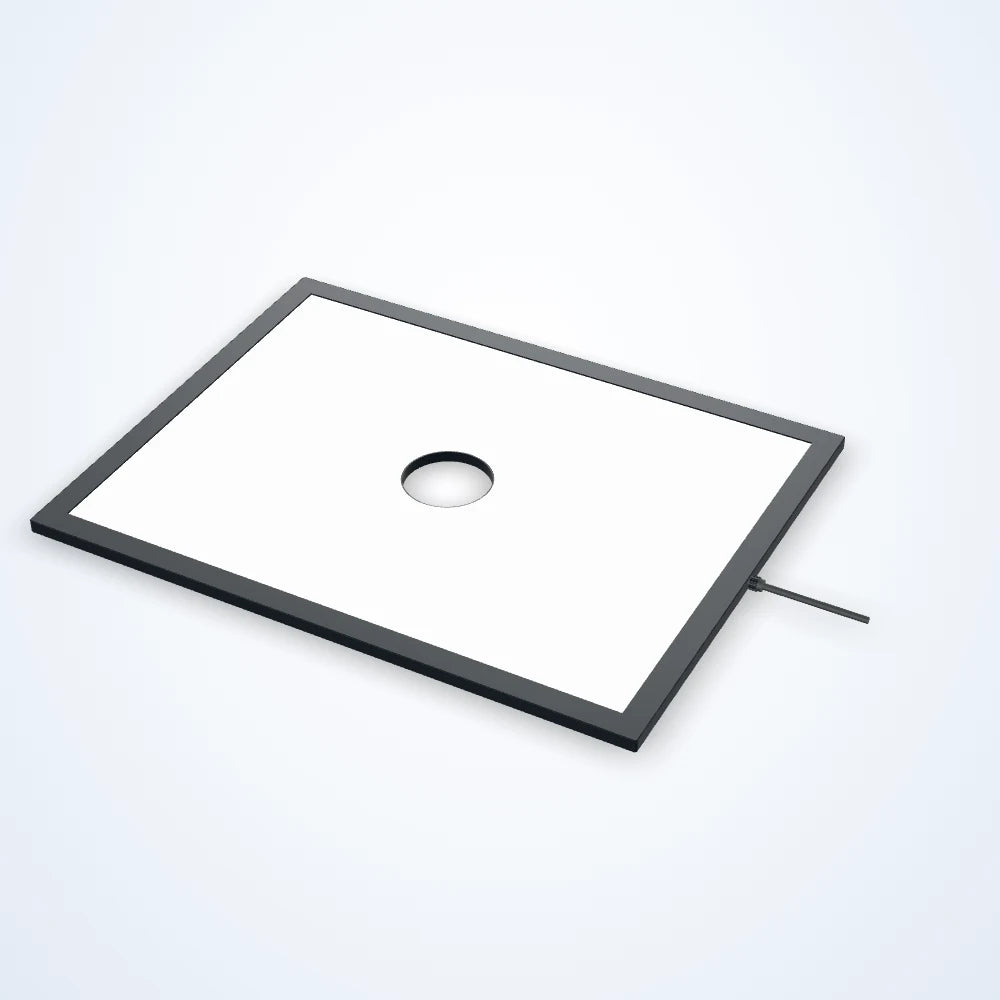

400 x 300 mm edge-lit flat light with centre opening (LS-BKL-1089)
Model LS-BKL-1089
- ColourRed, Blue, White, Green, Infrared, UV
- Emitting area400 x 300 mm
- Size435 × 335 × 9.5 mm
- Voltage24 VDC
$640.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Edge-lit flat light with centre opening for silhouettes, edges and gauging. Emitting area 400 x 300 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1089 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
| Pin assignment | 1: (+), 2: NC, 3: (-) |
Optics
| Aperture | Ø50 (circle) |
|---|
Interfaces and I/O
| Connector | SMR-03 V-B |
|---|---|
| Cable length | 500 mm |
Light
| Emitting area (mm) | 400 x 300 |
|---|---|
| Wavelength | Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm |
| Colour temperature (white) | 5800-7500K |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 VDC |
|---|
Mechanical
| Housing material | Aluminum alloy, Resin |
|---|---|

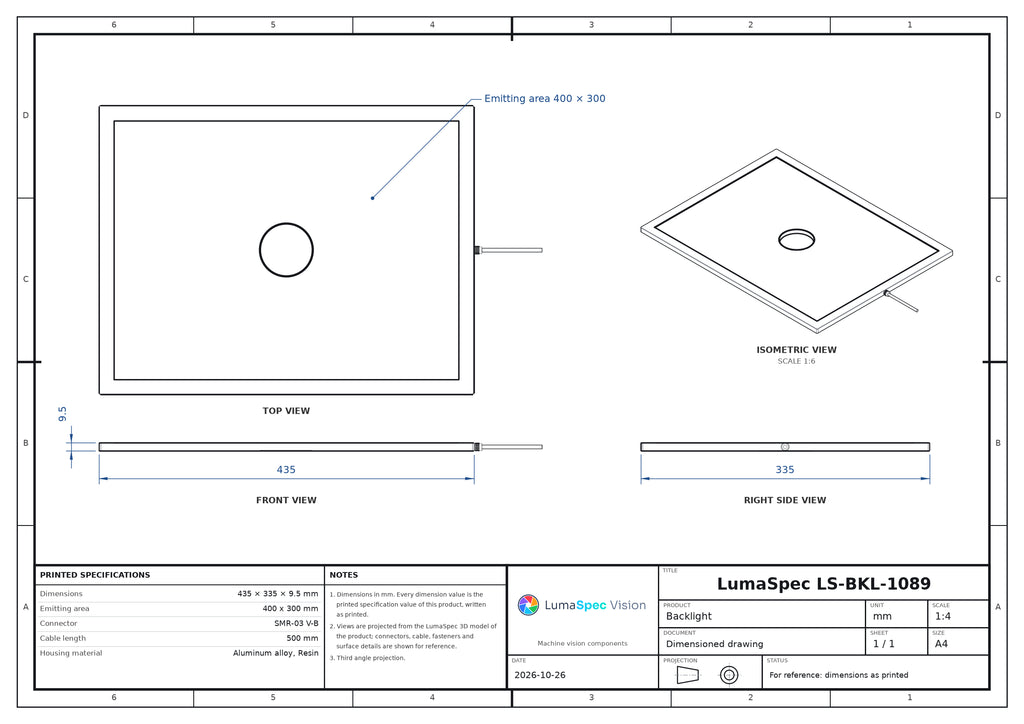

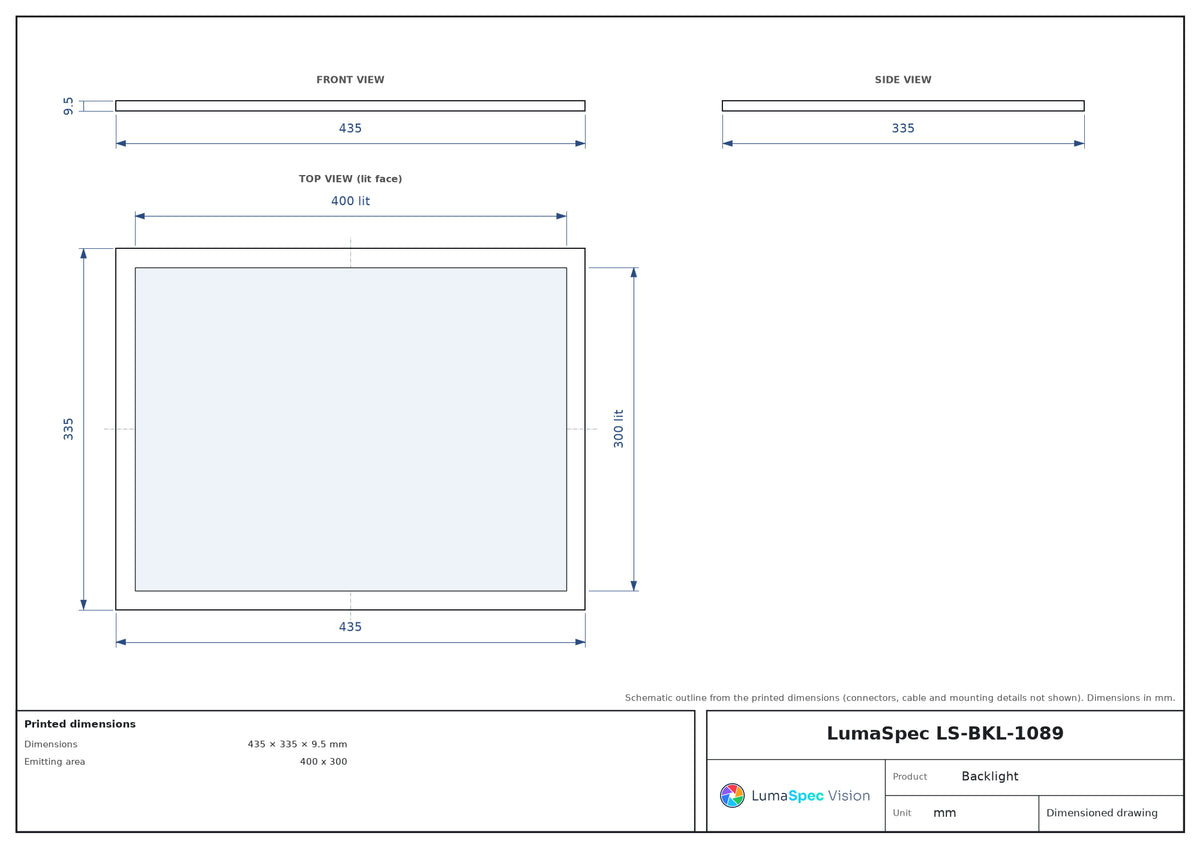

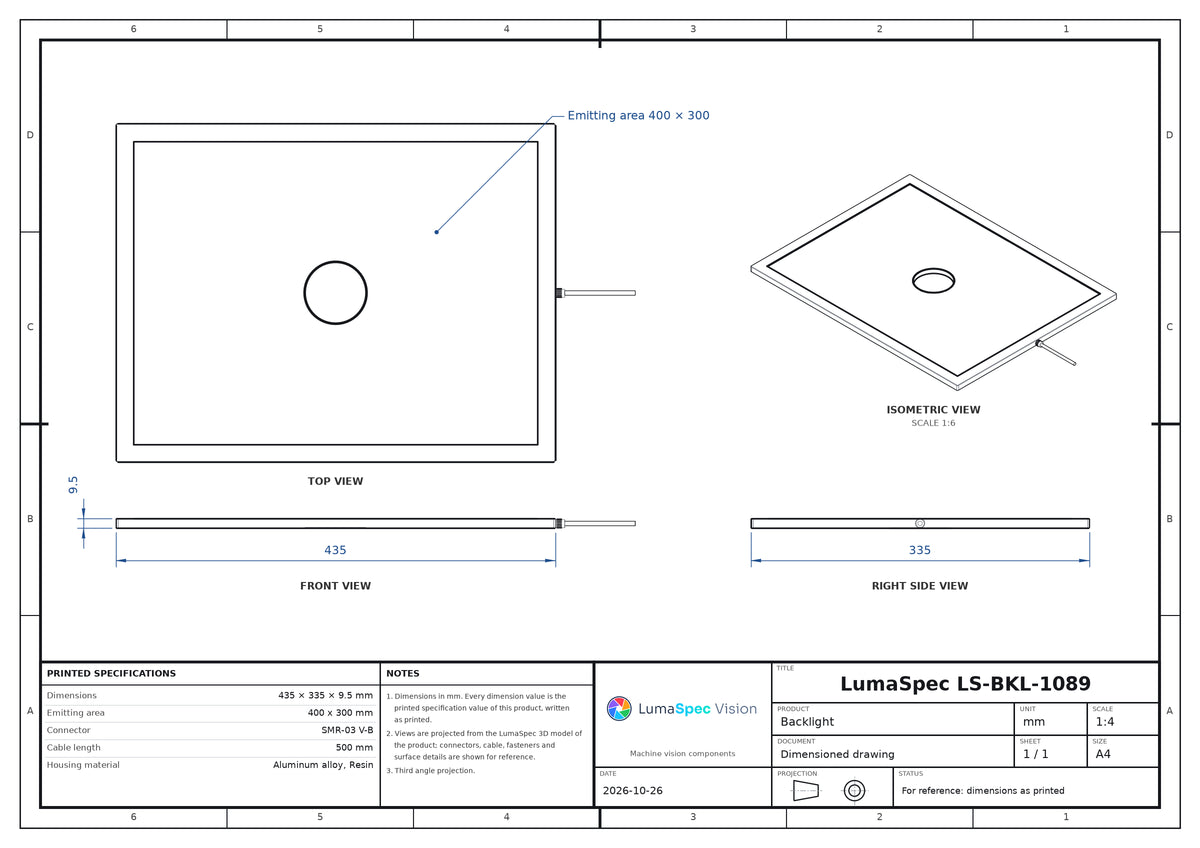

| Dimensions (mm) | 435 × 335 × 9.5 mm |
| Shipping weight | 2.00 kg |

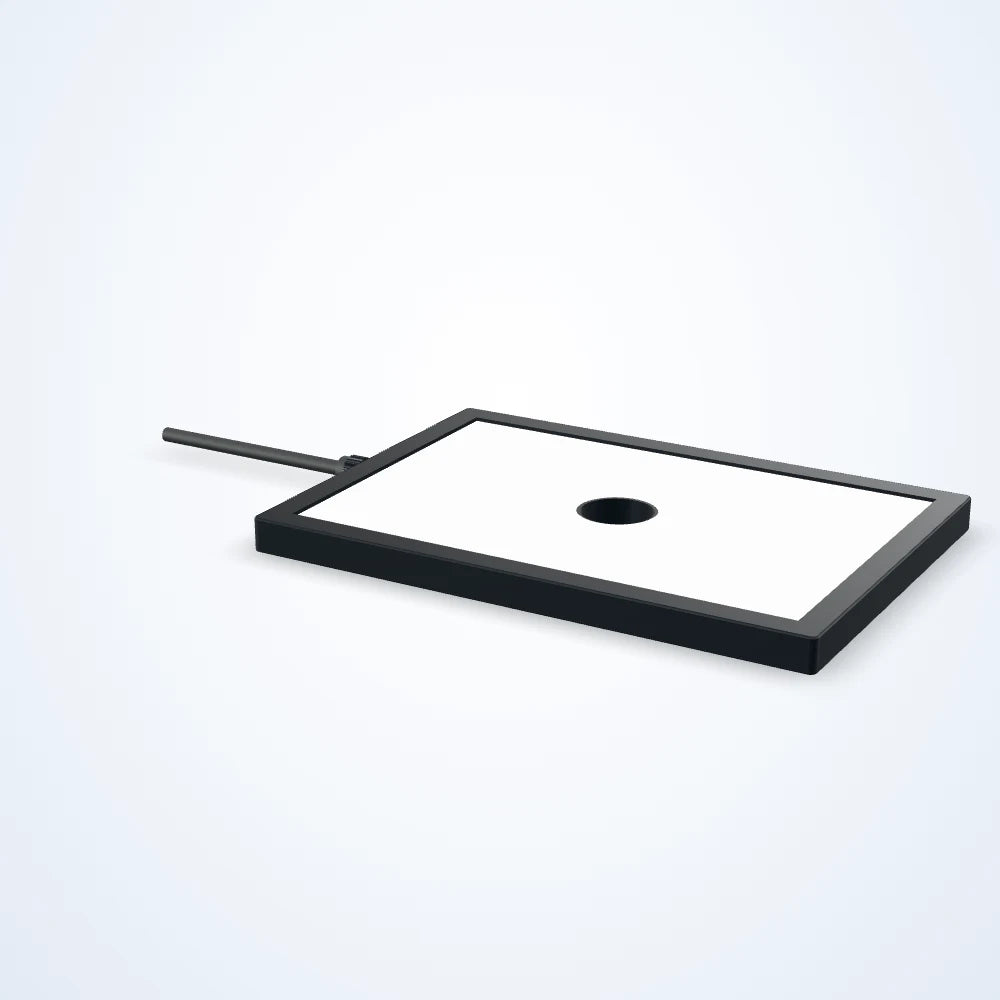

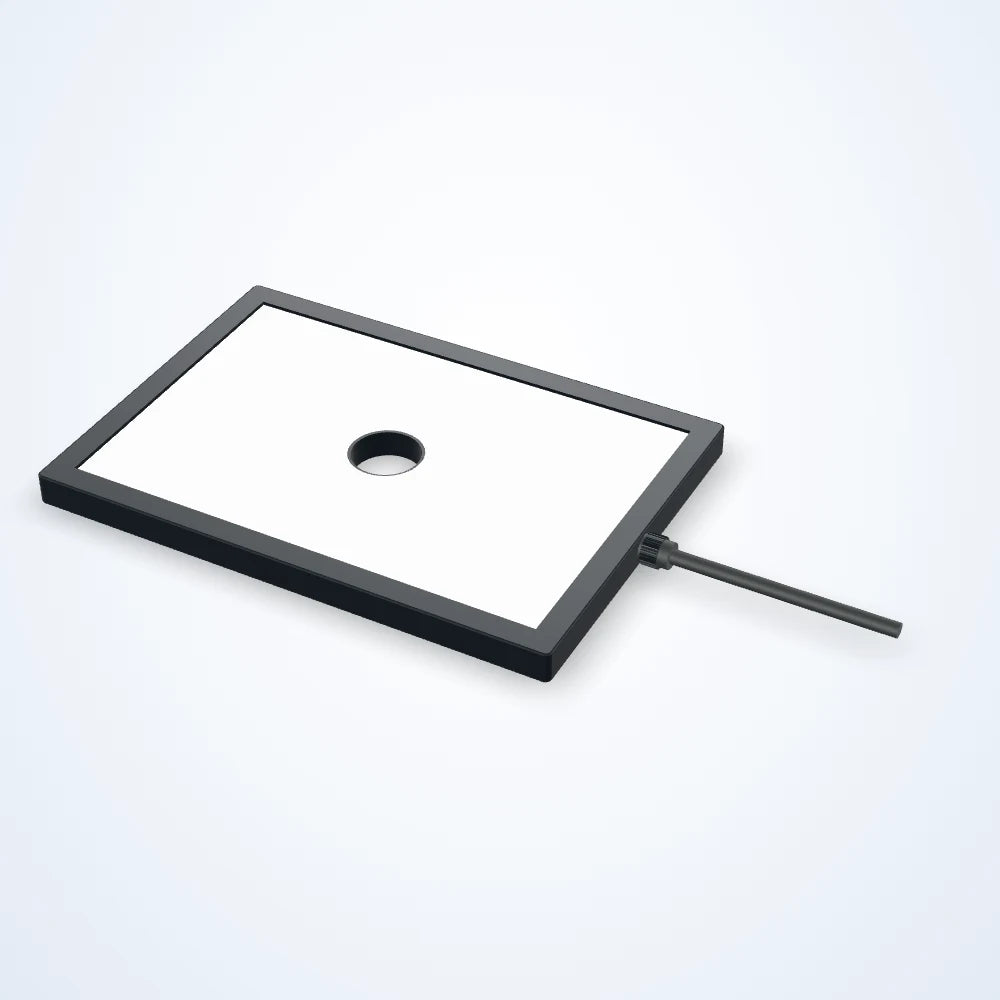

Other models in the Edge-lit flat light with centre openings (LS-BKL-S105) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1085 | 150 x 100 mm | from $320.00 | Ships in 3-4 weeks | View |
| LS-BKL-1086 | 200 x 200 mm | from $460.00 | Ships in 3-4 weeks | View |
| LS-BKL-1087 | 250 x 200 mm | from $460.00 | Ships in 3-4 weeks | View |
| LS-BKL-1088 | 350 x 350 mm | from $520.00 | Ships in 3-4 weeks | View |
| LS-BKL-1090 | 500 x 400 mm | from $700.00 | Ships in 3-4 weeks | View |
