Backlights

80 x 80 mm edge-lit flat backlight (LS-BKL-1072)

Model LS-BKL-1072

ColourRed, Blue, White, Green, Infrared, UV
Emitting area80 x 80 mm
Size115 × 115 × 9.5 mm
Voltage24 VDC

$123.00

Ships in 3-4 weeks

0.5 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Edge-lit flat backlight for silhouettes, edges and gauging. Emitting area 80 x 80 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1072
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Recommended WD	30-100 mm
Pin assignment	1: (+), 2: NC, 3: (-)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Emitting area (mm)	80 x 80
Wavelength	Red: 620-630 nm; Blue: 465-475 nm; Green: 520-530 nm

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 VDC

Mechanical

Housing material	Aluminum alloy, Resin

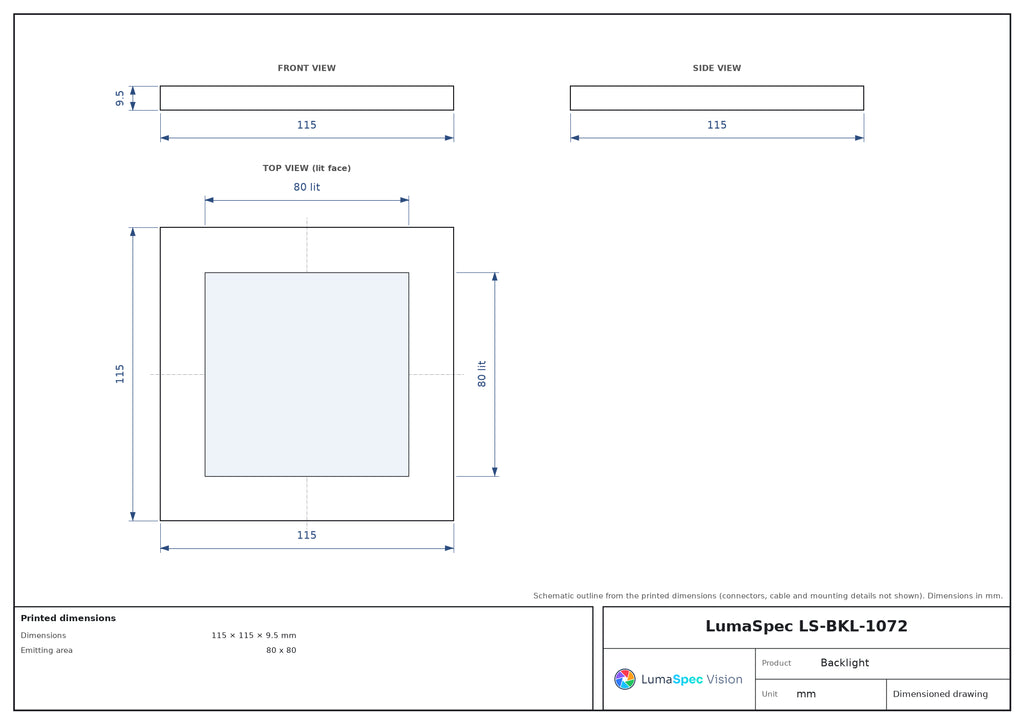

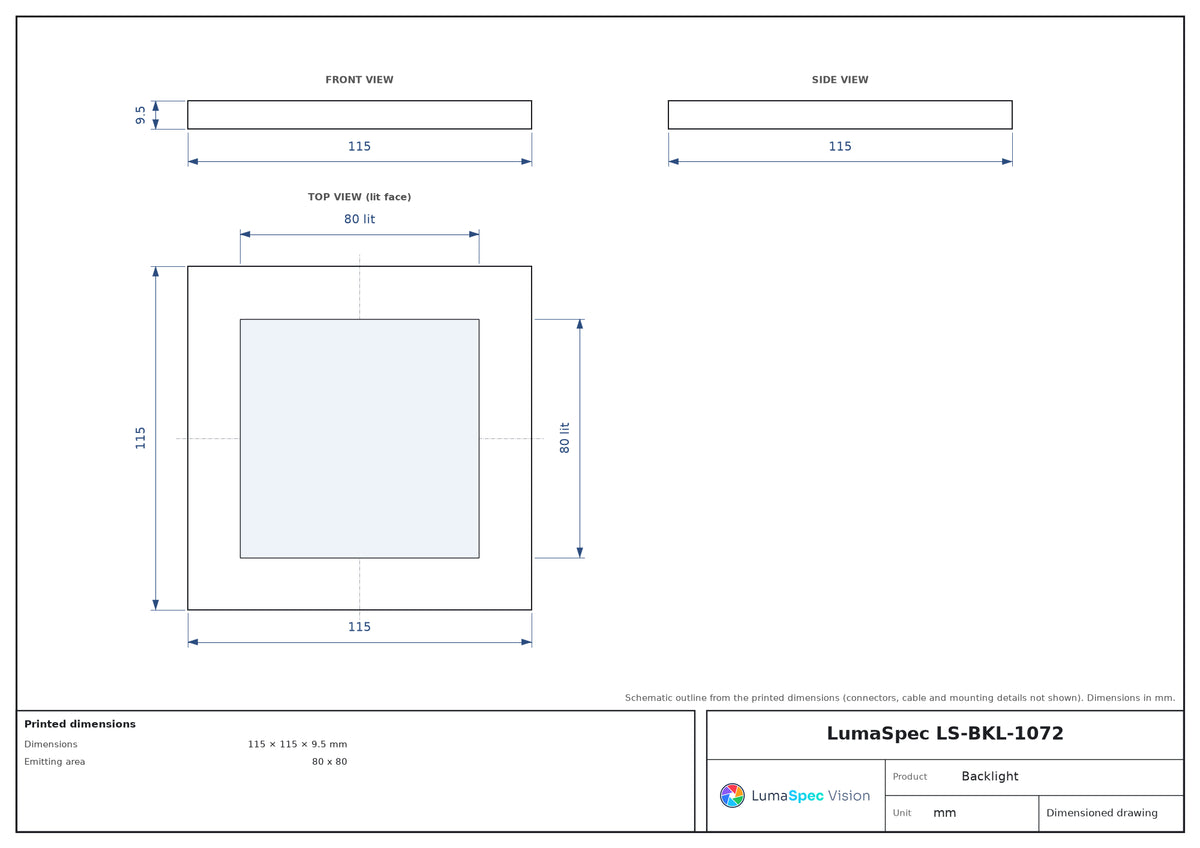

Dimensions (mm)	115 × 115 × 9.5 mm
Shipping weight	0.50 kg
