Backlights

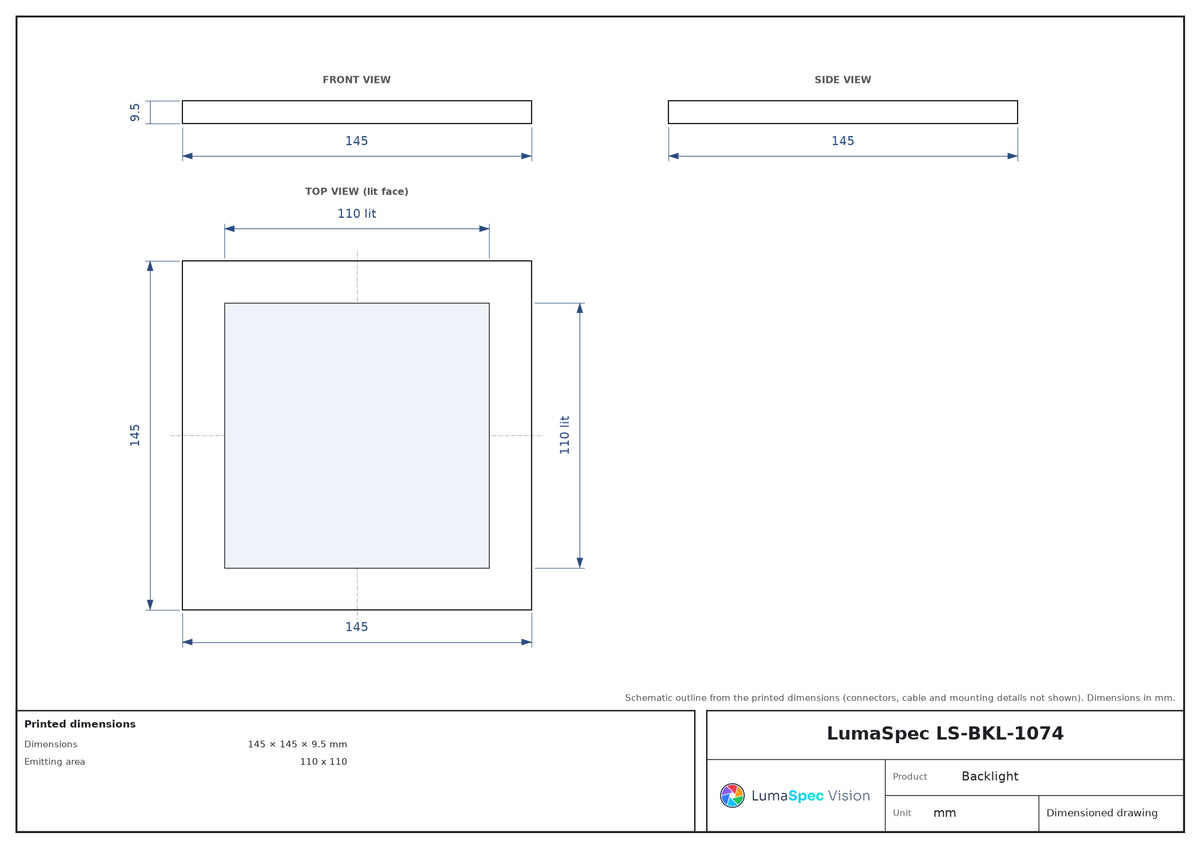

110 x 110 mm edge-lit flat backlight (LS-BKL-1074)

Model LS-BKL-1074

ColourRed, Blue, White, Green, Infrared, UV
Emitting area110 x 110 mm
Size145 × 145 × 9.5 mm
Voltage24 VDC

$230.00

Ships in 3-4 weeks

1.0 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Edge-lit flat backlight for silhouettes, edges and gauging. Emitting area 110 x 110 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1074
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Recommended WD	30-100 mm
Pin assignment	1: (+), 2: NC, 3: (-)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Emitting area (mm)	110 x 110
Wavelength	Red: 620-630 nm; Blue: 465-475 nm; Green: 520-530 nm

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 VDC

Mechanical

Housing material	Aluminum alloy, Resin
Dimensions (mm)	145 × 145 × 9.5 mm
Shipping weight	1.00 kg

Other models in the Edge-lit flat backlights (LS-BKL-S104) series

See all 15 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1072	80 x 80 mm	from $123.00	Ships in 3-4 weeks	View
LS-BKL-1070	50 x 50 mm	from $125.00	Ships in 3-4 weeks	View
LS-BKL-1071	70 x 70 mm	from $150.00	Ships in 3-4 weeks	View
LS-BKL-1073	90 x 90 mm	from $195.00	Ships in 3-4 weeks	View
LS-BKL-1075	150 x 100 mm	from $260.00	Ships in 3-4 weeks	View
LS-BKL-1076	200 x 160 mm	from $320.00	Ships in 3-4 weeks	View
LS-BKL-1077	200 x 200 mm	from $340.00	Ships in 3-4 weeks	View
LS-BKL-1078	250 x 200 mm	from $370.00	Ships in 3-4 weeks	View
LS-BKL-1079	300 x 200 mm	from $418.00	Ships in 3-4 weeks	View
LS-BKL-1080	300 x 300 mm	from $495.00	Ships in 3-4 weeks	View
LS-BKL-1081	350 x 350 mm	from $517.00	Ships in 3-4 weeks	View
LS-BKL-1082	400 x 300 mm	from $528.00	Ships in 3-4 weeks	View
LS-BKL-1083	500 x 400 mm	from $570.00	Ships in 3-4 weeks	View
LS-BKL-1084	600 x 400 mm	from $627.00	Ships in 3-4 weeks	View
