Special lights · 5 models · from $459.00

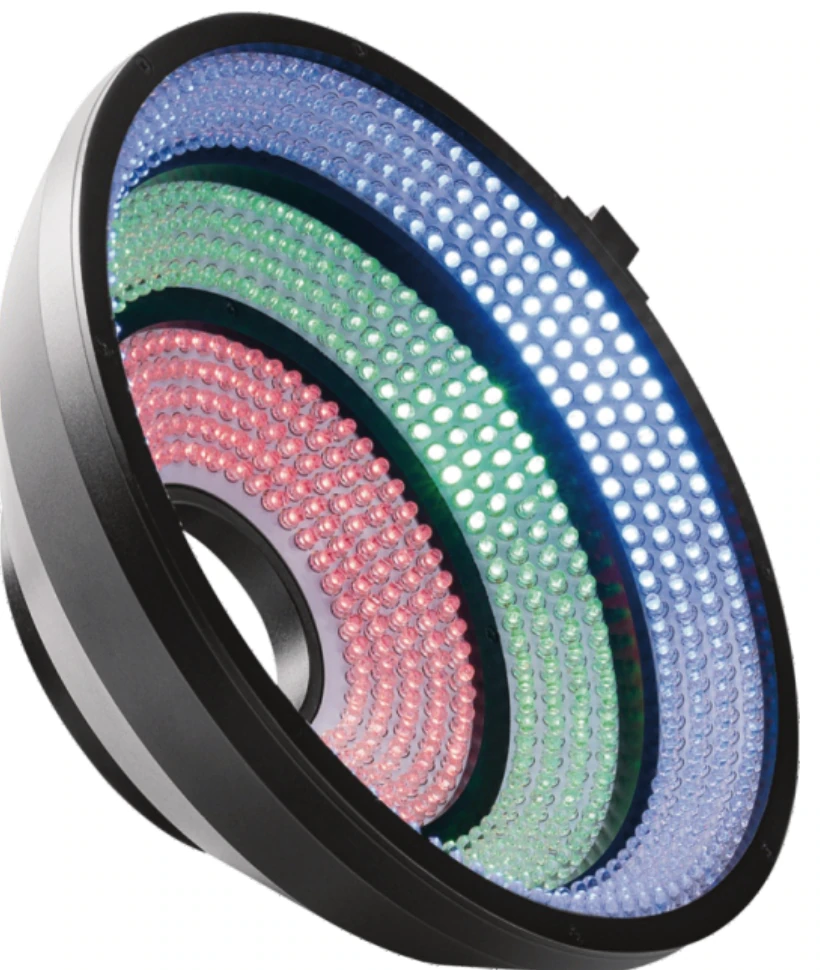

AOI light, SAI series
The AOI light, SAI series is a range of 5 special lights from LumaSpec Vision, from $459.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 98 mm, 178.5 mm, 215.8 mm, 223.6 mm, 227 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
| Type | AOI |
Features
- Three-colour lighting from different angles highlights the 3D information of solder
- Multi-colour and multi-angle lighting accurately reflects surface slope information; dedicated to AOI, mostly for annular defects
- Each colour can be independently controlled
- Can be customised to customer requirements
Typical uses
- Welding quality of electronic components: screen printed characters, missing components, false, missing, continuous and offset solder
- Metal surface scratch inspection
- Scratches and pits on highly reflective surfaces
- Surface defects of rubber ring products
- Scratches and dirt on filter surfaces
All 5 models in the AOI light, SAI series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SAI11622-RGB-M | 98 mm | 17 W | $459.00 | 12 in stock | View | |
| LS-SAI21066-RGB-M2 | 178.5 mm | 43 W | $679.00 | 13 in stock | View | |
| LS-SAI280174-RGB-M | 227 mm | 68 W | $889.00 | 11 in stock | View | |
| LS-SAI230114-RGB-M | 215.8 mm | 75 W | $949.00 | 14 in stock | View | |
| LS-SAI245140-RGBW-M | 223.6 mm | 86 W | $1,039.00 | 15 in stock | View |
