Special lights · 6 models · from $349.00

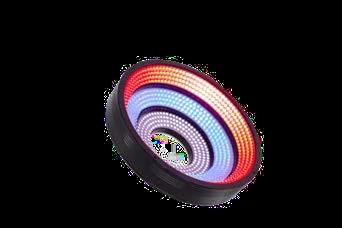

AOI light (LS-AOI)
The AOI light (LS-AOI) is a range of 6 special lights from LumaSpec Vision, from $349.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 74 mm dia., 77 mm dia., 80 mm dia., 88 mm dia., 130 mm dia., 150 mm dia. |
|---|---|
| Voltage | 24 V |
| Type | AOI |
| Colour | Red, Green, Blue, White, Infrared, UV |
Features
- Multiple colours
- Multi-angle illumination
- Size can be freely customized according to different needs
Typical uses
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, multi-level appearance defect inspection
All 6 models in the AOI light (LS-AOI)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-AOI774028-RRBB | 77 mm dia. | 3.1 W | $349.00 | 2 in stock | View | |
| LS-AOI5090-7430 | 74 mm dia. | 5.8 W | $369.00 | 25 in stock | View | |
| LS-AOI5090-7460-9030 | 88 mm dia. | 10.8 W | $409.00 | 26 in stock | View | |
| LS-AOI10375-15060 | 150 mm dia. | 18.8 W | $479.00 | 21 in stock | View | |
| LS-AOI12090-16045 | 80 mm dia. | 22.2 W | $509.00 | 18 in stock | View | |
| LS-AOI10375-15060-18030 | 130 mm dia. | 31.6 W | $589.00 | 20 in stock | View |
