Special lights · 4 models · from $329.00

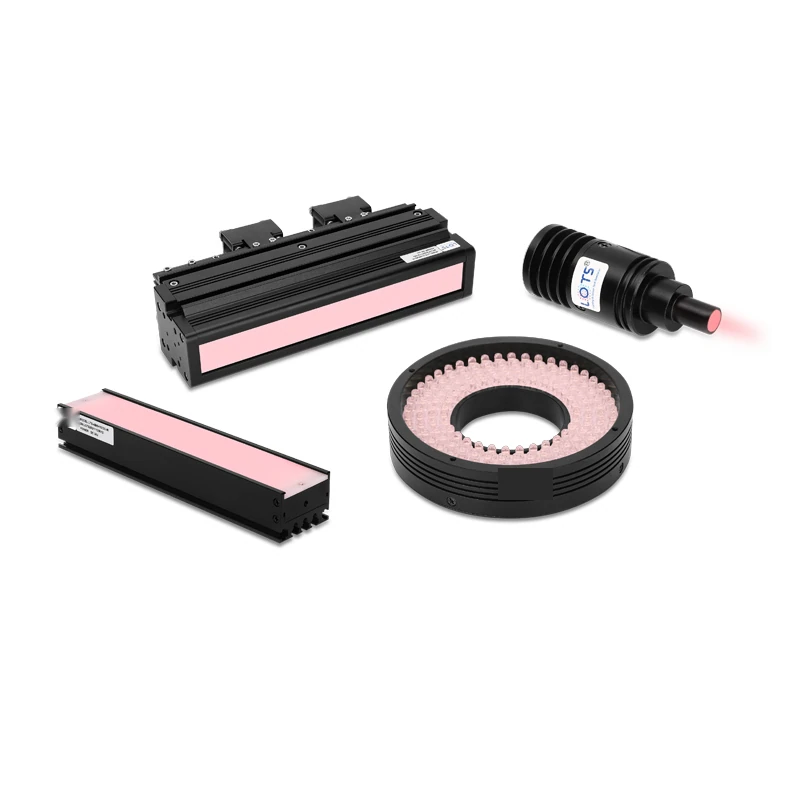

Short wavelength infrared light (SWIR)
The Short wavelength infrared light (SWIR) is a range of 4 special lights from LumaSpec Vision, from $329.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Size | 50-100 mm, 100-200 mm |
|---|---|
| Voltage | 24 V |
Features
- Shortwave infrared, which is more penetrating, seven wavelengths available
- 1050nm/ 1200nm/1300nm/1450nm/1550nm/1600nm/1650nm
- Matched with SWIR camera
Typical uses
- Electronic panel inspection
- Solar cell inspection
- Production inspection identification and sequencing
- Food packaging inspection, medical inspection
All 4 models in the Short wavelength infrared light (SWIR)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-4BR9016-SWIR | 1.5 W | $329.00 | 5 in stock | View | |
| LS-3SL083-SWIR | 2.2 W | $339.00 | 4 in stock | View | |
| LS-4BRH15016-SWIR | 8.4 W | $389.00 | 2 in stock | View | |
| LS-4BRH15030-SWIR | 14.4 W | $439.00 | 5 in stock | View |
