Special lights · 4 models · from $819.00

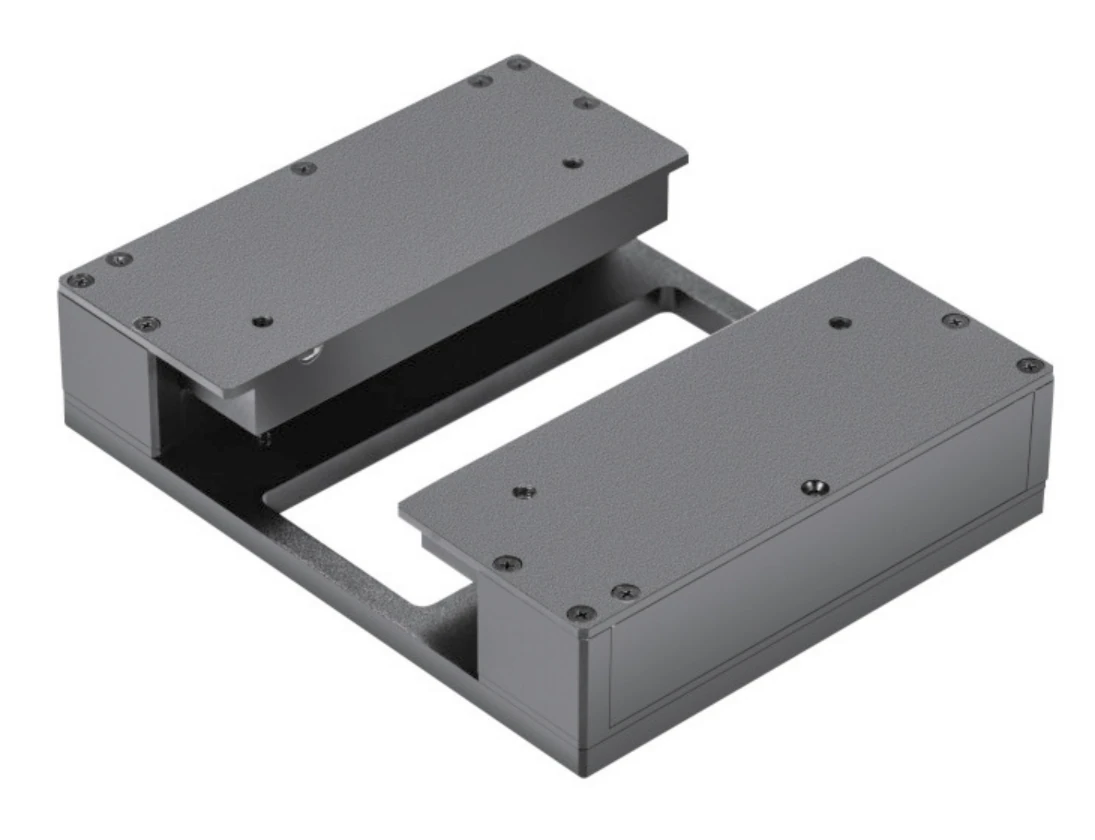

Pin-inspection light source (PDL series)
The Pin-inspection light source (PDL series) is a range of 4 special lights from LumaSpec Vision, from $819.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 32 x 32 mm, 80 x 35 mm, 280 x 50 mm, 290 x 80 mm |
|---|---|
| Colour | White |
Features
- Unique structural design with narrow light output, dedicated to pin positioning inspection
- High-power LED beads for higher brightness
- Strobe (flash) lighting further raises brightness and extends service life
Typical uses
- Electronic component pin positioning inspection
- High-speed pin positioning inspection
- Pin positioning with solder-joint interference at the bottom
- Plug-in component positioning
- Plug-in component on-the-fly positioning
- Plug-in component position inspection
All 4 models in the Pin-inspection light source (PDL series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-PDL8035-W | 80 x 35 mm | 60 W | $819.00 | 4 in stock | View | |
| LS-PDL3232-W | 32 x 32 mm | 112 W | $1,259.00 | 5 in stock | View | |
| LS-PDL29080-W | 290 x 80 mm | 240 W | $2,339.00 | 5 in stock | View | |
| LS-PDL28050-W | 280 x 50 mm | 280 W | $2,669.00 | 4 in stock | View |
