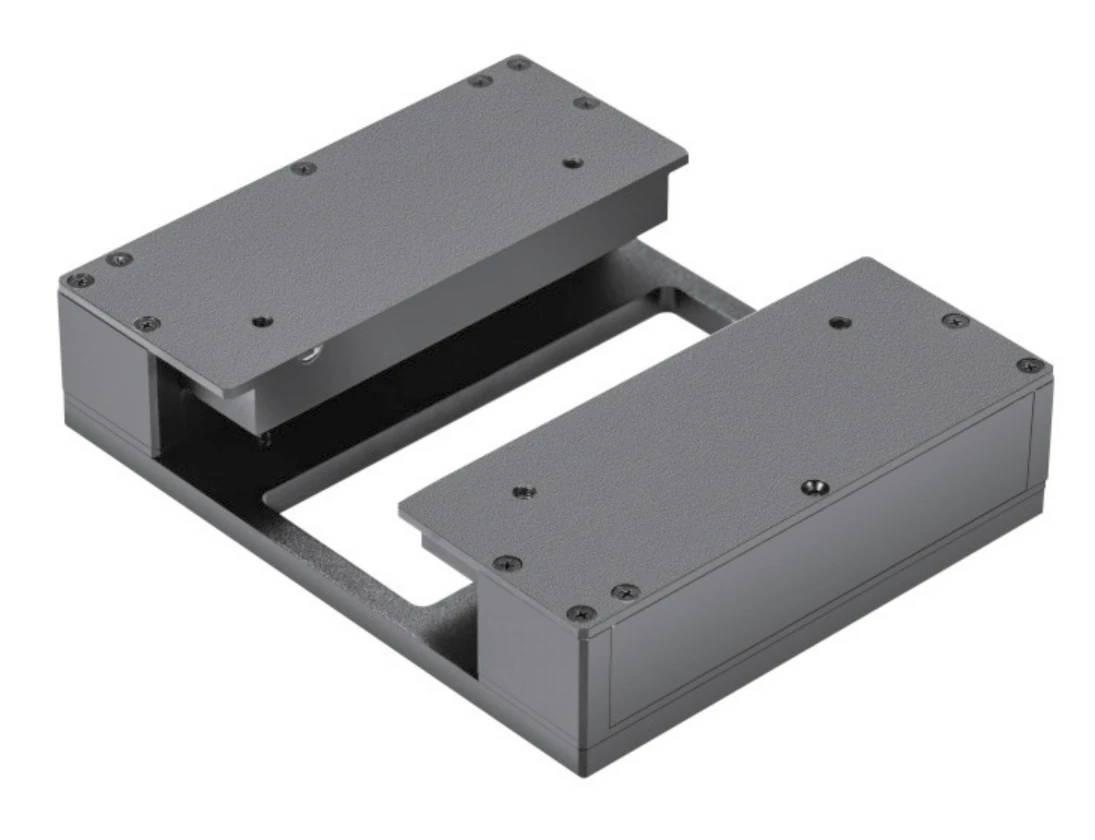

32 x 32 mm Pin-inspection light source (PDL series) (LS-PDL3232-W)
Model LS-PDL3232-W
Unique structure with narrow light output, dedicated to pin positioning inspection; high-power LEDs raise brightness, and strobe (flash) lighting raises brightness further and extends life.
Features
- Unique structural design with narrow light output, dedicated to pin positioning inspection
- High-power LED beads for higher brightness
- Strobe (flash) lighting further raises brightness and extends service life
Specifications
| Model | LS-PDL3232-W |
|---|---|
| Colour temperature white | 6000-6500 K |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-BPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Power (W) | 112 |
| Emitting surface (mm) | 32 x 32 |
| Length (mm) | 80 |
| Width (mm) | 80 |
| Height (mm) | 10.5 |
| Recommended controller | LS-BPS24120C-4TD |
| Mounting (drawing) | 4-M3 depth 4 |
| Cable (drawing) | 500 mm |
| Emitting slit (drawing) | 0.5 mm |
| Shipping weight | 0.25 kg |
Applications
- Electronic component pin positioning inspection
- High-speed pin positioning inspection
- Pin positioning with solder-joint interference at the bottom
- Plug-in component positioning
- Plug-in component on-the-fly positioning
- Plug-in component position inspection
Complete the station
