Special lights · 6 models · from $349.00

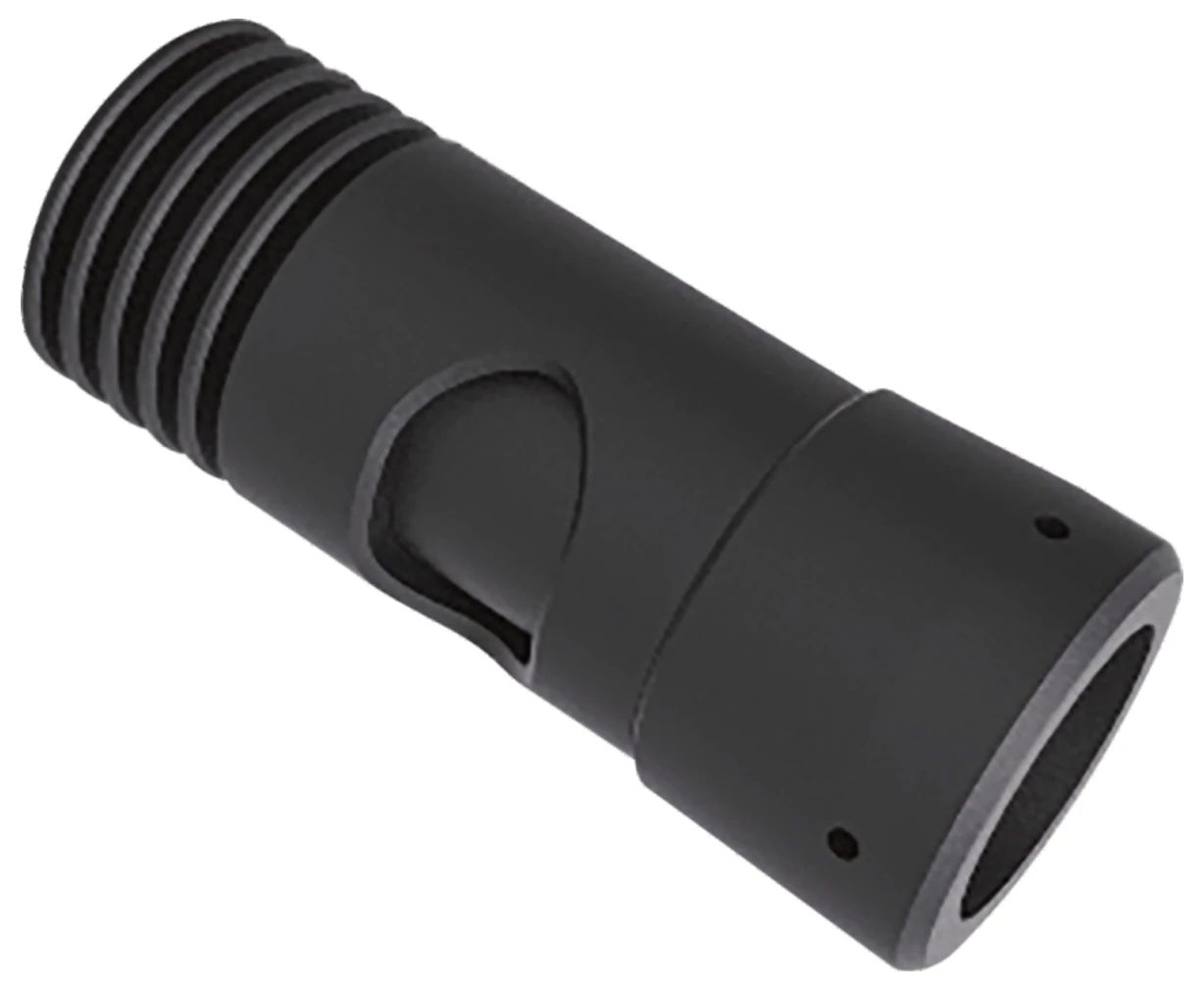

Structured light, LTP series
The Structured light, LTP series is a range of 6 special lights from LumaSpec Vision, from $349.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 mm, 200 x 150 mm, 290 x 15 mm, 300 x 17 mm |
|---|---|
| Colour | Green, White |
| Type | Structured |
| Voltage | 24 V |
| Connector | 16M-6J |
Features
- Various grid pieces can be applied according to the actual environment
- Clear light spot boundary, uniform brightness
- With a 2/3" C-mount lens
- Various shapes, customisable to customer requirements
- Mesh shape can be customised
- Customisable grating piece; grating type chosen for the actual application environment
- Clear light-spot boundary, uniform brightness
- Standard C-mount interface design
Typical uses
- Pit defects on smooth surfaces
- Flatness of product surfaces
- Characters on beverage bottles
- Water ripples on glass surfaces
- Pit defect inspection on smooth object surfaces
- Product surface flatness inspection
All 6 models in the Structured light, LTP series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LTP03W | 30 mm | 3 W | $349.00 | 2 in stock | View | |
| LS-LTP03-G | 30 mm | 3.4 W | $349.00 | 3 in stock | View | |
| LS-LTP10-W | 30 mm | 10 W | $399.00 | 4 in stock | View | |
| LS-COS200150-W-LT | 200 x 150 mm | 73 W | $929.00 | 3 in stock | View | |
| LS-2LPG300-W-LT | 300 x 17 mm | 108 W | $1,229.00 | 5 in stock | View | |
| LS-2CULPG300-W-LT | 290 x 15 mm | 108 W | $1,229.00 | 4 in stock | View |
