Special lights

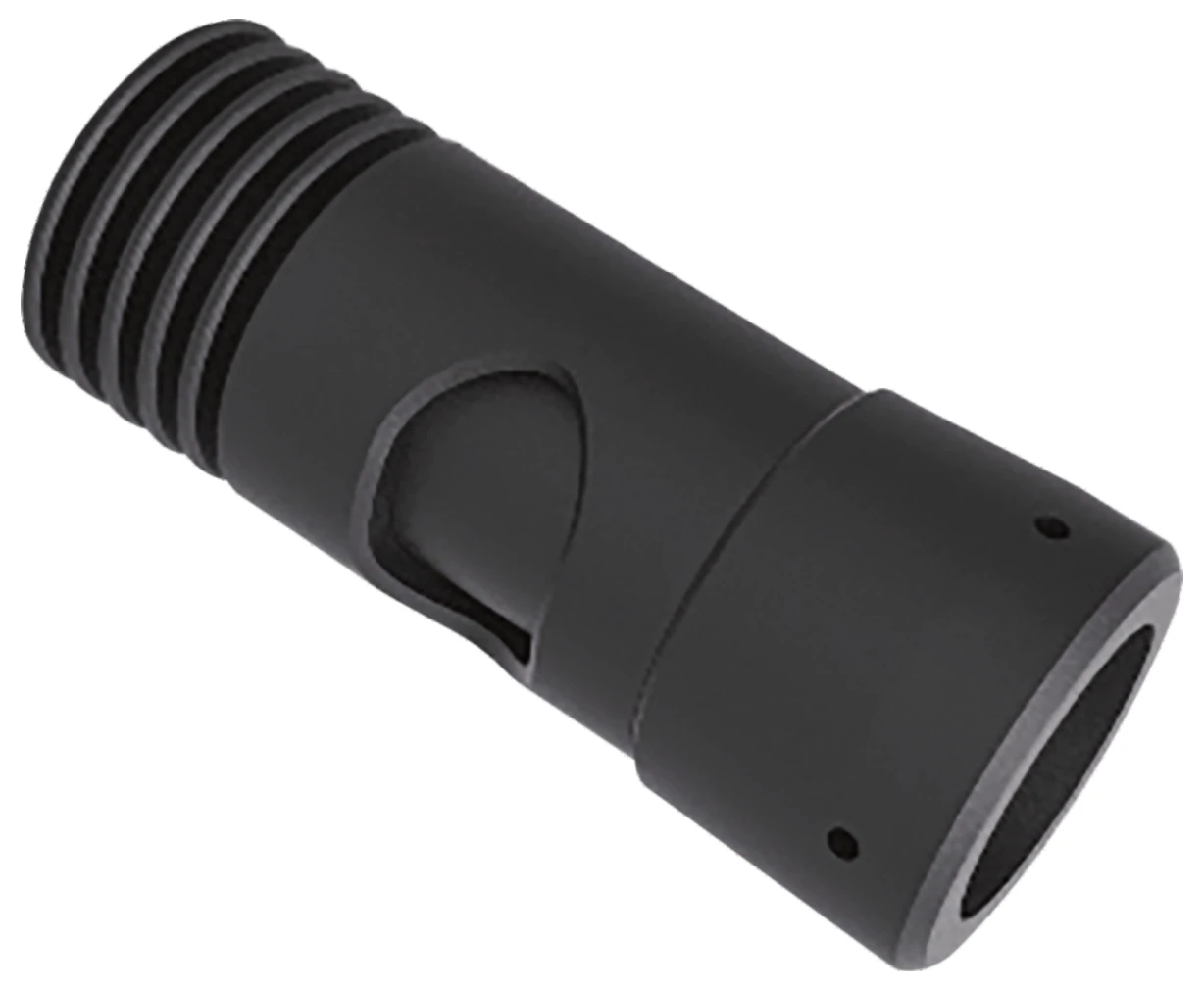

30 mm Structured light, LTP series (LS-LTP03W)
Model LS-LTP03W
Structured light with various grid pieces for the actual environment, a clear light spot boundary and uniform brightness, using a 2/3" C-mount lens.
Features
- Various grid pieces can be applied according to the actual environment
- Clear light spot boundary, uniform brightness
- With a 2/3" C-mount lens
- Various shapes, customisable to customer requirements
- Mesh shape can be customised
Specifications
| Model | LS-LTP03W |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable, diffuse panel |
| Controller | LS-CPL0520A-4TD |
| Power (W) | 3 |
| Luminous dimension (mm) | 30 |
| Overall size (mm) | OD83.8 x Id36 x H32 |
| Recommended controller | LS-CPL0520A-4TD |
| Drawing | length 83.8, dia. 36 front / 32 rear, 7° beam angle, cable length 500 |
| Shipping weight | 0.50 kg |
Applications
- Pit defects on smooth surfaces
- Flatness of product surfaces
- Characters on beverage bottles
- Water ripples on glass surfaces
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
