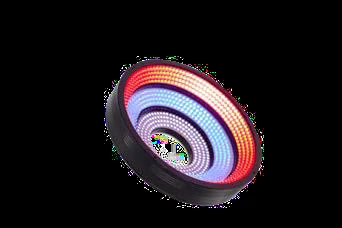

Representative photo of this series
Special lights
AOI light (LS-AOI10375-15060-18030)
Model LS-AOI10375-15060-18030
Multiple colours and multi-angle illumination, highlighting the surface layer information of objects.
Features
- Multiple colours
- Multi-angle illumination
- Size can be freely customized according to different needs
Specifications
| Model | LS-AOI10375-15060-18030 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Number of lamp rows | 4 |
| Outer diameter (mm) | 130 |
| Inner diameter (mm) | 102 |
| Height (mm) | 60 |
| Power red (W) | 16.1 |
| Power white/blue/green (W) | 31.6 |
| Shipping weight | 0.85 kg |
Applications
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, multi-level appearance defect inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the AOI light (LS-AOI) series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-AOI774028-RRBB | 77 mm dia. | 3.1 W | $349.00 | 2 in stock | View | |
| LS-AOI5090-7430 | 74 mm dia. | 5.8 W | $369.00 | 25 in stock | View | |
| LS-AOI5090-7460-9030 | 88 mm dia. | 10.8 W | $409.00 | 26 in stock | View | |
| LS-AOI10375-15060 | 150 mm dia. | 18.8 W | $479.00 | 21 in stock | View | |
| LS-AOI12090-16045 | 80 mm dia. | 22.2 W | $509.00 | 18 in stock | View |
