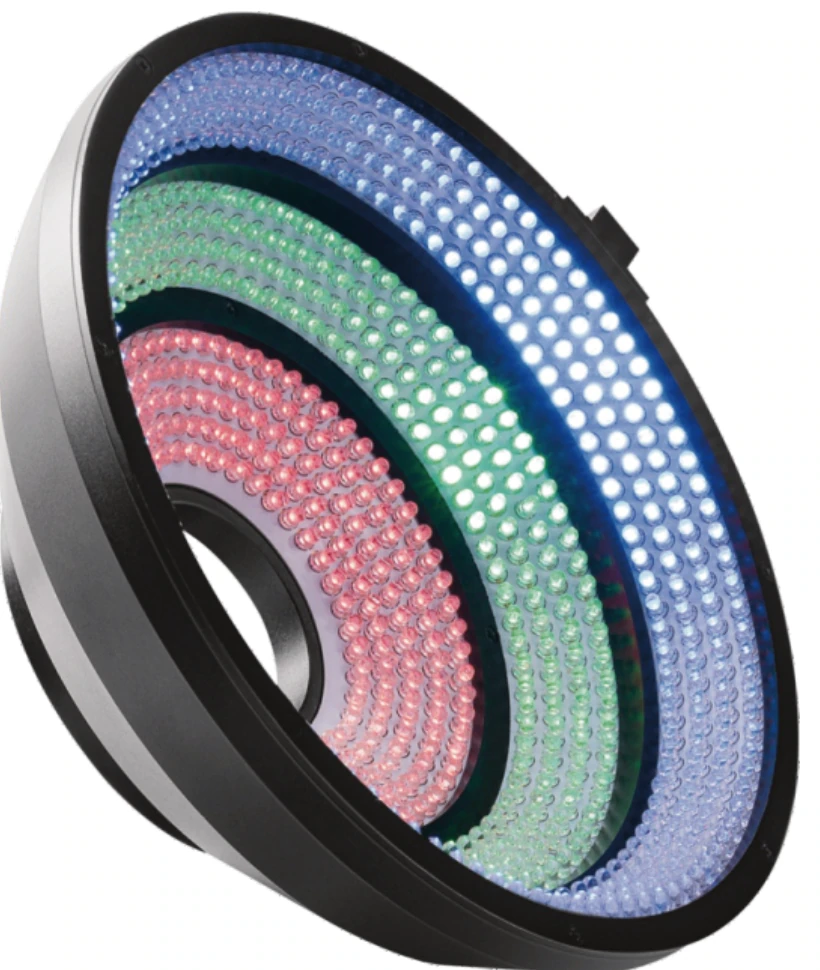

178.5 mm AOI light, SAI series (LS-SAI21066-RGB-M2)
Model LS-SAI21066-RGB-M2
Three-colour lighting from different angles highlights the three-dimensional information of solder. Multi-colour, multi-angle lighting accurately reflects surface slope; dedicated to AOI and mostly used for annular defects.
Features
- Three-colour lighting from different angles highlights the 3D information of solder
- Multi-colour and multi-angle lighting accurately reflects surface slope information; dedicated to AOI, mostly for annular defects
- Each colour can be independently controlled
- Can be customised to customer requirements
Specifications
| Model | LS-SAI21066-RGB-M2 |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-DPS series (series page); spec table lists LS-DPS, LS-APS, LS-SPS |
| Power (W) | 43 |
| Luminous size (mm) | 178.5 |
| OD (mm) | 210 |
| ID (mm) | 66 |
| H (mm) | 74.5 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Illumination angles (drawing) | 27°, 46°, 68° |
| Mounting | 6-M5 depth 5 |
| Shipping weight | 2.85 kg |
Applications
- Welding quality of electronic components: screen printed characters, missing components, false, missing, continuous and offset solder
- Metal surface scratch inspection
- Scratches and pits on highly reflective surfaces
- Surface defects of rubber ring products
- Scratches and dirt on filter surfaces
