Dome lights · 7 models · from $269.00

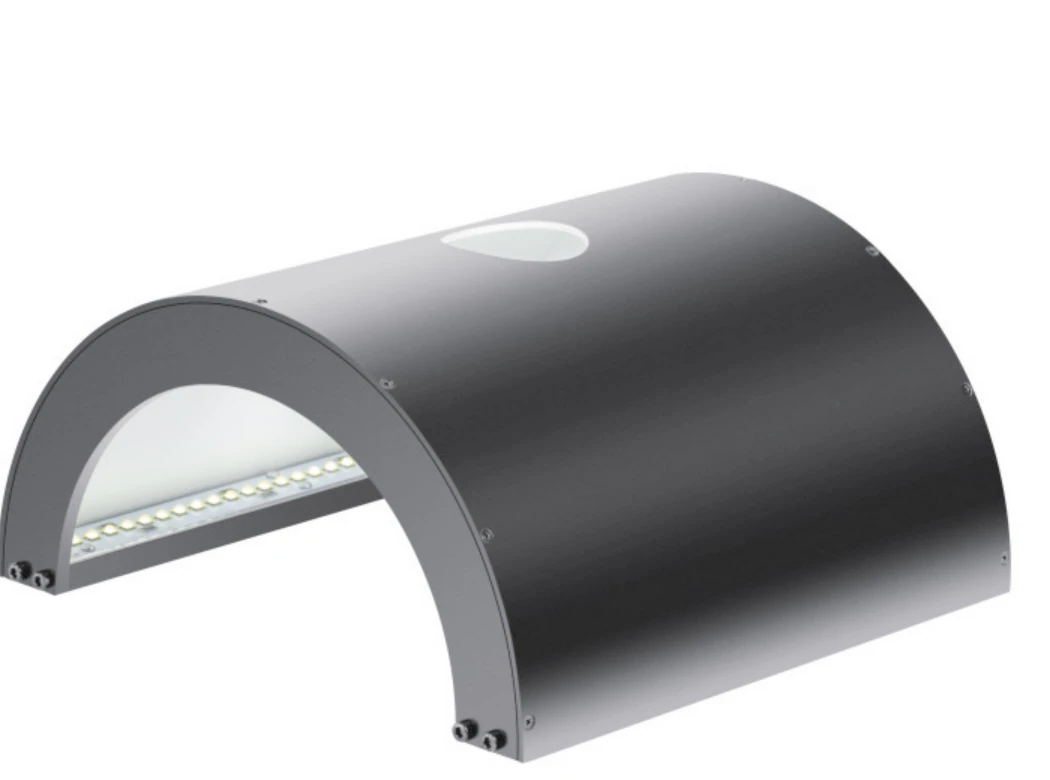

Arch light source (ARS series)
The Arch light source (ARS series) is a range of 7 dome lights from LumaSpec Vision, from $269.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 72 x 110 mm, 111 x 140 mm, 111 x 190 mm, 140 x 240 mm, 150 x 170 mm, 151 x 140 mm, 152 x 190 mm |
|---|---|
| Colour | White |
| Voltage | 24 V |
Features
- Light output by diffuse reflection from the arch-shaped material; angle covers 180 degrees
- Special diffusing material distributes the light evenly
- Eliminates interference from uneven surfaces and reflections
Typical uses
- Cylinder surface defect inspection
- Battery cell edge crush inspection
- Character inspection on electrical appliance exteriors
- PCB substrate surface inspection
- Type-C curved surface damage inspection
- Lithium battery arc surface damage inspection
All 7 models in the Arch light source (ARS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-ARS120120-W | 72 x 110 mm | 14 W | $269.00 | 2 in stock | View | |
| LS-ARS160150-W | 111 x 140 mm | 30 W | $389.00 | 2 in stock | View | |
| LS-ARS160200-W | 111 x 190 mm | 28 W | $389.00 | 2 in stock | View | |
| LS-ARS200150-W | 151 x 140 mm | 30 W | $539.00 | 5 in stock | View | |
| LS-ARS200180-W | 150 x 170 mm | 28 W | $539.00 | 2 in stock | View | |
| LS-ARS200200-W | 152 x 190 mm | 28 W | $539.00 | 4 in stock | View | |
| LS-ARS300250-W | 140 x 240 mm | 42 W | $1,009.00 | 3 in stock | View |
