Dome lights · 4 models · from $139.00

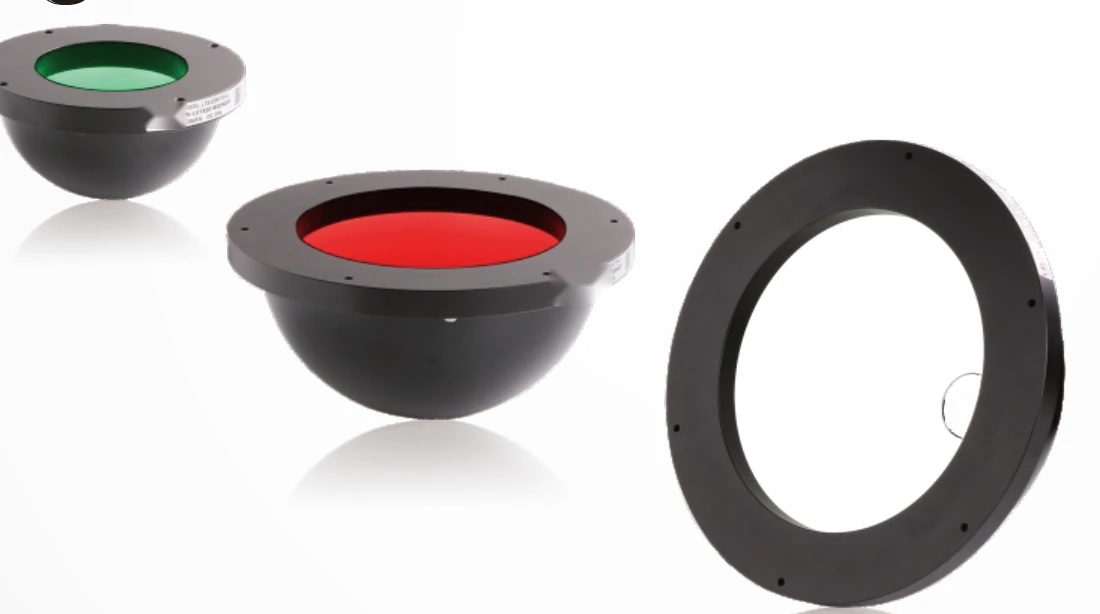

Dome shadowless light (2DM)
The Dome shadowless light (2DM) is a range of 4 dome lights from LumaSpec Vision, from $139.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 66 mm, 116 mm, 138 mm, 193 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High uniformity, large emitting area
- Lightweight design, high luminance
- Frame-fixed method: more uniform stress, firmer and more reliable over long use
- Flexible outline, can be customized
- New version LS-2DM116-W compared with old LS-DM100-W (LWD=140, FOV 32x24 mm, luminance 80%)
- Customizable: Multi-area control, Colour & colour temperature, Cable length, Installation method, Combined light
- UV & IR versions can be customized as required
Typical uses
- Reflective and uneven surface inspection
- IC surface character inspection
- Condenser surface defect inspection
- Ring-pull can defect inspection
- Imaging example: dirty part inspection on a paper cup (LS-2DM175-W), uniformly whitened background extracts the black dirt
All 4 models in the Dome shadowless light (2DM)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2DM116 | 66 mm | 11.5 W | $139.00 | 15 in stock | View | |
| LS-2DM175 | 116 mm | 13 W | $259.00 | 14 in stock | View | |
| LS-2DM198 | 138 mm | 22.1 W | $319.00 | 14 in stock | View | |
| LS-2DM260 | 193 mm | 30.2 W | $509.00 | 14 in stock | View |
