Dome lights · 4 models · from $129.00

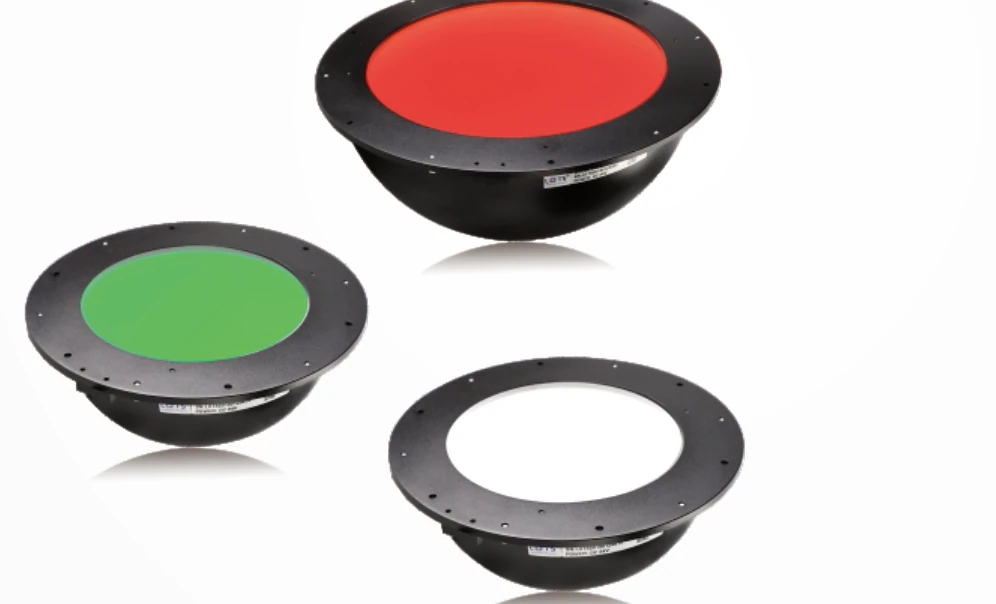

Dome shadowless light (3DM)
The Dome shadowless light (3DM) is a range of 4 dome lights from LumaSpec Vision, from $129.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 60 mm, 116 mm, 138 mm, 193 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High uniformity, large emitting area
- Lightweight design, high luminance
- Frame-fixed method: more uniform stress, firmer and more reliable over long use
- Flexible outline, can be customized
- Customizable: Multi-area control, Colour & colour temperature, Cable length, Installation method, Combined light
- UV & IR versions can be customized as required
- Frame fixed method, more uniform stress, more fastness and more reliable when long time using
Typical uses
- Reflective and uneven surface inspection
- IC surface character inspection
- Condenser surface defect inspection
- Imaging example: IC chip defect inspection (LS-3DM116-IR850), infrared light passes through the glue to show the chip below and removes glue-surface reflection
- Reflect light, unflatness surface inspection
All 4 models in the Dome shadowless light (3DM)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3DM116 | 60 mm | 11.6 W | $129.00 | 16 in stock | View | |
| LS-3DM175 | 116 mm | 12 W | $259.00 | 19 in stock | View | |
| LS-3DM198 | 138 mm | 21.2 W | $319.00 | 14 in stock | View | |
| LS-3DM260 | 193 mm | 28.8 W | $509.00 | 15 in stock | View |
