Dome lights · 7 models · from $119.00

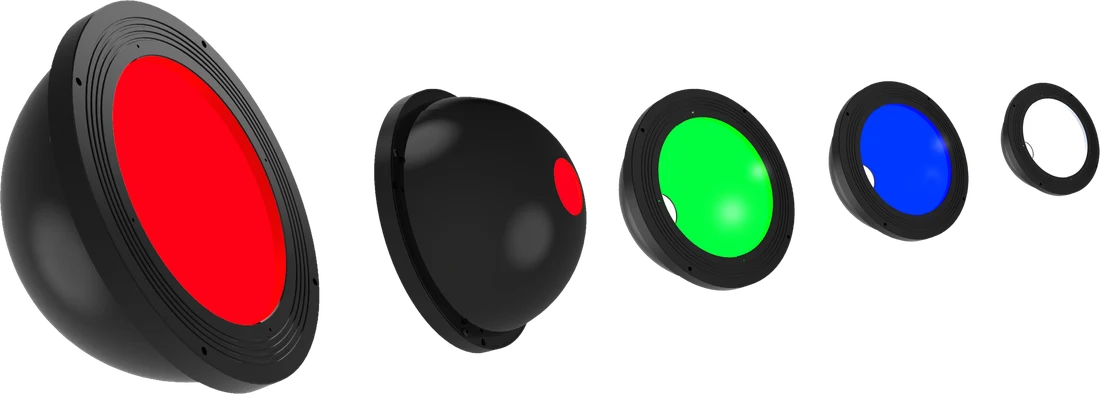

Dome light (SD series)
The Dome light (SD series) is a range of 7 dome lights from LumaSpec Vision, from $119.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 44 mm OD, 79 mm OD, 116 mm OD, 134 mm OD, 171 mm OD, 196 mm OD, 260 mm OD |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Excellent shadowless-free effect.
- Large illumination area.
- High uniformity.
Typical uses
- Reflective surface inspection
- Surface irregularity detection
- Food/drug appearance check
- Cigarette box/packaging print inspection
- Character check on rough button surfaces
- Food characters
All 7 models in the Dome light (SD series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SD-44 | 44 mm OD | 2 W | $119.00 | 13 in stock | View | |
| LS-SD-70 | 79 mm OD | 3 W | $199.00 | 15 in stock | View | |
| LS-SD-100 | 116 mm OD | 12 W | $309.00 | 15 in stock | View | |
| LS-SD-120 | 134 mm OD | 15 W | $369.00 | 16 in stock | View | |
| LS-SD-150 | 171 mm OD | 21 W | $519.00 | 12 in stock | View | |
| LS-SD-180 | 196 mm OD | 28 W | $629.00 | 15 in stock | View | |
| LS-SD-250 | 260 mm OD | 38 W | $969.00 | 11 in stock | View |
