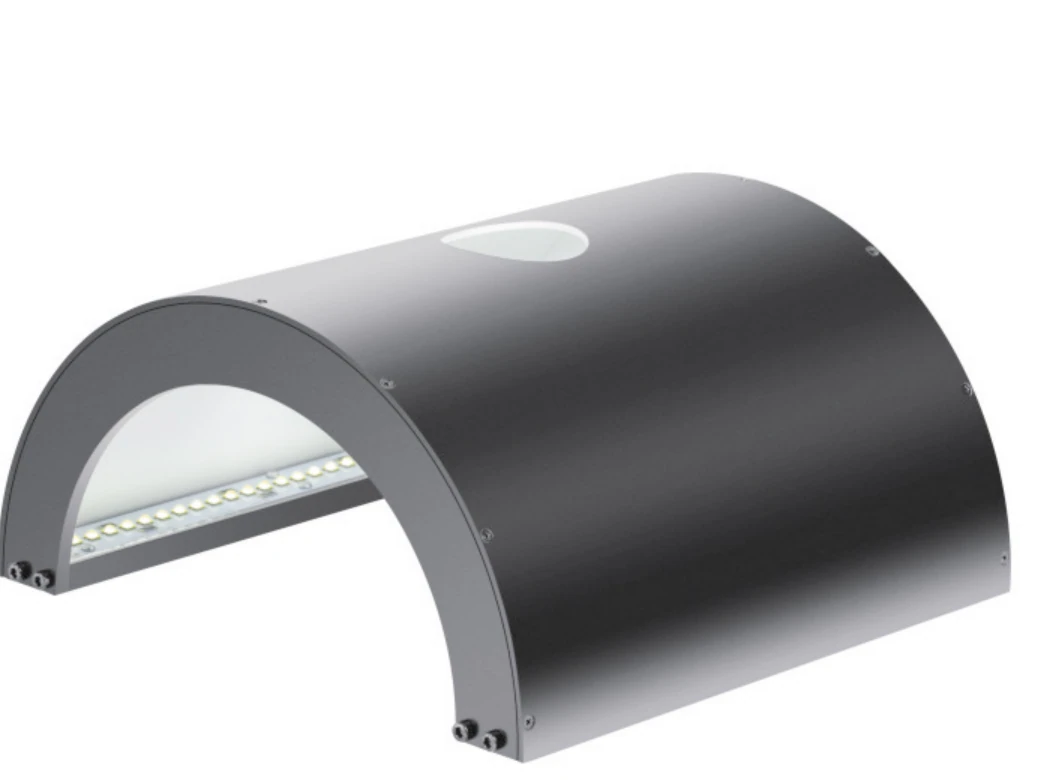

150 x 170 mm Arch light source (ARS series) (LS-ARS200180-W)
Model LS-ARS200180-W
Arch-shaped light source: the arch material reflects the light diffusely so the illumination angle covers 180 degrees; a special diffusing material spreads the light evenly and eliminates interference from uneven surfaces and reflections.
Features
- Light output by diffuse reflection from the arch-shaped material; angle covers 180 degrees
- Special diffusing material distributes the light evenly
- Eliminates interference from uneven surfaces and reflections
Specifications
| Model | LS-ARS200180-W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Power (W) | 28 |
| Emitting area (mm) | 150 x 170 |
| Outer length (mm) | 200 |
| Outer width (mm) | 180 |
| Outer height (mm) | 100 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Camera hole (drawing) | dia. 40 through hole |
| Cable (drawing) | 2 x 500 mm |
| Mounting (drawing) | 2 x 4-M4 depth 5 |
| Shipping weight | 1.65 kg |
Applications
- Cylinder surface defect inspection
- Battery cell edge crush inspection
- Character inspection on electrical appliance exteriors
- PCB substrate surface inspection
- Type-C curved surface damage inspection
- Lithium battery arc surface damage inspection
- Metal cylinder surface defect inspection
- Phone housing edge scratch inspection
- Smooth cylindrical hardware surface defect inspection
