Telecentric lenses

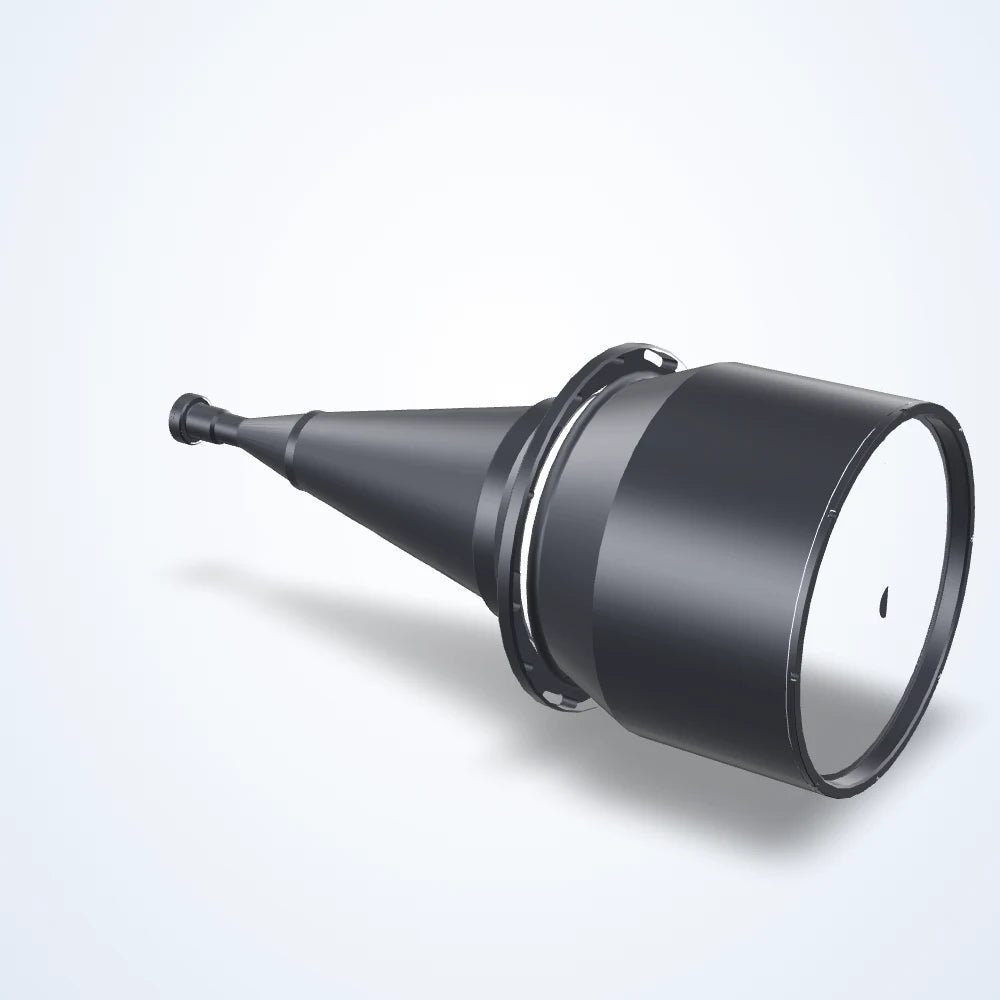

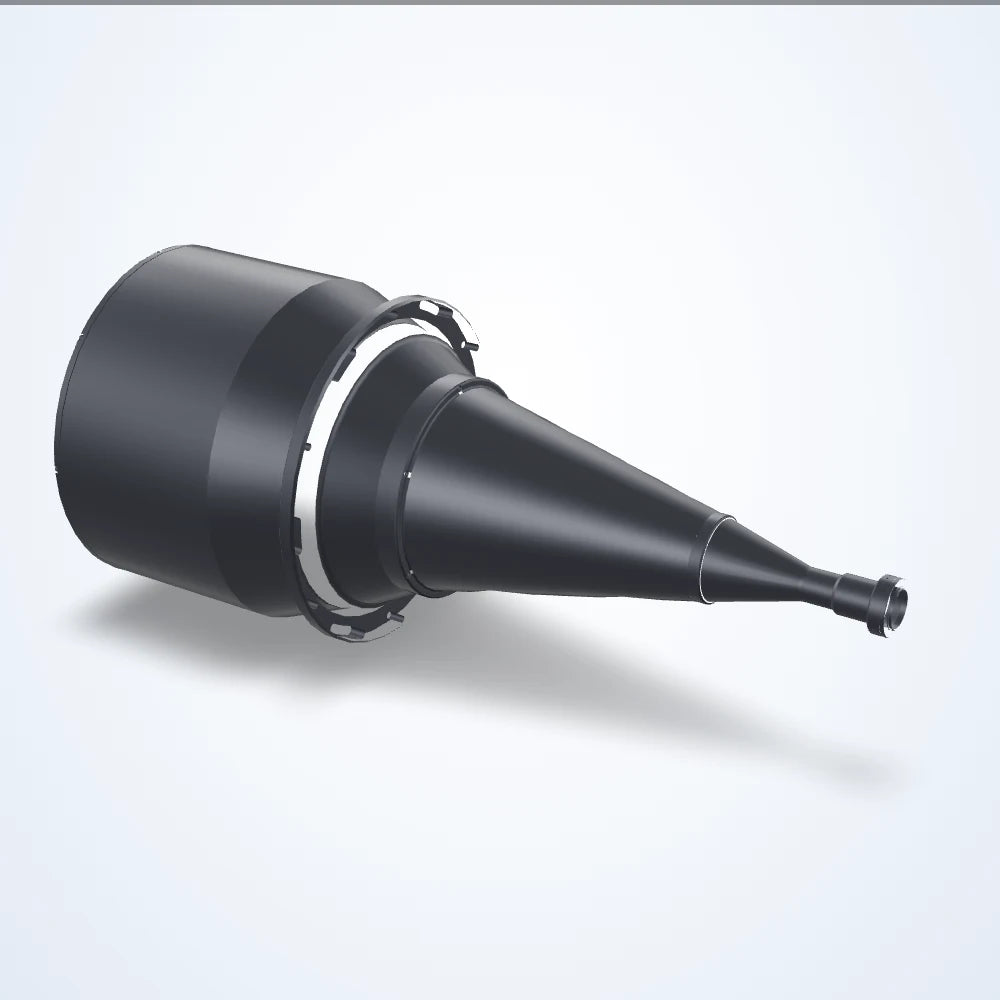

0.075× telecentric lens, APS-C, F-mount (LS-TCL-0134)
Model LS-TCL-0134
- Magnification0.075×
- MountF-mount
- SensorAPS-C
- Working distance500 mm
- Resolution68 μm
$56,219.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 500 mm; depth of field 117.3 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0134 |
|---|---|
| 4/3″ IMX367 | 203.87 x 204 mm |
| 4/3″ IMX387 | 251.60 x 141.87 mm |
| Aps-c IMX342 | 298.13 x 223.6 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 382.27 mm |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.075× |
|---|---|
| Working distance | 500 mm |
| Depth of field | 117.3 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.1 |
| Filter thread | No Filter Threads |
| Image circle | 28 mm |
| Telecentricity maximum | 0.15° |
| Telecentricity typical | < 0.09° |
Sensor and imaging
| Sensor format | APS-C |
|---|---|
| Resolution (pixel size) | 68 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | F-mount |
|---|---|

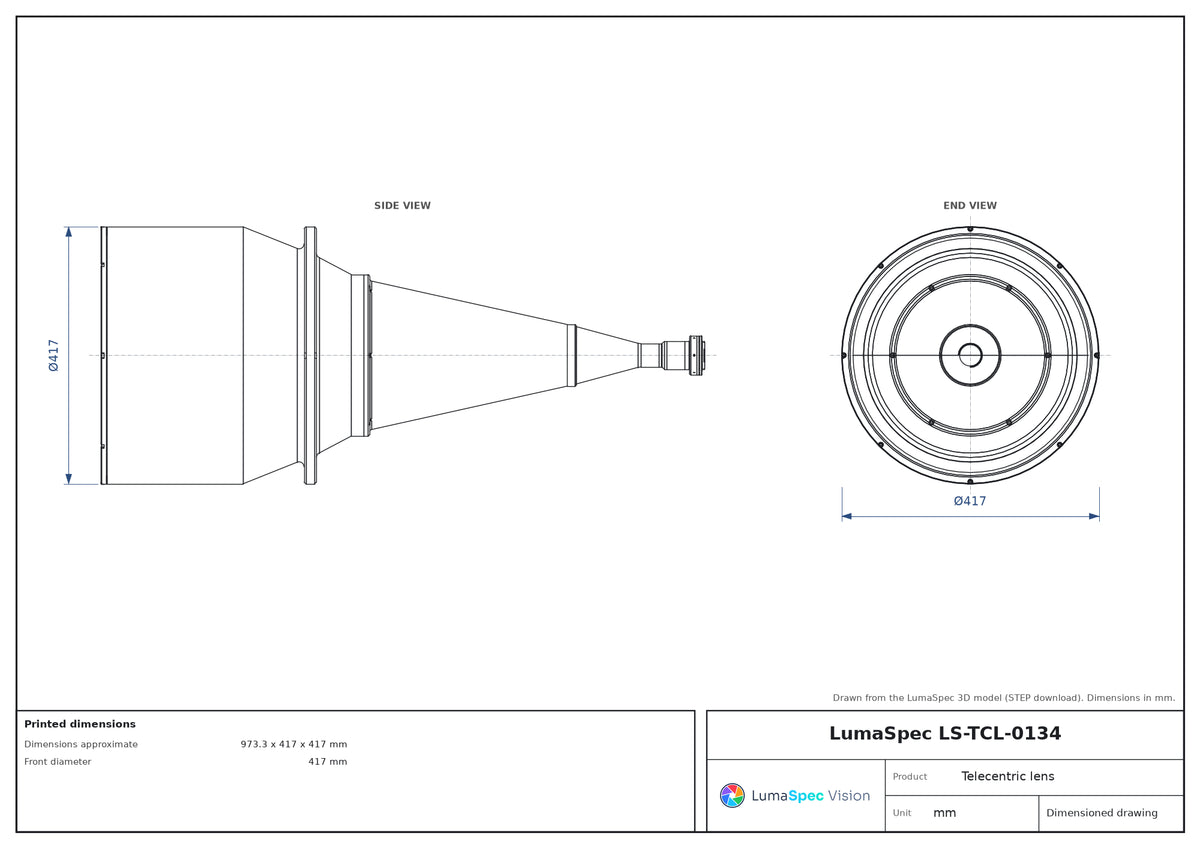

| Dimensions approximate | 973.3 x 417 x 417 mm |
| Front diameter | 417 mm |
| Weight | 38809 Grams |
