Telecentric lenses

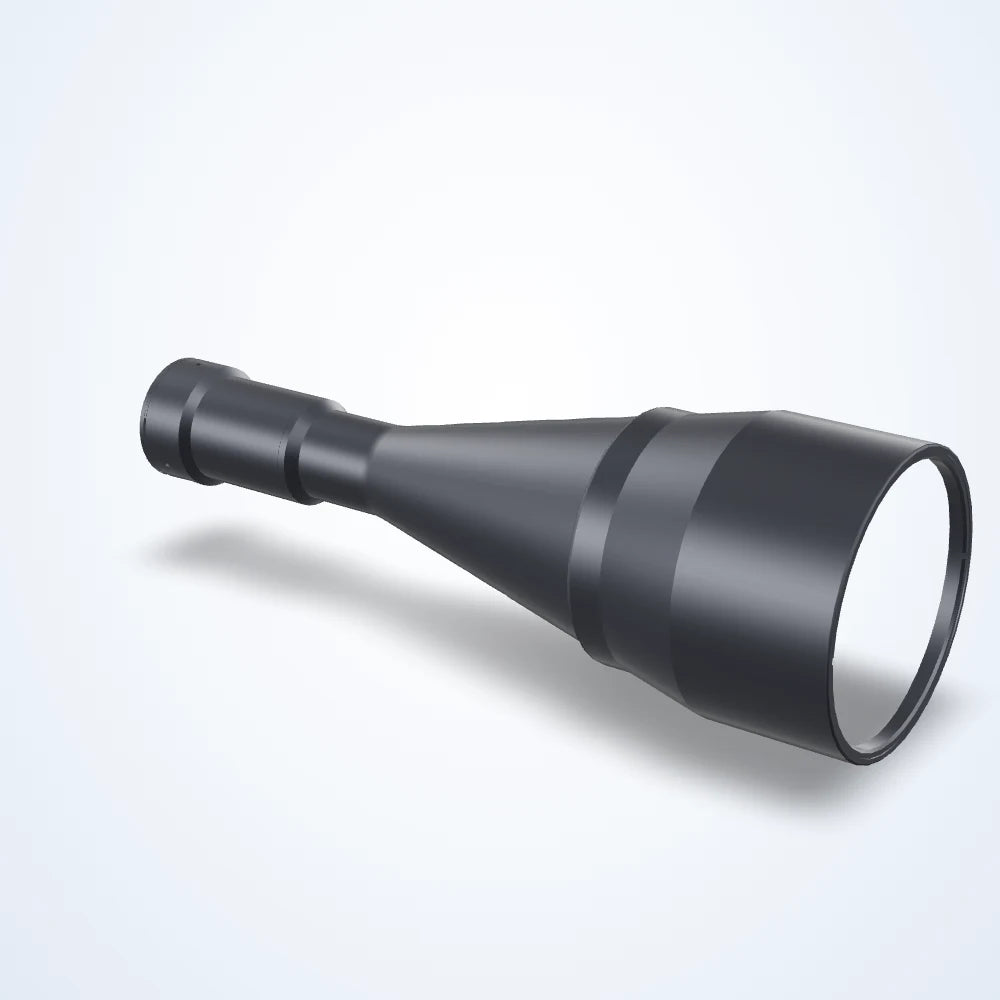

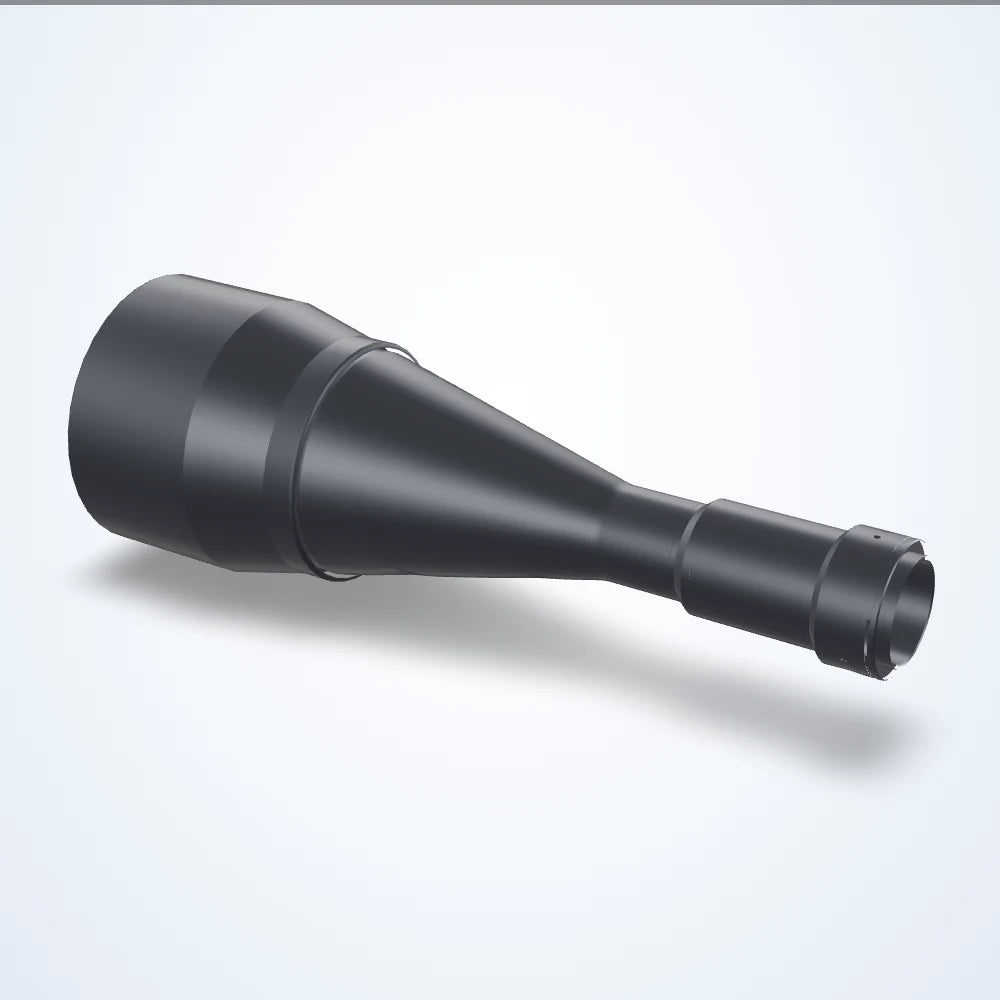

0.281× telecentric lens, APS-C, M42-mount (LS-TCL-0123)
Model LS-TCL-0123
- Magnification0.281×
- MountM42
- SensorAPS-C
- Working distance226.8 mm
- Resolution18 μm
$5,549.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.8 mm; depth of field 8.4 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0123 |
|---|---|
| 4/3″ IMX367 | 54.41 x 54.45 mm |
| 4/3″ IMX387 | 67.15 x 37.86 mm |
| Aps-c IMX342 | 79.57 x 59.68 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 102.03 mm |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.281× |
|---|---|
| Working distance | 226.8 mm |
| Depth of field | 8.4 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 28 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.03° |
Sensor and imaging
| Sensor format | APS-C |
|---|---|
| Resolution (pixel size) | 18 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | M42-mount |
|---|---|

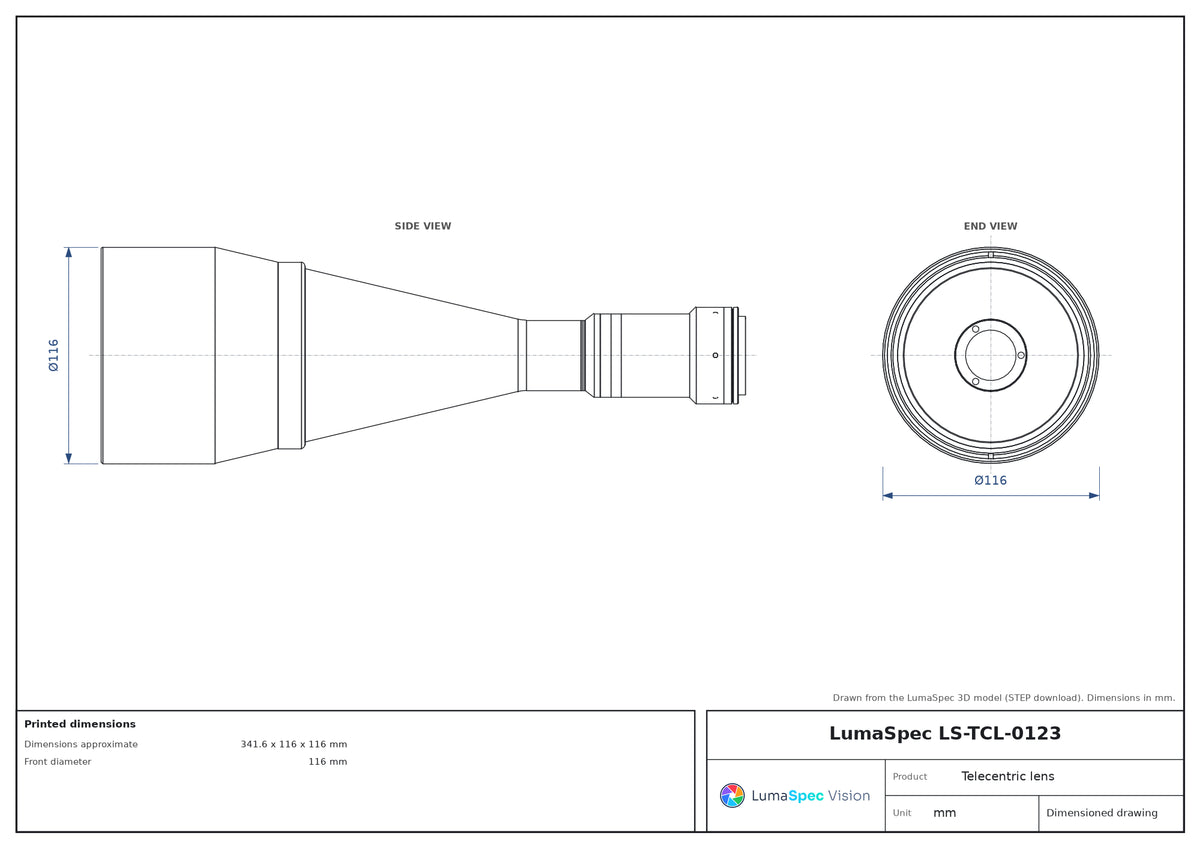

| Dimensions approximate | 341.6 x 116 x 116 mm |
| Front diameter | 116 mm |
| Weight | 1582 Grams |
