0.469× telecentric lens, APS-C, F-mount (LS-TCL-0116)

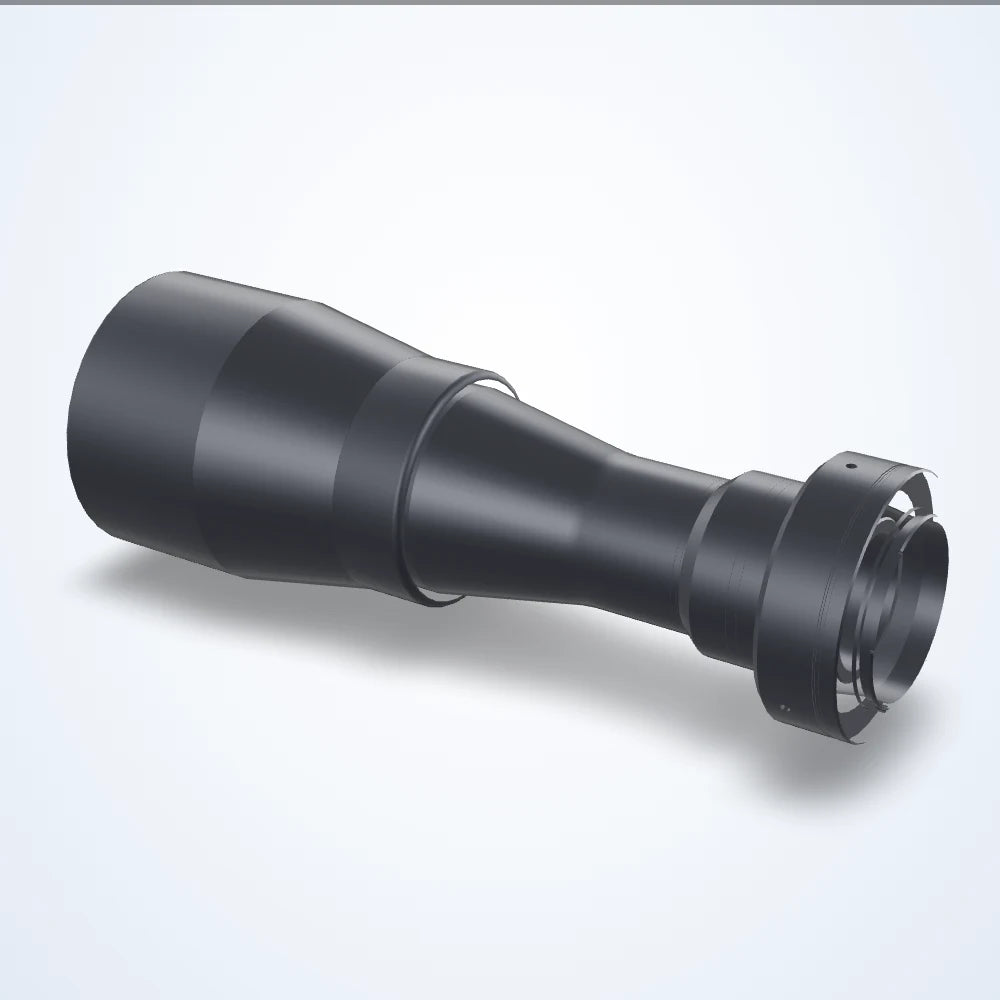

  • 0.469× telecentric lens, APS-C, F-mount (LS-TCL-0116)

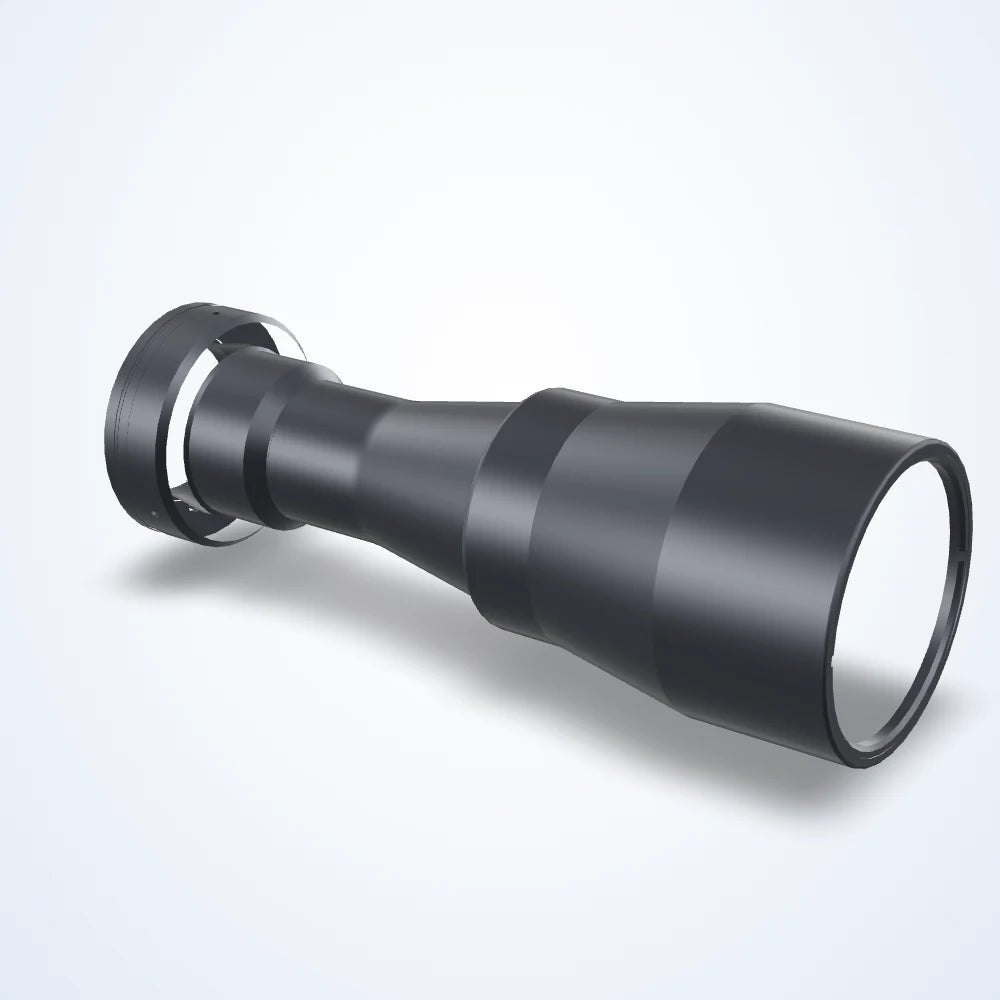

  • 0.469× telecentric lens, APS-C, F-mount (LS-TCL-0116) - view 2

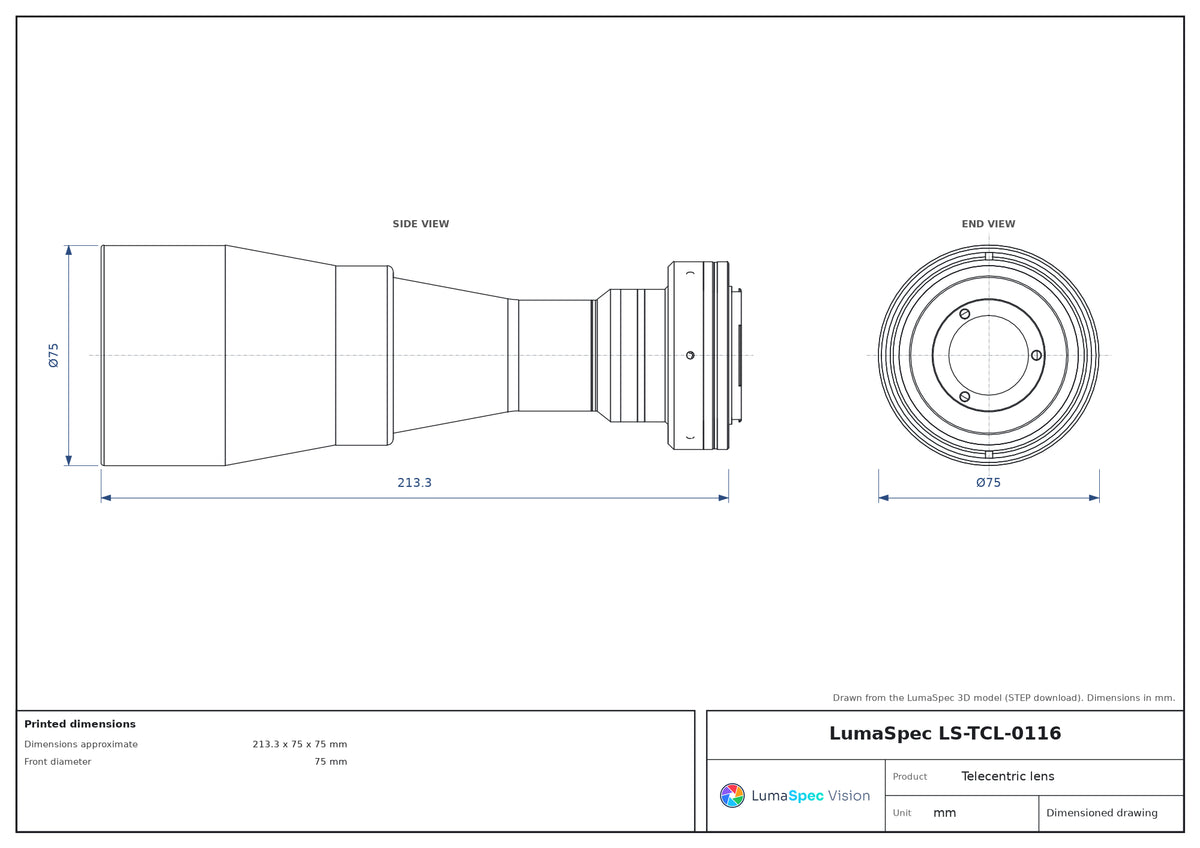

  • LS-TCL-0116 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.469× telecentric lens, APS-C, F-mount (LS-TCL-0116)

Model LS-TCL-0116

  • Magnification0.469×
  • MountF-mount
  • SensorAPS-C
  • Working distance132.9 mm
  • Resolution11 μm
$4,379.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 3 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0116
4/3″ IMX36732.6 x 32.62 mm
4/3″ IMX38740.23 x 22.69 mm
Aps-c IMX34247.68 x 35.76 mm
Lens typeTelecentric
Line 4k-7µm61.13 mm
Working ƒ/nf/8

Optics

Magnification0.469×
Working distance132.9 mm
Depth of field3 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Image circle28 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.02°

Sensor and imaging

Sensor formatAPS-C
Resolution (pixel size)11 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate213.3 x 75 x 75 mm
Front diameter75 mm
Weight863 Grams
