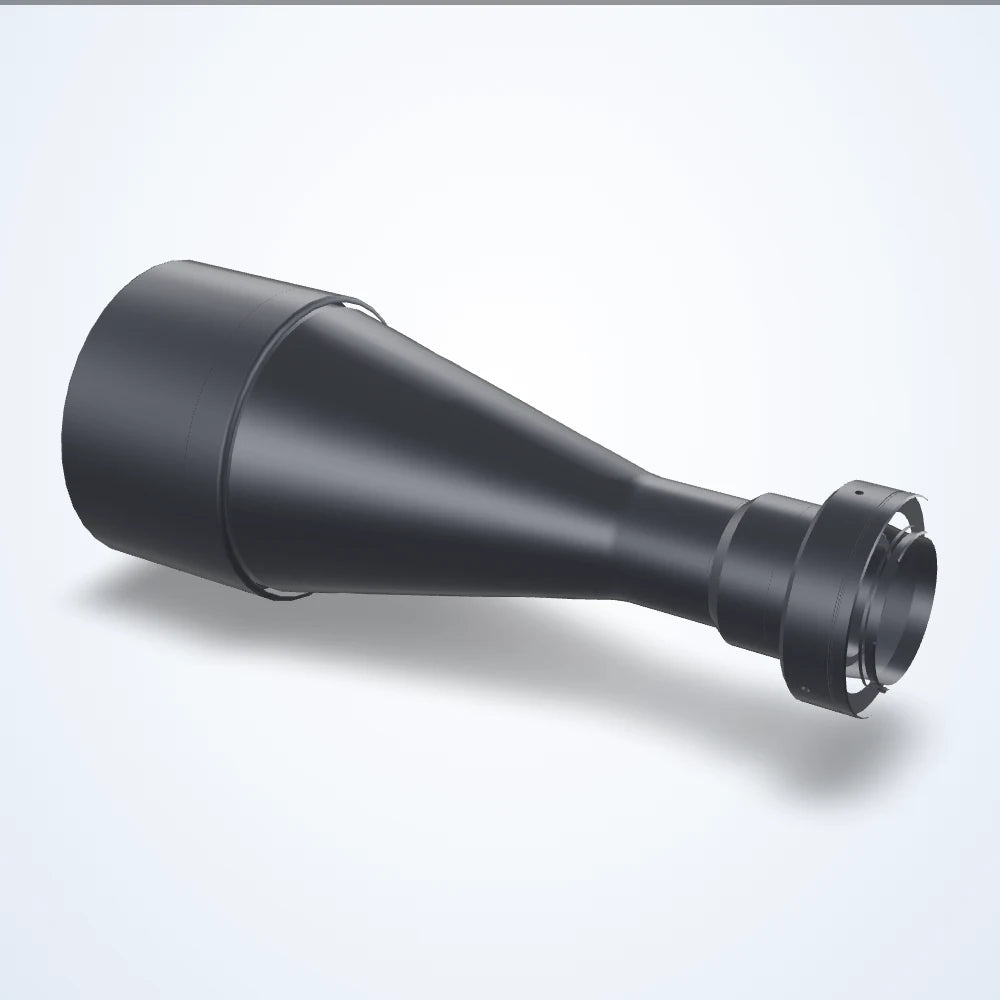

  • 0.351× telecentric lens, APS-C, F-mount (LS-TCL-0120)

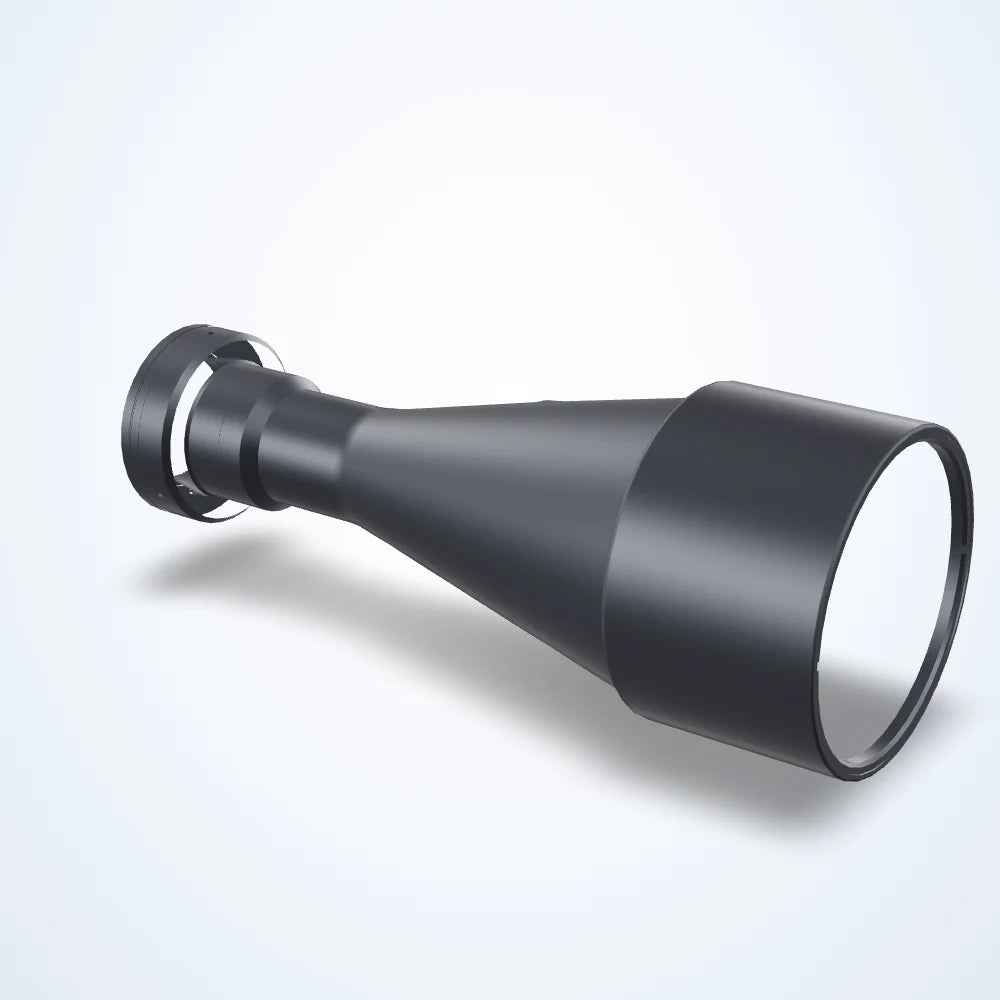

  • 0.351× telecentric lens, APS-C, F-mount (LS-TCL-0120) - view 2

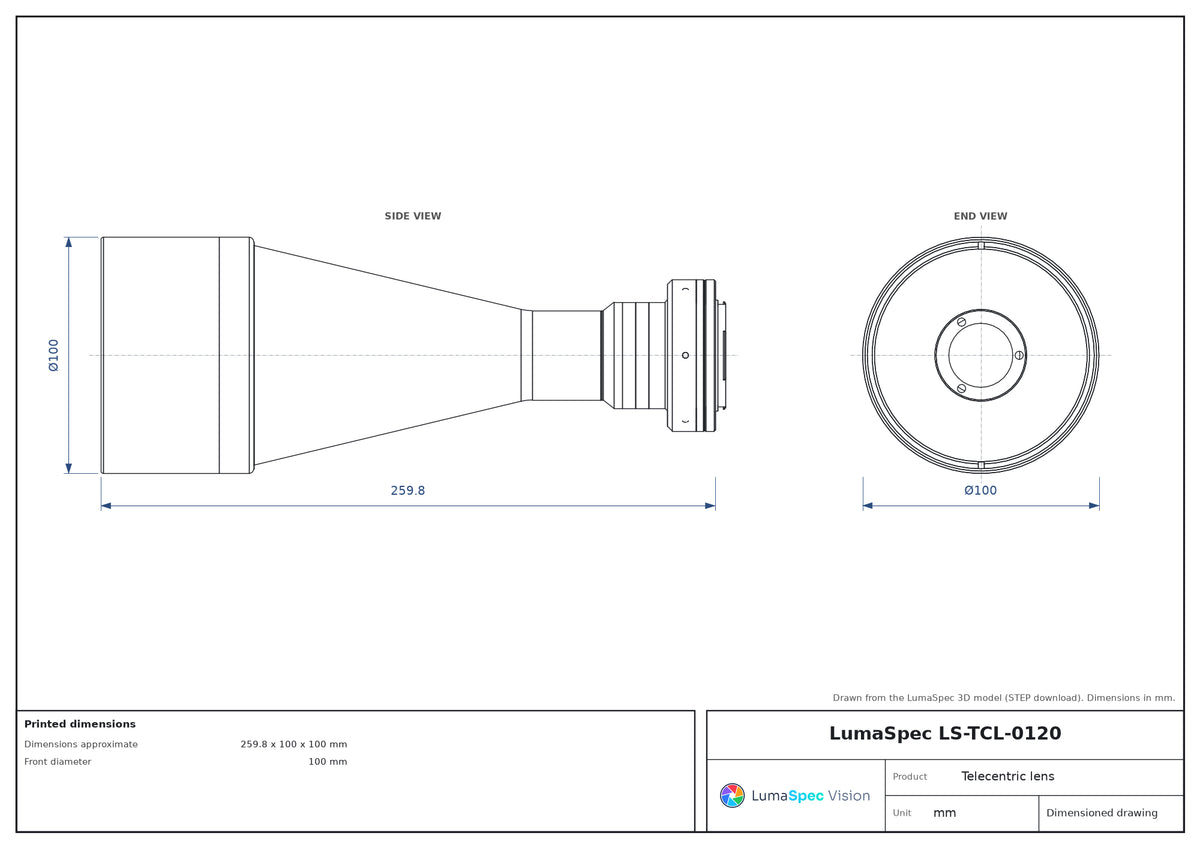

  • LS-TCL-0120 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.351× telecentric lens, APS-C, F-mount (LS-TCL-0120)

Model LS-TCL-0120

  • Magnification0.351×
  • MountF-mount
  • SensorAPS-C
  • Working distance181.9 mm
  • Resolution14 μm
$5,549.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 5.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0120
4/3″ IMX36743.56 x 43.59 mm
4/3″ IMX38753.76 x 30.31 mm
Aps-c IMX34263.70 x 47.78 mm
Lens typeTelecentric
Line 4k-7µm81.68 mm
Working ƒ/nf/8

Optics

Magnification0.351×
Working distance181.9 mm
Depth of field5.4 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle28 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-C
Resolution (pixel size)14 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate259.8 x 100 x 100 mm
Front diameter100 mm
Weight1191 Grams
