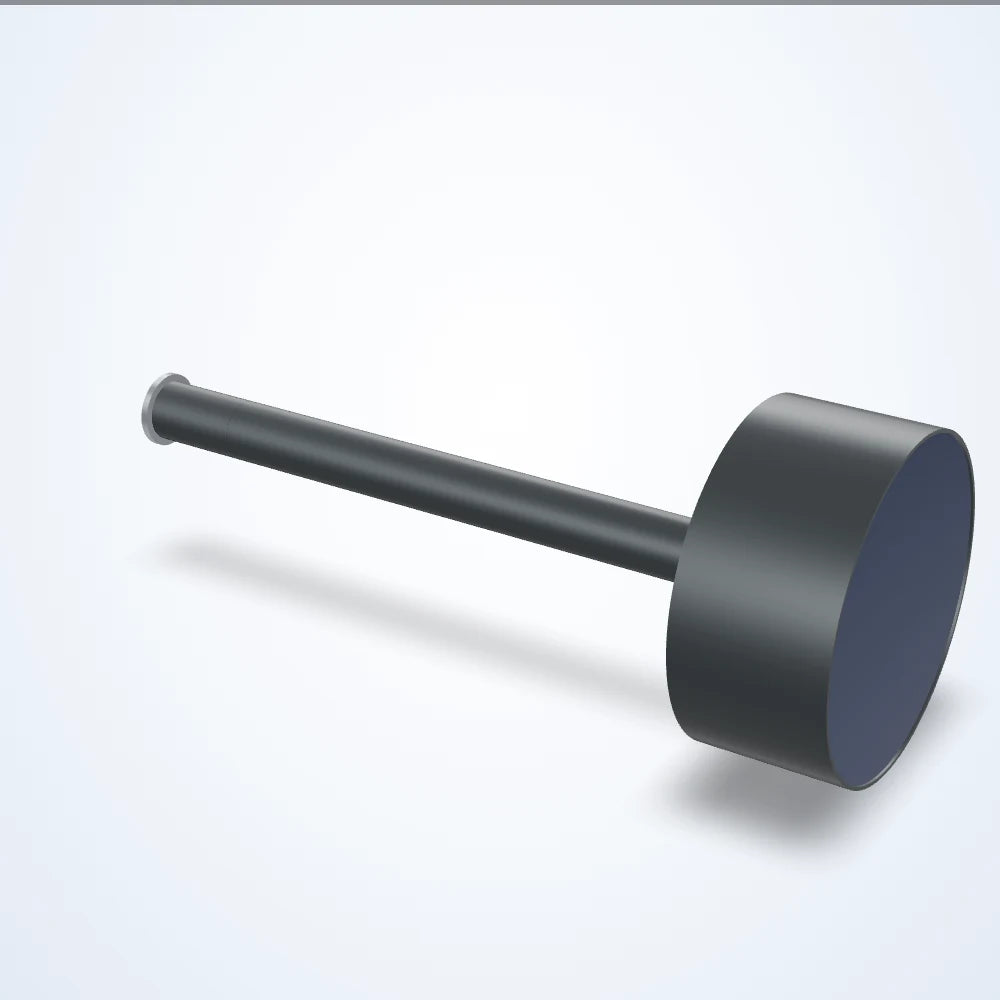

  • 0.156× telecentric lens, APS-C, F-mount (LS-TCL-0128)

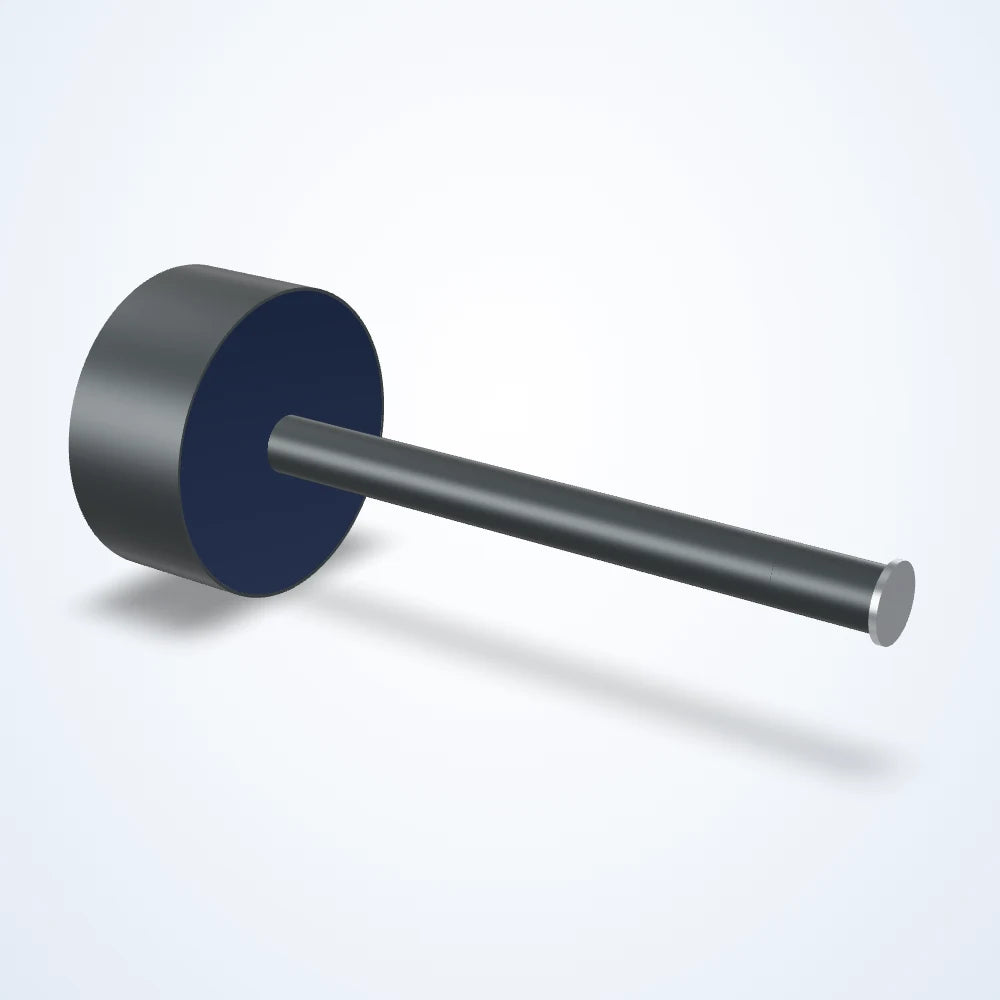

  • 0.156× telecentric lens, APS-C, F-mount (LS-TCL-0128) - view 2

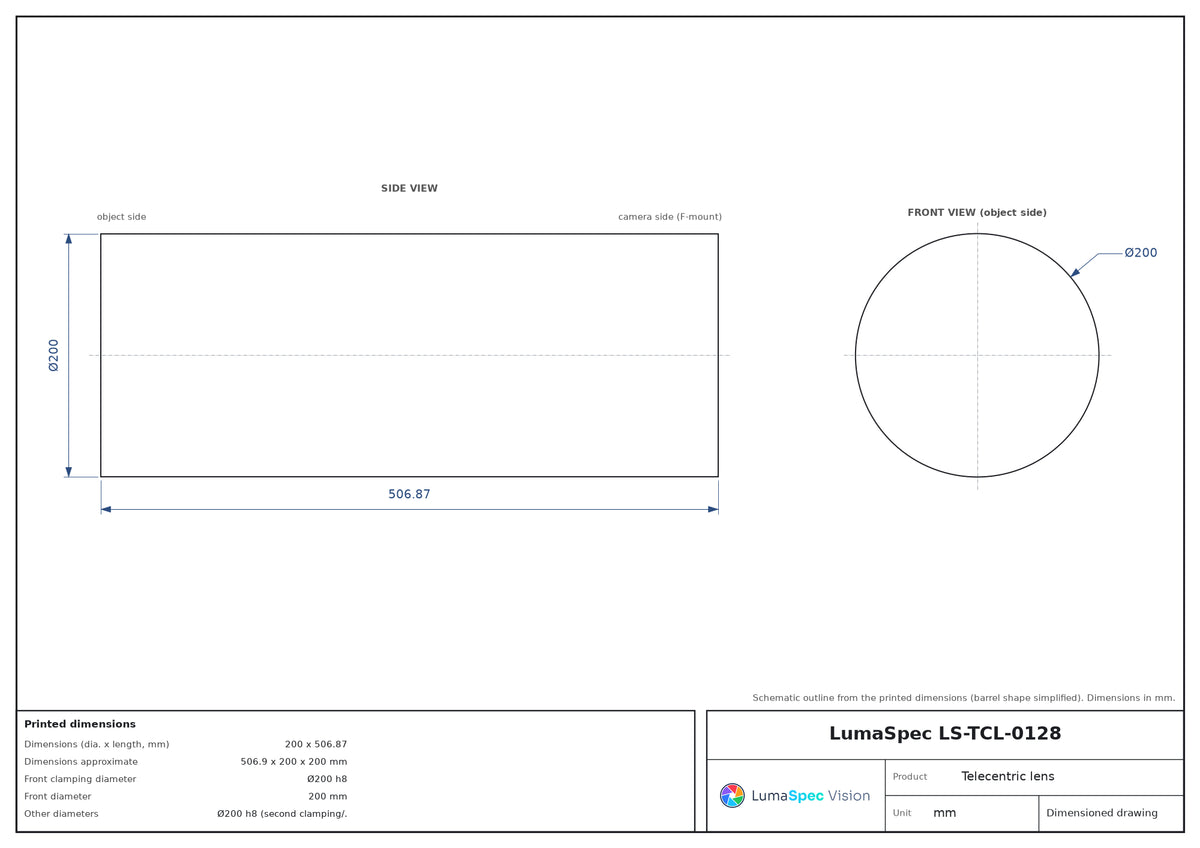

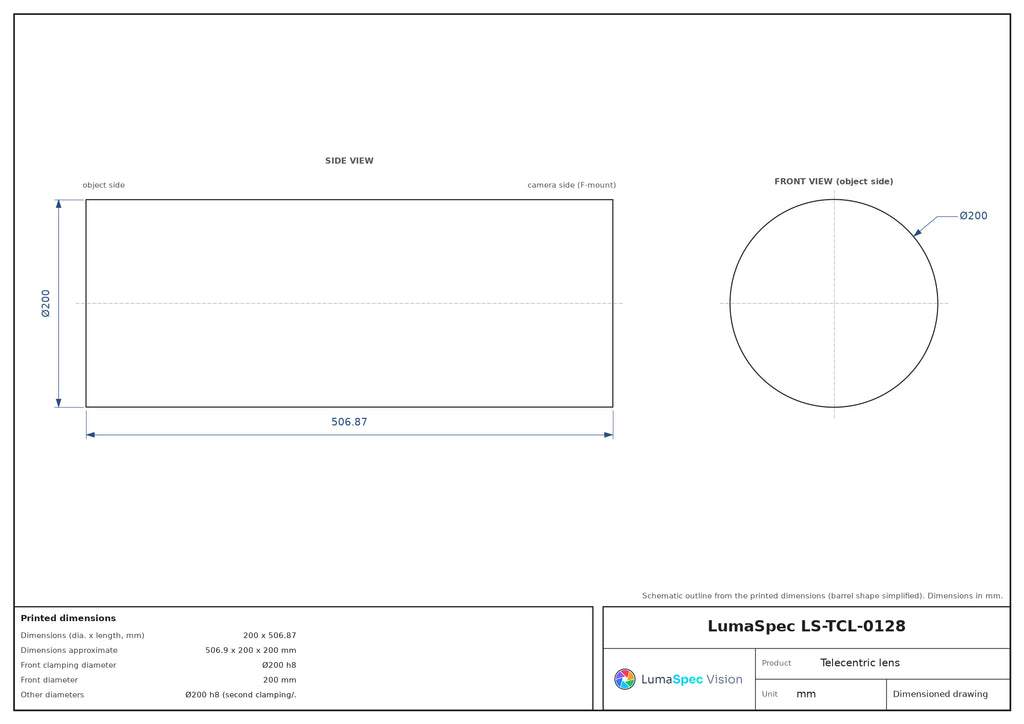

  • LS-TCL-0128 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.156× telecentric lens, APS-C, F-mount (LS-TCL-0128)

Model LS-TCL-0128

  • MountF-mount
  • Sensor1.75"
  • Resolution33 μm
  • Sensor format1.75"
$8,359.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0128
4/3″ IMX36798.01 x 98.08 mm
4/3″ IMX387120.96 x 68.21 mm
Aps-c IMX342143.33 x 107.5 mm
Flange distance46.5 mm (F-mount)
Front flange holesM5 x4 and Ø8 x4 on Ø180 circle
Lens typeTelecentric
Line 4k-7µm183.78 mm
Phase adjustmentyes
Working ƒ/nf/8

Optics

Clear apertureØ186
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Image circle28 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.06°

Sensor and imaging

Resolution (pixel size)33 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions (dia. x length, mm)200 x 506.87
Dimensions approximate506.9 x 200 x 200 mm
Front clamping diameterØ200 h8
Front diameter200 mm
Other diametersØ200 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø64 (mount ring)
Rear protrusion behind mount4.3 mm
Weight (g)6022
