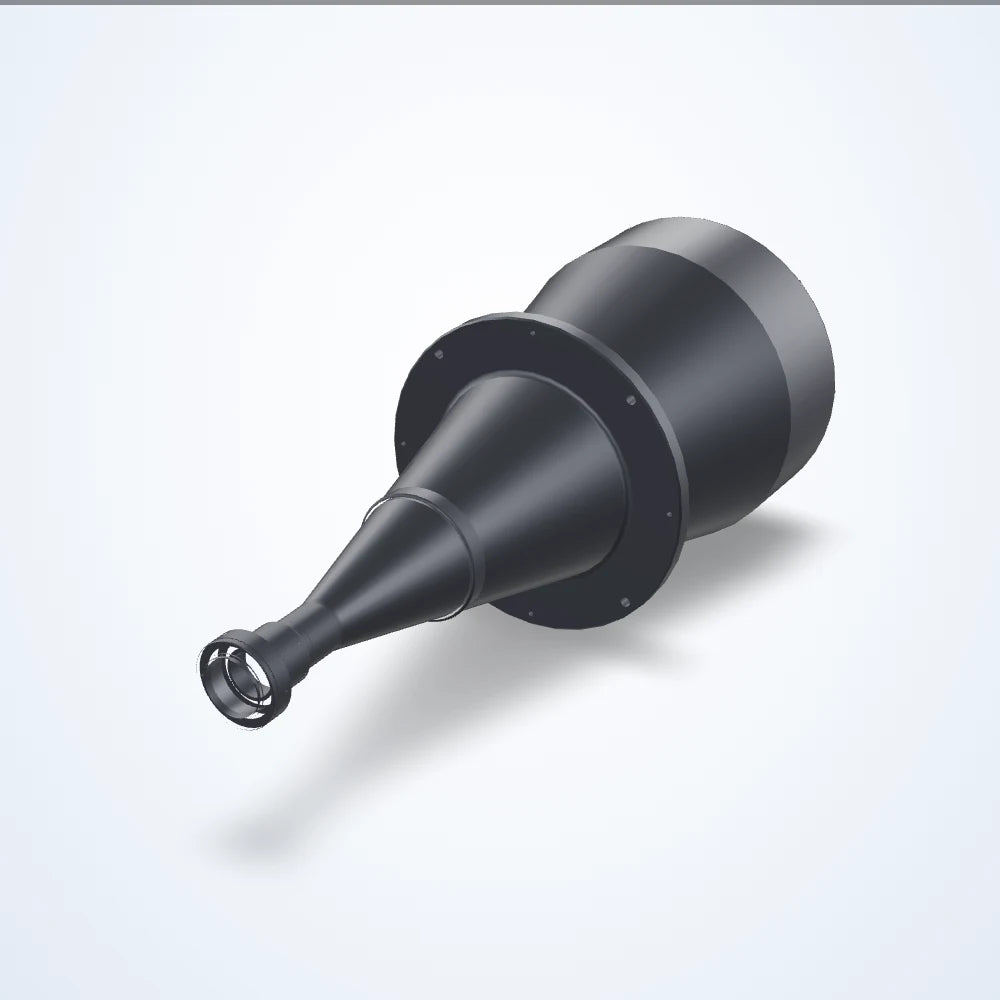

  • 0.117× telecentric lens, APS-C, F-mount (LS-TCL-0130)

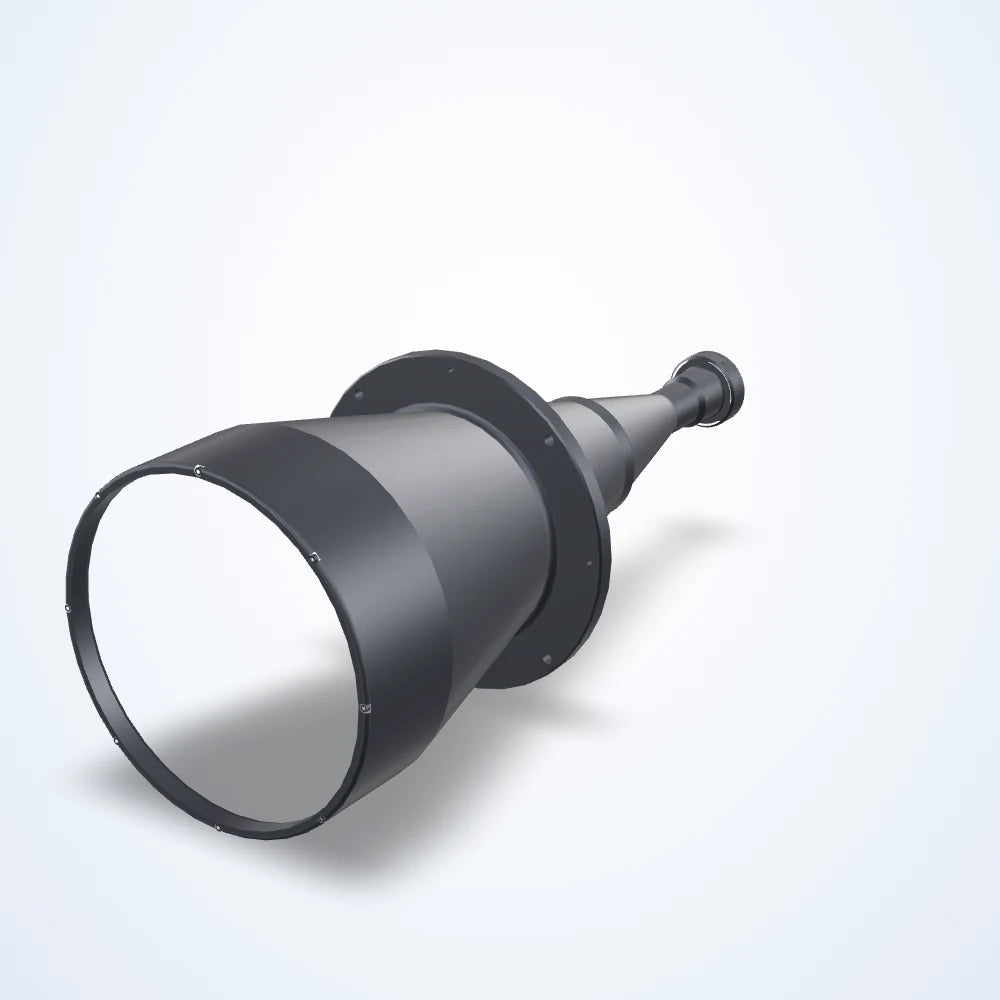

  • 0.117× telecentric lens, APS-C, F-mount (LS-TCL-0130) - view 2

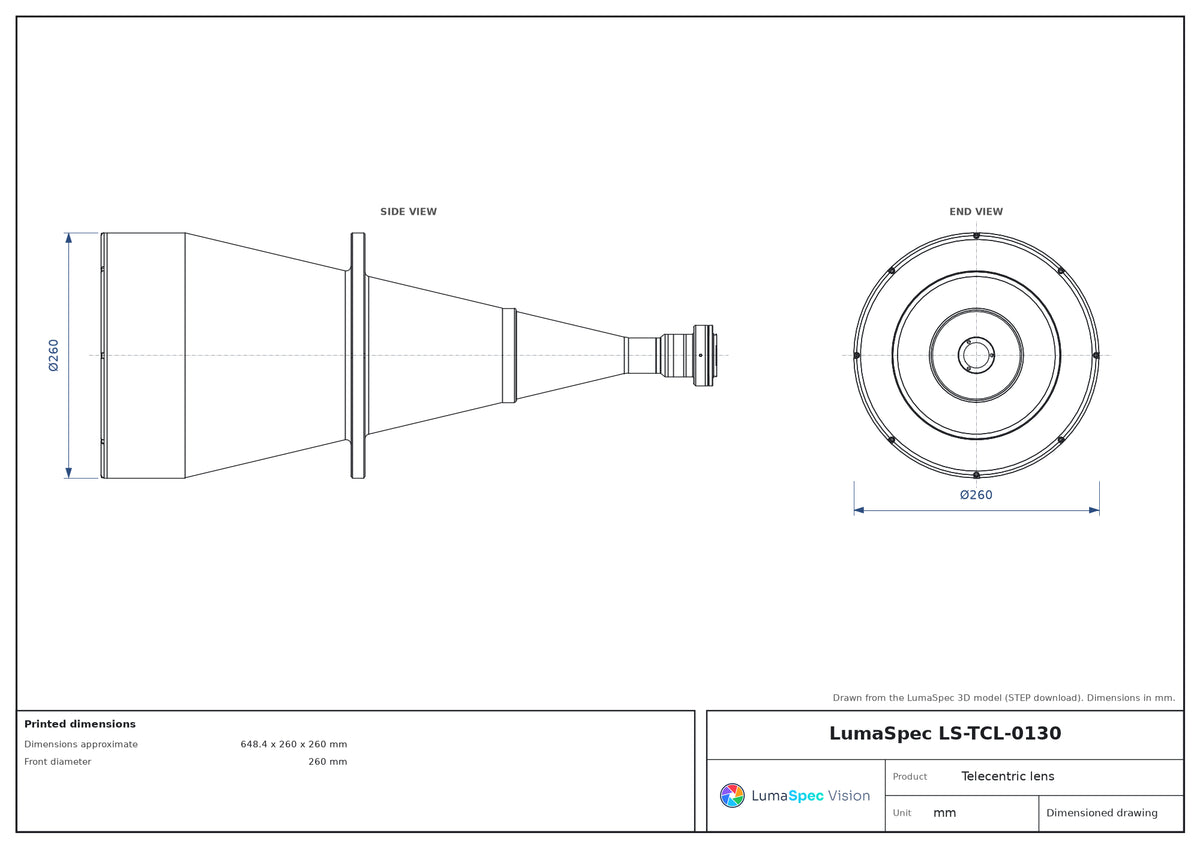

  • LS-TCL-0130 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.117× telecentric lens, APS-C, F-mount (LS-TCL-0130)

Model LS-TCL-0130

  • Magnification0.117×
  • MountF-mount
  • SensorAPS-C
  • Working distance527.6 mm
  • Resolution43 μm
$12,539.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 527.6 mm; depth of field 48.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0130
4/3″ IMX367130.68 x 130.77 mm
4/3″ IMX387161.28 x 90.94 mm
Aps-c IMX342191.11 x 143.33 mm
Lens typeTelecentric
Line 4k-7µm245.04 mm
Working ƒ/nf/8

Optics

Magnification0.117×
Working distance527.6 mm
Depth of field48.2 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.07
Filter threadNo Filter Threads
Image circle28 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-C
Resolution (pixel size)43 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate648.4 x 260 x 260 mm
Front diameter260 mm
Weight10075 Grams
