0.184× telecentric lens, APS-C, M42-mount (LS-TCL-0127)

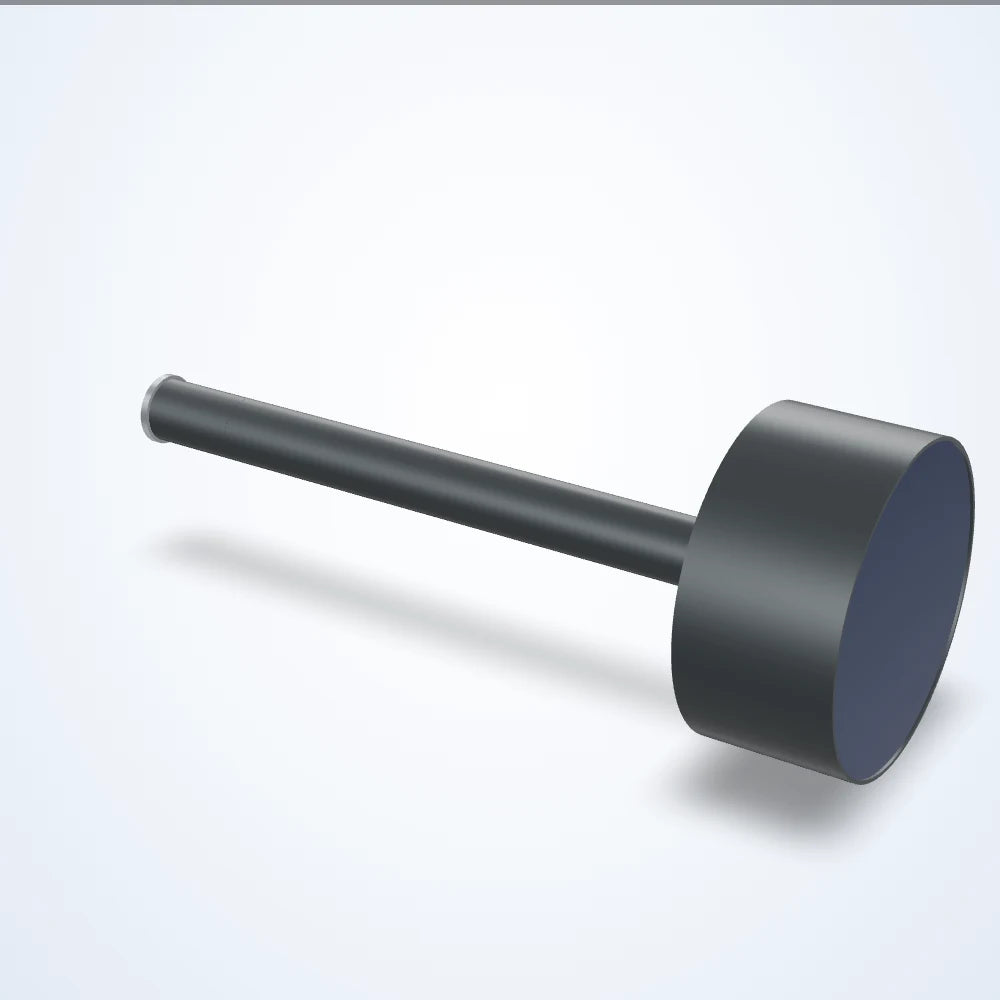

  • 0.184× telecentric lens, APS-C, M42-mount (LS-TCL-0127)

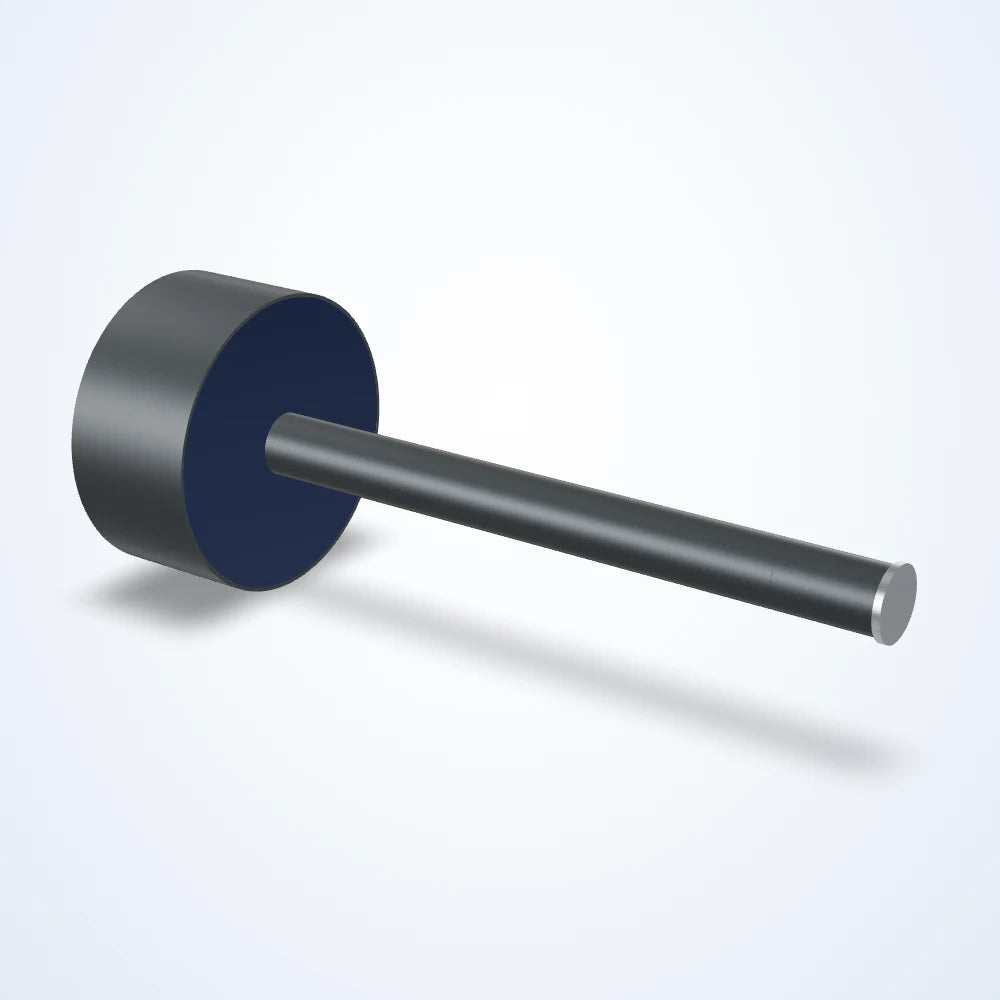

  • 0.184× telecentric lens, APS-C, M42-mount (LS-TCL-0127) - view 2

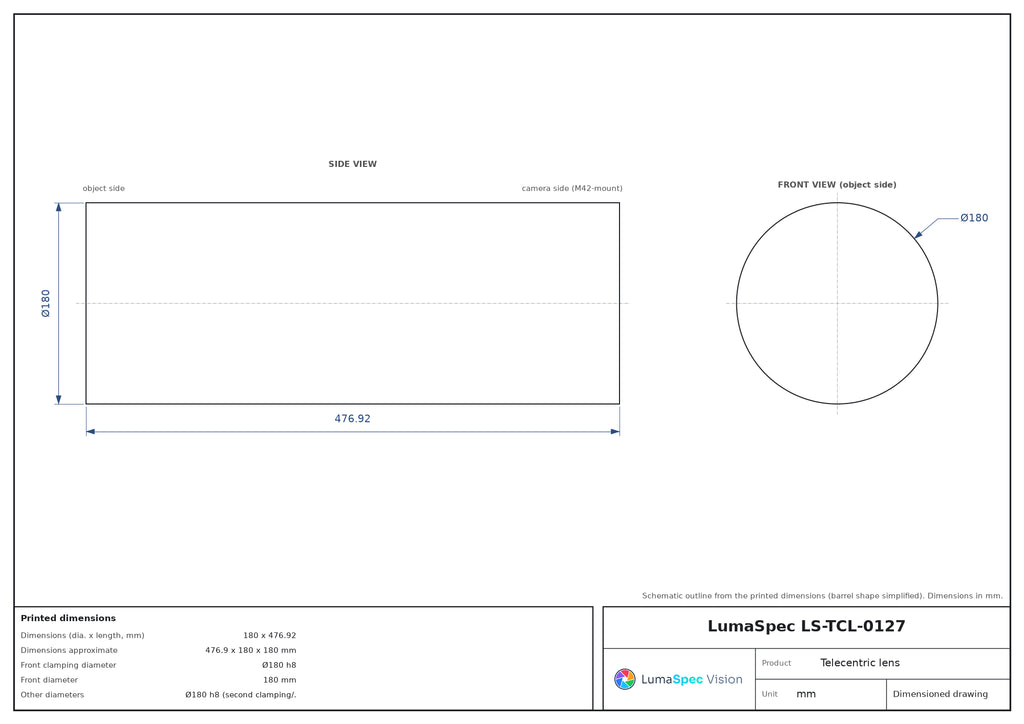

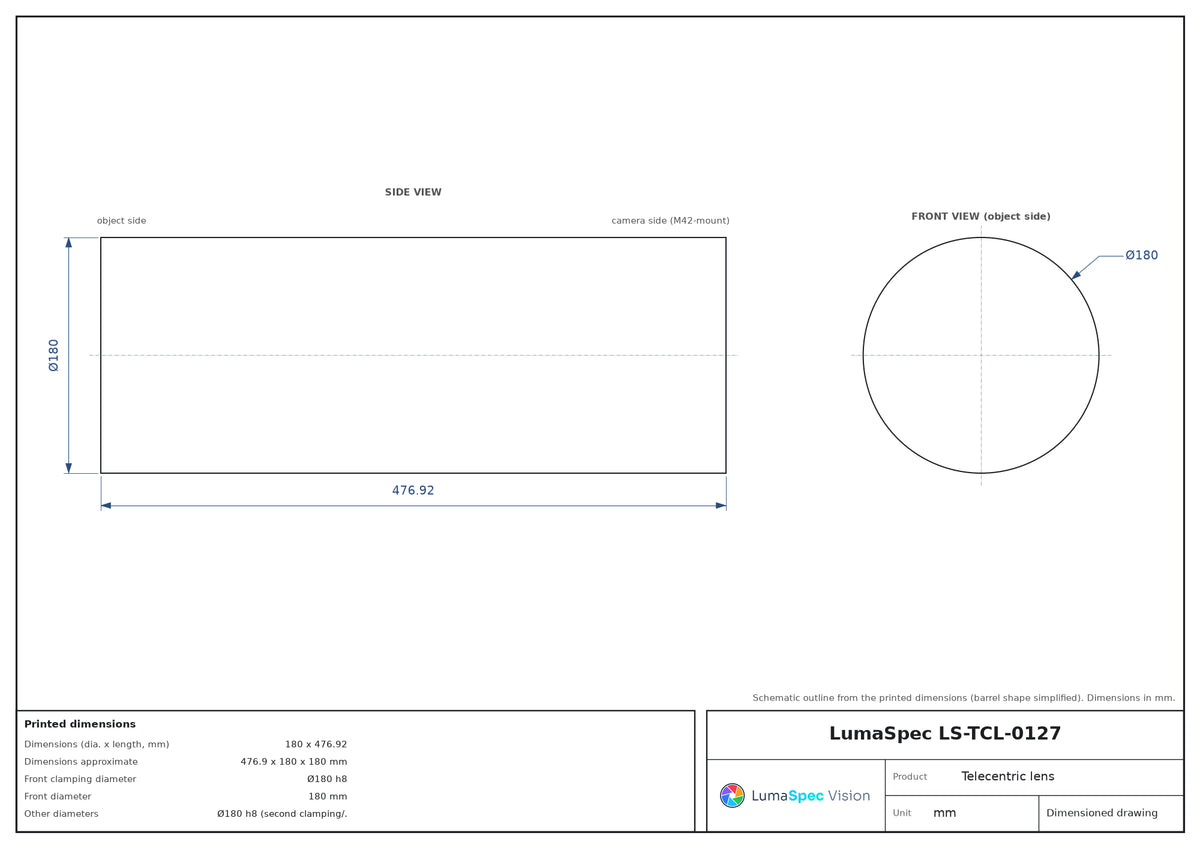

  • LS-TCL-0127 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.184× telecentric lens, APS-C, M42-mount (LS-TCL-0127)

Model LS-TCL-0127

  • MountM42
  • Sensor1.75"
  • Resolution28 μm
  • Sensor format1.75"
$6,959.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0127
4/3″ IMX36783.1 x 83.15 mm
4/3″ IMX387102.55 x 57.83 mm
Aps-c IMX342121.52 x 91.14 mm
Flange distance12 mm (Mount M42x1)
Front flange holesM5 x4 and Ø8 x4 on Ø165 circle
Lens typeTelecentric
Line 4k-7µm155.82 mm
Phase adjustmentyes
Working ƒ/nf/8

Optics

Clear apertureØ166
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.06
Image circle28 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.07°

Sensor and imaging

Resolution (pixel size)28 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions (dia. x length, mm)180 x 476.92
Dimensions approximate476.9 x 180 x 180 mm
Front clamping diameterØ180 h8
Front diameter180 mm
Other diametersØ180 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø52 (mount ring)
Rear protrusion behind mount4.03 mm
Weight (g)4840
